Texas Instruments

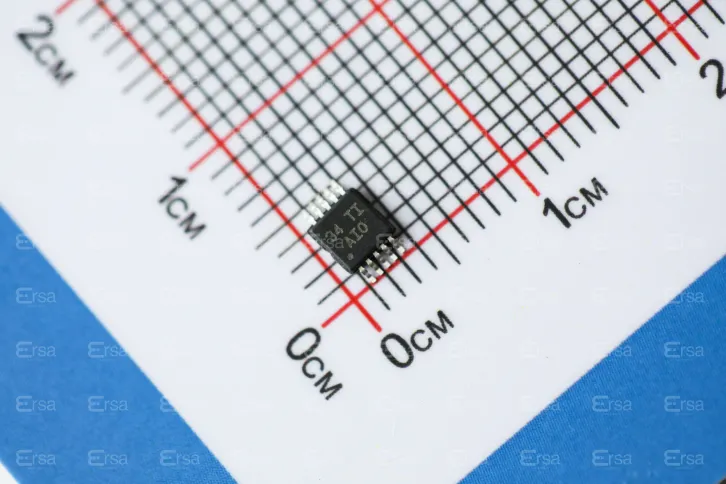

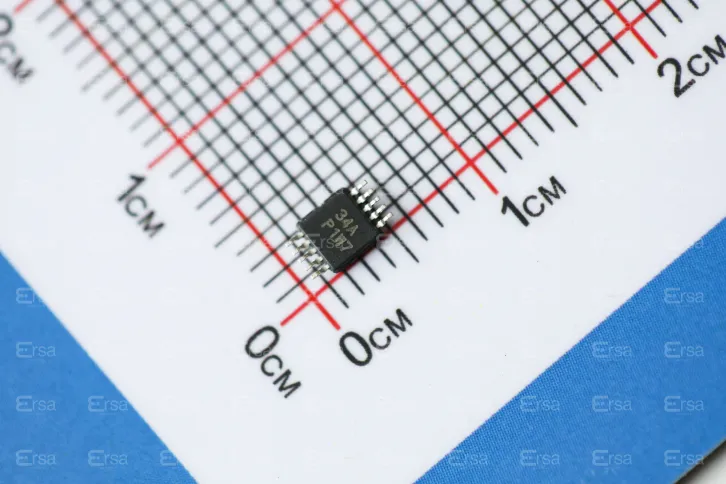

TPS62007DGSR

DC Switching Voltage Regulators

The Texas Instruments TPS62007DGSR is a highly-integrated step-down converter (buck regulator) that is designed to provide efficient and stable power conversion for a wide range of applications. Here is a description of the model, its features, and potential applications:

Model Description:
The TPS62007DGSR is a member of Texas Instruments' wide range of power management solutions. It is a step-down converter that can accept a wide input voltage range and provide a regulated output voltage. The device is available in a compact 10-lead DFN (Dual Flat No-Leads) package, making it suitable for space-constrained applications.

Features:

1. Input Voltage Range: The TPS62007DGSR can handle a wide input voltage range, typically from 3V to 24V, making it versatile for different power source configurations.
2. Output Voltage Regulation: It provides a stable and regulated output voltage, which can be adjusted according to the application requirements.
3. High Efficiency: The device is designed for high efficiency, which is crucial for battery-powered applications to extend the battery life.
4. Light Load Efficiency: It maintains high efficiency even under light load conditions, which is important for applications that have varying power demands.
5. Integrated Switch: The device integrates the power switch, reducing the number of external components required.
6. Protection Features: It includes over-current protection, over-voltage protection, and thermal shutdown to protect the device and the system from damage.
7. Small Form Factor: The compact DFN package allows for easy integration into small form factor designs.

Applications:

1. Portable Electronics: Due to its high efficiency and small size, the TPS62007DGSR is well-suited for portable electronic devices like smartphones, tablets, and wearables.
2. IoT Devices: Internet of Things (IoT) devices often require efficient power management, making this device a good fit for such applications.
3. Medical Devices: The TPS62007DGSR can be used in battery-powered medical devices where efficiency and reliability are critical.
4. Industrial Equipment: In industrial settings, where reliability and efficiency are important, this device can provide stable power conversion.
5. Automotive Applications: It can be used in various automotive applications that require efficient DC-DC conversion.

The TPS62007DGSR is a versatile and efficient power management solution that can be integrated into a wide range of electronic devices to provide stable and regulated power supply.

TPS62007DGSR Documents

Download datasheets and manufacturer documentation for TPS62007DGSR

Datasheets :

TPS6200x

Reference Design Library :

TPS62007EVM-168: 3.3V @ 600mA, 1.8 ~ 5.5V in

HTML Datasheet :

TPS6200x

PCN Design/Specification :

SOT23, VSSOP Cu Wire 28/Jun/2013       Copper Wire Revision C 24/Sep/2014
