Texas Instruments

TPS62097QWRGTRQ1

The TPS62097QWRGTRQ1 is a highly-integrated step-down (buck) converter from Texas Instruments. It is designed to provide efficient and compact power conversion for a wide range of applications. Here is a description of the device, its features, and potential applications:

Description:

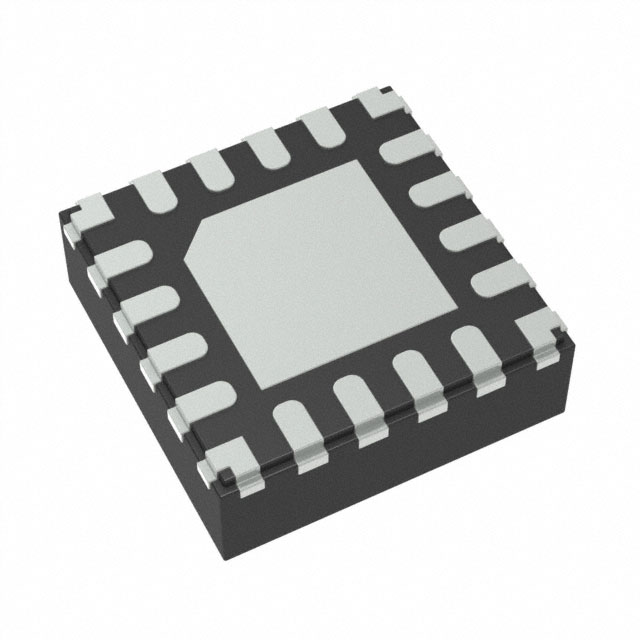

The TPS62097QWRGTRQ1 is a synchronous step-down converter that can operate with an input voltage range of 3V to 22V. It is capable of delivering an output voltage as low as 0.9V with a maximum output current of 3A. The device is available in a compact, thermally-optimized QFN package (QWR), making it suitable for space-constrained applications.

Features:

1. Input Voltage Range: 3V to 22V, making it suitable for various power sources, including single-cell lithium-ion batteries, dual-cell NiMH batteries, and even USB power sources.
2. Output Voltage: Adjustable from 0.9V to the input voltage, providing flexibility for different output requirements.
3. Output Current: Capable of delivering up to 3A of continuous output current, suitable for powering demanding loads.
4. Efficiency: High efficiency up to 95%, contributing to lower power consumption and reduced thermal dissipation requirements.
5. Synchronous Rectification: The use of synchronous rectification on both the high-side and low-side switches minimizes conduction losses and improves efficiency.
6. Integrated Components: The device integrates a power MOSFET, inductor, and capacitor, reducing the number of external components required for a complete solution.
7. Protection Features: Includes over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown (TSD) to ensure safe operation and prevent damage in case of faults.
8. Small Form Factor: The QFN package is compact, making it suitable for applications with limited space.
9. Wide Operating Temperature Range: Designed to operate over a wide temperature range of -40°C to 125°C, making it suitable for various environments.

Applications:

1. Portable Electronics: Powering mobile devices, smartphones, tablets, and wearables.
2. IoT Devices: Providing efficient power conversion for Internet of Things (IoT) devices, including sensors and smart home appliances.
3. Industrial Equipment: Powering various industrial equipment, such as motor controllers and control systems.
4. Medical Devices: Used in portable and wearable medical devices that require efficient and compact power solutions.
5. Consumer Electronics: Powering a wide range of consumer electronics, including cameras, GPS devices, and portable gaming consoles.
6. Automotive Applications: Suitable for powering infotainment systems, cameras, and other electronic modules in vehicles.

The TPS62097QWRGTRQ1 is a versatile and efficient step-down converter that can be used in a variety of applications where a compact, high-performance power solution is required. Its wide input voltage range, adjustable output voltage, and high efficiency make it a popular choice for designers looking to optimize power management in their systems.
