Texas Instruments

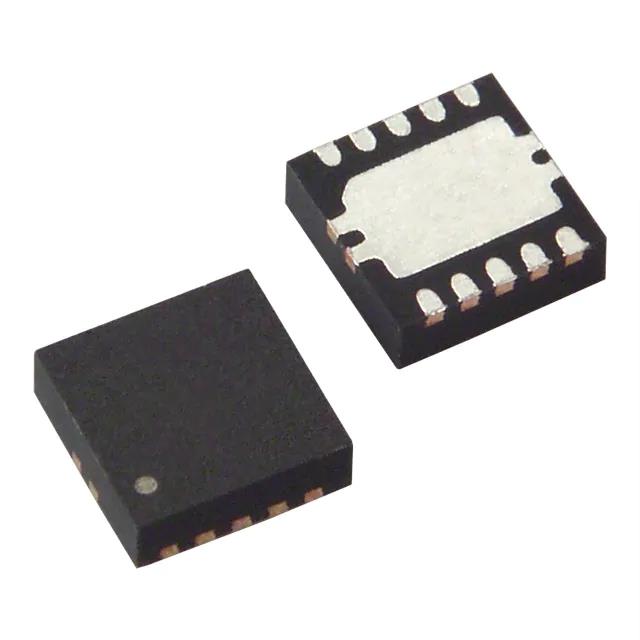

TPS62404QDRCRQ1

TPS62404QDRCRQ1 Description

The TPS62404QDRCRQ1 is a high-performance, dual-output, synchronous buck DC-DC converter designed for automotive applications. Manufactured by Texas Instruments, this device offers adjustable and fixed output configurations, making it versatile for a wide range of applications. The TPS62404QDRCRQ1 features a maximum input voltage of 6V and a minimum input voltage of 2.5V, providing a broad operating range. It supports dual outputs with adjustable voltage levels of 1.575V and 1.9V (3.3V) and can deliver up to 400mA and 600mA of output current respectively. The device operates at a switching frequency of 2.3MHz, ensuring efficient power conversion and minimal footprint.

TPS62404QDRCRQ1 Features

• Dual Outputs: The TPS62404QDRCRQ1 offers two positive output configurations, providing flexibility in power management for multiple loads.
• High Efficiency: With a synchronous rectifier, the device achieves high efficiency across a wide range of load conditions, reducing power loss and improving overall system performance.
• Wide Input Voltage Range: The input voltage range of 2.5V to 6V makes it suitable for various automotive power sources, ensuring reliable operation in diverse environments.
• Adjustable and Fixed Outputs: The device supports both adjustable and fixed output voltages, offering flexibility in design and optimization for specific application requirements.
• Automotive Grade: Certified for automotive applications, the TPS62404QDRCRQ1 meets stringent reliability and performance standards, ensuring robust operation in demanding conditions.
• Compliance and Packaging: The device is REACH unaffected and RoHS3 compliant, adhering to environmental and safety regulations. It is packaged in a surface-mount, tape & reel format, facilitating easy integration into modern automotive electronics.

TPS62404QDRCRQ1 Applications

The TPS62404QDRCRQ1 is ideal for automotive applications where space is limited and efficiency is critical. Its dual-output capability makes it suitable for powering multiple electronic systems simultaneously. Specific use cases include:

• In-Car Electronics: Providing power to infotainment systems, GPS units, and other electronic devices.
• Advanced Driver Assistance Systems (ADAS): Supplying power to sensors, cameras, and control units that require stable and efficient power sources.
• Battery Management Systems: Ensuring reliable power delivery to critical components within battery management systems.
• Telematics and Communication Modules: Powering communication modules that require precise voltage regulation and low power consumption.

Conclusion of TPS62404QDRCRQ1

The TPS62404QDRCRQ1 from Texas Instruments is a robust and versatile DC-DC converter designed for the demanding automotive industry. Its dual-output configuration, wide input voltage range, and high efficiency make it an ideal solution for powering multiple electronic systems in modern vehicles. The device's compliance with automotive standards and environmental regulations ensures its suitability for a wide range of applications. With its adjustable and fixed output options, the TPS62404QDRCRQ1 offers designers the flexibility needed to optimize power management solutions for specific requirements.
