Texas Instruments

TPS70912QDBVRQ1

Linear & Switching Voltage Regulators

TPS70912QDBVRQ1 Description

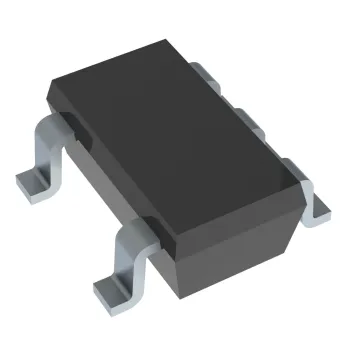

The TPS70912QDBVRQ1 is a high-performance linear regulator designed for automotive applications, offering a fixed output voltage of 1.2V and capable of delivering up to 150mA of output current. Manufactured by Texas Instruments, this regulator is housed in a compact SOT23-5 package, making it suitable for space-constrained designs. The device is designed to operate with an input voltage range up to 30V, ensuring robustness against input voltage variations.

TPS70912QDBVRQ1 Features

• Fixed Output Voltage: The TPS70912QDBVRQ1 provides a stable 1.2V output voltage, ideal for powering sensitive electronics that require a precise voltage supply.
• High Input Voltage Range: With a maximum input voltage of 30V, this regulator can handle a wide range of input voltages, making it versatile for various automotive systems.
• Low Quiescent Current: The device features a low quiescent current of 2.05 µA, which is crucial for maintaining high efficiency and extending battery life in low-power applications.
• Enable Control: The enable feature allows for dynamic control of the regulator's operation, enabling power-saving modes and reducing power consumption when not in use.
• Protection Features: The TPS70912QDBVRQ1 includes comprehensive protection features such as over-current protection, over-temperature protection, reverse current protection, and under-voltage lockout (UVLO), ensuring reliable operation under various conditions.
• High PSRR: The regulator offers a high power supply rejection ratio (PSRR) ranging from 80dB to 52dB across the frequency spectrum from 10Hz to 1kHz, effectively filtering out noise from the input supply.
• Automotive Grade: Certified for automotive applications, the TPS70912QDBVRQ1 meets stringent reliability and performance standards required for automotive electronics.
• Compliance: The device is REACH unaffected and RoHS3 compliant, ensuring it meets environmental and regulatory standards.

TPS70912QDBVRQ1 Applications

The TPS70912QDBVRQ1 is well-suited for a variety of automotive applications where reliability, efficiency, and compact size are critical. Specific use cases include:

• Power Management in Automotive ECUs: The regulator can efficiently power electronic control units (ECUs) in vehicles, providing a stable voltage supply even under varying load conditions.
• Battery-Powered Devices: Ideal for battery-operated automotive accessories, the low quiescent current helps maximize battery life.
• On-Board Electronics: Suitable for powering sensors, microcontrollers, and other on-board electronics that require a stable 1.2V supply.
• Infotainment Systems: Provides a reliable power source for infotainment systems, ensuring high performance and minimal noise interference.

Conclusion of TPS70912QDBVRQ1

The TPS70912QDBVRQ1 from Texas Instruments is a robust and efficient linear regulator designed specifically for automotive applications. Its fixed 1.2V output, high input voltage range, low quiescent current, and comprehensive protection features make it an ideal choice for powering sensitive automotive electronics. The device's compact SOT23-5 package and automotive-grade certification further enhance its suitability for space-constrained and high-reliability applications. With its high PSRR and enable control, the TPS70912QDBVRQ1 ensures optimal performance and power efficiency, making it a standout choice in the market for automotive power management solutions.

TPS70912QDBVRQ1 Documents

Download datasheets and manufacturer documentation for TPS70912QDBVRQ1

Images :

Mechanical Outline Drawing       Function Diagram

Models :

TPS70912QDBVRQ1 Symbol & Footprint by SnapMagic

Product Catalogs :

Automotive Wide VIN DC/DC Brochure

Application Notes :

TPS709-Q1 Functional Safety FIT Rate and Failure Mode Distribution

SPICE Models :

TPS70925 PSpice Transient Model       TPS70912 PSpice Transient Model       TPS70933 PSpice Transient Model (Rev. B)       TPS70930 PSpice Transient Model       TPS70933 Unencrypted PSpice Transient Model (Rev. A)       TPS70936 PSpice Transient Model       TPS70950 PSpice Transient Model       TPS70918 PSpice Transient Model       TPS70928 PSpice Transient Model
