Texas Instruments

TPS73HD325PWP

Linear & Switching Voltage Regulators

TPS73HD325PWP Description

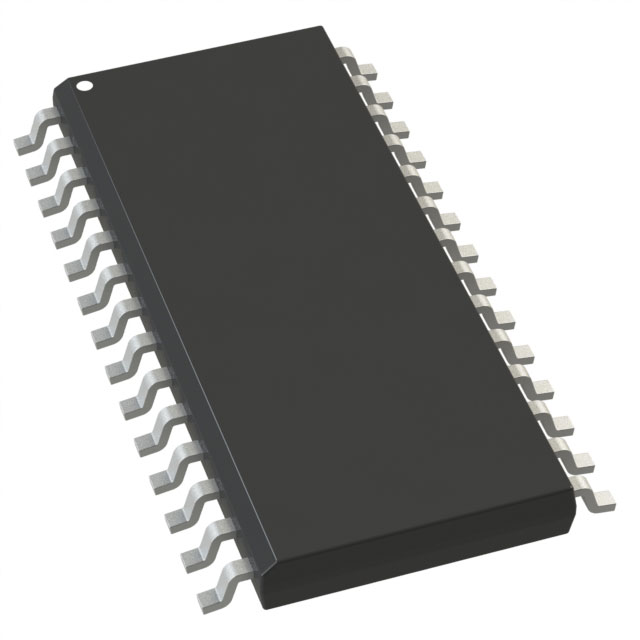

The TPS73HD325PWP from Texas Instruments is a dual-output, low-dropout (LDO) linear voltage regulator designed for precision power management in demanding applications. This 28-pin HTSSOP packaged IC delivers fixed outputs of 2.5V and 3.3V with a maximum input voltage of 10V, supporting up to 750mA per channel. It features ultra-low quiescent current (415 µA) and excellent power supply ripple rejection (51dB ~ 49dB at 120Hz), making it ideal for noise-sensitive systems. With over-current, over-temperature, and reverse-polarity protection, it ensures robust operation in harsh environments.

TPS73HD325PWP Features

• Dual Outputs: Independent 2.5V and 3.3V rails for multi-voltage systems.
• High Efficiency: Low dropout and 550 µA max supply current enhance power efficiency.
• Advanced Protection: Integrated safeguards against over-current, thermal overload, and reverse polarity.
• Control Features: Enable and reset functions for flexible power sequencing.
• Low Noise: High PSRR (51dB) minimizes output ripple, critical for analog/RF circuits.
• Compact & Reliable: 28-pin HTSSOP package with MSL 2 (1 Year) moisture sensitivity.

TPS73HD325PWP Applications

• Portable Electronics: Battery-powered devices requiring stable dual voltages.
• Industrial Systems: PLCs, sensors, and control modules benefiting from robust protection.
• Medical Equipment: Low-noise power for precision analog circuits.
• Automotive Electronics: Reliable voltage regulation in infotainment and ADAS.
• Embedded Systems: Microcontroller and FPGA power supplies with sequencing control.

Conclusion of TPS73HD325PWP

The TPS73HD325PWP stands out for its dual-output precision, low quiescent current, and robust protection features, making it a superior choice for applications demanding reliability and efficiency. Its high PSRR and compact form factor cater to space-constrained, noise-sensitive designs, while TI's quality assurance (ROHS3, REACH Unaffected) ensures compliance with global standards. Ideal for industrial, medical, and automotive systems, this LDO regulator combines performance with durability.

TPS73HD325PWP Documents

Download datasheets and manufacturer documentation for TPS73HD325PWP

PCN Assembly/Origin :

Mult Devices 17/Oct/2017

Datasheets :

TPS73HD301, 318, 328 Datasheet

HTML Datasheet :

TPS73HD301, 318, 328 Datasheet

PCN Design/Specification :

Mult PN PART MARKING 08/Dec/2023
