Texas Instruments

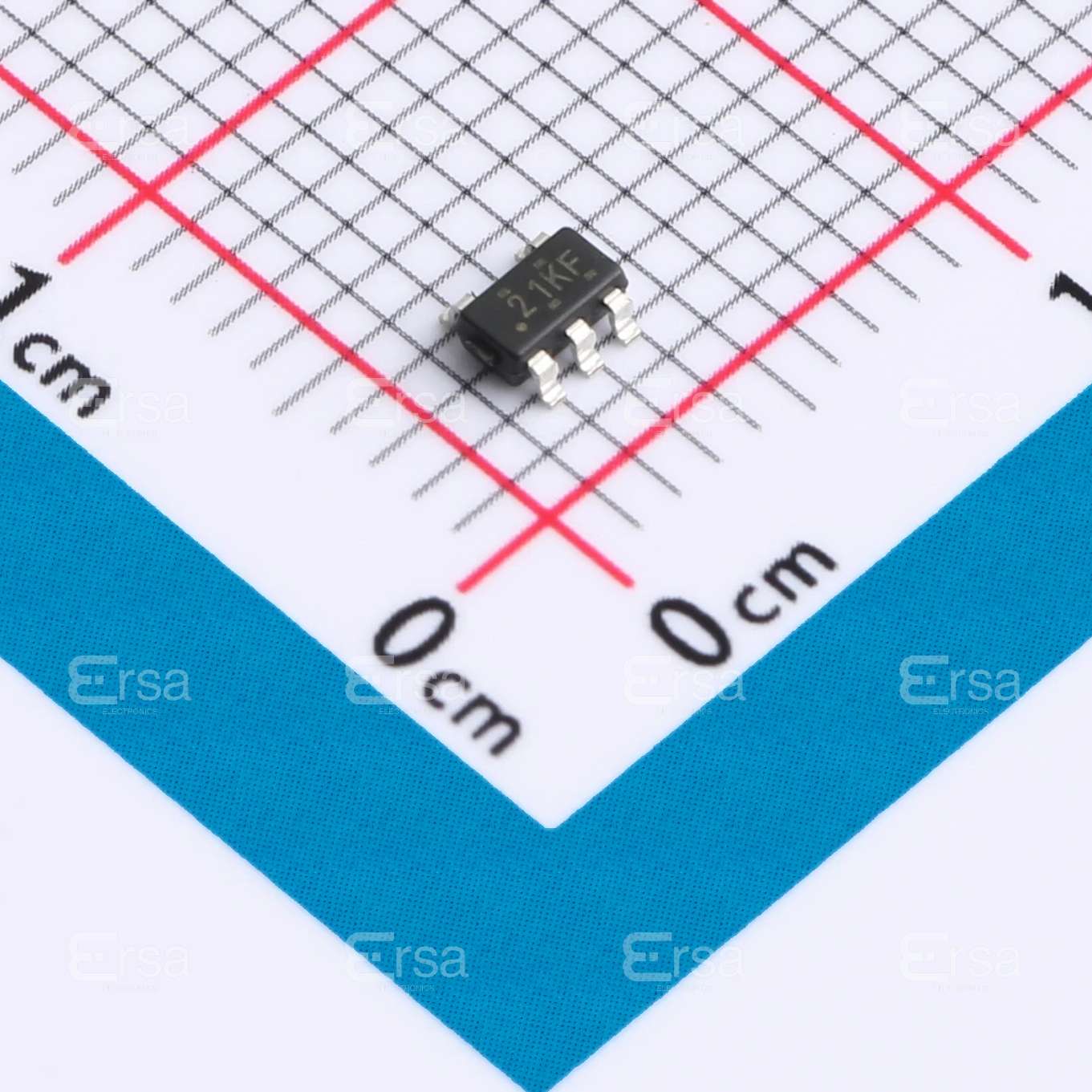

TPS7A0215PDBVR

The TPS7A0215PDBVR is a low-power, low-dropout (LDO) linear voltage regulator manufactured by Texas Instruments. It is designed to provide a stable and reliable voltage output for a wide range of applications.

Description:

The TPS7A0215PDBVR is a compact, 6-pin package that includes an enable/disable function, a low-dropout voltage regulator, and a high input voltage protection feature. It has a wide input voltage range of 1.9V to 5.5V and can provide an output voltage as low as 0.9V. The device is available in a 1.2mm x 1.5mm, 6-bump, 0.4mm pitch WSON package.

Features:

1. Low quiescent current: The TPS7A0215PDBVR has a very low quiescent current of 2.5µA (typical), making it ideal for battery-powered applications.
2. Low dropout voltage: The device has a low dropout voltage of 180mV at 1A load, ensuring efficient power delivery even under heavy load conditions.
3. High input voltage protection: The LDO provides reverse current protection and over-voltage protection up to 28V, safeguarding the system from potentially damaging voltages.
4. Enable/disable function: The TPS7A0215PDBVR features an enable/disable function, allowing for efficient power management in systems with varying power requirements.
5. Small package size: The compact 1.2mm x 1.5mm WSON package makes the TPS7A0215PDBVR suitable for space-constrained applications.

Applications:

1. Portable electronics: The low quiescent current and low dropout voltage make the TPS7A0215PDBVR ideal for use in battery-powered devices such as smartphones, tablets, and wearables.
2. IoT devices: The device's efficiency and small form factor make it suitable for powering Internet of Things (IoT) devices, including sensors and smart home appliances.
3. Medical devices: The TPS7A0215PDBVR can be used in medical devices that require a stable and reliable voltage supply, such as hearing aids, glucose monitors, and portable medical instruments.
4. Industrial equipment: The LDO's high input voltage protection and low quiescent current make it suitable for use in industrial equipment, where reliability and efficiency are crucial.
5. Automotive applications: The TPS7A0215PDBVR can be used in automotive applications that require a stable voltage supply, such as infotainment systems, GPS devices, and in-vehicle communication systems.

In summary, the TPS7A0215PDBVR is a low-power, low-dropout linear voltage regulator that offers high efficiency, reliability, and a compact form factor. It is suitable for a wide range of applications, including portable electronics, IoT devices, medical devices, industrial equipment, and automotive applications.
