Texas Instruments

TPS7A0318PDBVR

TPS7A0318PDBVR Description

The TPS7A0318PDBVR is a high-performance linear voltage regulator designed by Texas Instruments. This device is part of the Linear & Switching Voltage Regulators category and is ideal for applications requiring a stable and efficient power supply. The TPS7A0318PDBVR features a fixed output voltage of 1.8V and can deliver a maximum output current of 200mA. It operates with an input voltage range up to 6V, ensuring compatibility with a wide range of power sources.

TPS7A0318PDBVR Features

• Output Type: Fixed at 1.8V, providing a stable and reliable power supply.
• Input Voltage Range: Up to 6V, allowing for flexibility in power source selection.
• Output Current: Capable of delivering up to 200mA, suitable for low to medium power applications.
• Low Dropout Voltage: A maximum dropout voltage of 0.45V at 200mA ensures high efficiency even at low input-to-output voltage differentials.
• Low Quiescent Current: With a quiescent current of only 300nA, the TPS7A0318PDBVR is highly energy-efficient, making it ideal for battery-powered devices.
• High PSRR: A power supply rejection ratio of 55dB at 1kHz helps in maintaining a clean output voltage, minimizing noise and ripple.
• Control Features: An enable pin allows for easy control of the regulator's operation, enabling power-saving modes.
• Protection Features: Over-current protection, over-temperature protection, and under-voltage lockout (UVLO) ensure the device's reliability and longevity.

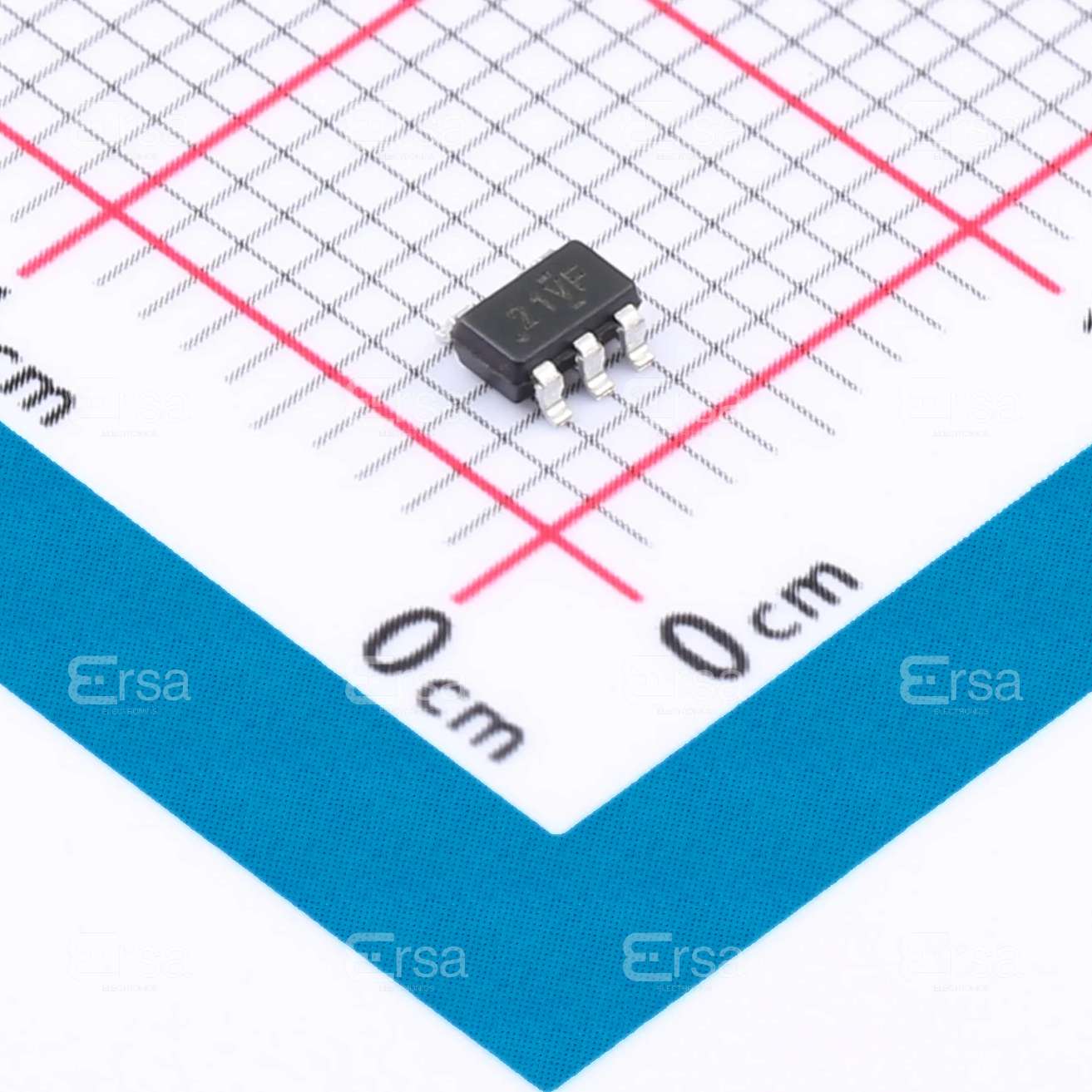

• Package Type: The SOT23-5 package is compact and suitable for surface-mount applications, saving space on the PCB.
• Compliance: The TPS7A0318PDBVR is REACH unaffected and RoHS3 compliant, adhering to environmental and safety standards.
• Moisture Sensitivity Level: MSL 1 (Unlimited) makes it suitable for a wide range of manufacturing environments.

TPS7A0318PDBVR Applications

The TPS7A0318PDBVR is well-suited for a variety of applications where a stable and efficient power supply is crucial. Some specific use cases include:

• Battery-Powered Devices: The low quiescent current and low dropout voltage make it ideal for extending battery life in portable electronics.
• Consumer Electronics: Provides a reliable power supply for devices such as smartphones, tablets, and wearables.
• Industrial Applications: Suitable for powering sensors, microcontrollers, and other low-power electronics in industrial settings.
• Medical Devices: Ensures stable power supply for critical medical equipment, contributing to reliable performance.
• Automotive Electronics: Can be used in various automotive applications where a stable and efficient power supply is required.

Conclusion of TPS7A0318PDBVR

The TPS7A0318PDBVR from Texas Instruments stands out in the market due to its combination of high efficiency, low dropout voltage, and low quiescent current. Its robust protection features and compact SOT23-5 package make it a versatile and reliable choice for a wide range of applications. Whether powering battery-operated devices or ensuring stable operation in industrial settings, the TPS7A0318PDBVR delivers consistent performance and reliability. Its compliance with environmental and safety standards further enhances its appeal for modern electronics design.
