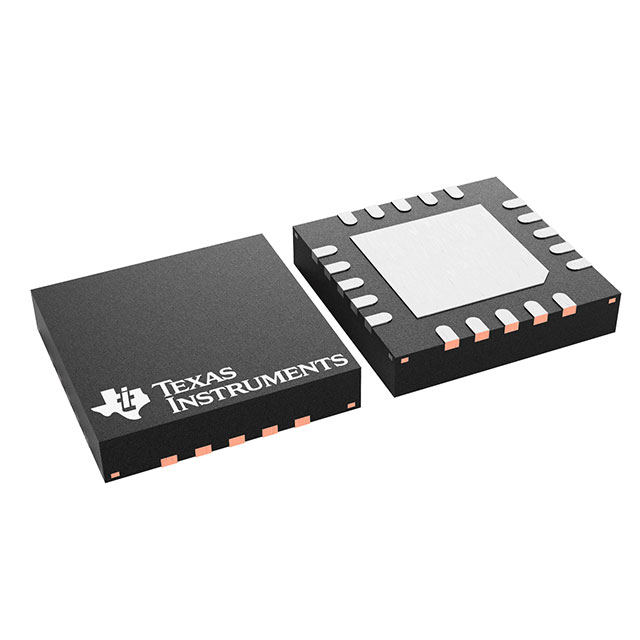

TPS7A8301ARGWR

TPS7A8301ARGWR Description

The TPS7A8301ARGWR is a high-performance, adjustable linear regulator designed by Texas Instruments, offering a robust solution for power management applications. This regulator is part of the Power Management Integrated Circuit (PMIC) category and is ideal for systems requiring low input voltage, low noise, and high efficiency. With a maximum input voltage of 6.5V and a minimum output voltage of 0.8V, the TPS7A8301ARGWR provides a wide operating range, making it suitable for various electronic devices.

TPS7A8301ARGWR Features

• Adjustable Output Voltage: The TPS7A8301ARGWR offers an adjustable output voltage range from 0.8V to 5.2V, providing flexibility for different power requirements.
• High Output Current: Capable of delivering up to 2A of output current, this regulator ensures stable power supply for demanding applications.
• Low Dropout Voltage: With a maximum dropout voltage of 0.3V at 2A, the regulator maintains high efficiency even under heavy load conditions.
• Low Noise: The low-noise design of the TPS7A8301ARGWR ensures minimal interference, making it ideal for sensitive analog circuits.
• Control and Protection Features: The regulator includes current limit, enable, power good, and soft start control features, along with over current, over temperature, and short circuit protection, ensuring reliable operation and safeguarding against potential faults.
• Low Quiescent Current: The quiescent current of 4.3 mA ensures minimal power consumption during operation, enhancing overall system efficiency.
• High PSRR: The Power Supply Rejection Ratio (PSRR) ranges from 42dB to 39dB across frequencies from 10kHz to 500kHz, effectively reducing ripple and noise from the input supply.
• Surface Mount Packaging: The surface mount package type facilitates easy integration into compact designs, making it suitable for space-constrained applications.

TPS7A8301ARGWR Applications

The TPS7A8301ARGWR is well-suited for a variety of applications due to its versatile features and performance benefits. It is particularly ideal for:

• Consumer Electronics: Devices such as smartphones, tablets, and portable gaming consoles benefit from the regulator's low noise and high efficiency, ensuring stable power supply and minimal interference.
• Communication Systems: In base stations and wireless communication equipment, the regulator's low dropout voltage and high PSRR help maintain signal integrity and reduce power loss.
• Industrial Equipment: The robust protection features and wide operating range make it suitable for industrial control systems and automation devices, where reliability and efficiency are paramount.
• Medical Devices: The low noise and adjustable output voltage are crucial for sensitive medical equipment, ensuring accurate measurements and reliable performance.

Conclusion of TPS7A8301ARGWR

The TPS7A8301ARGWR from Texas Instruments stands out as a versatile and high-performance linear regulator, offering a comprehensive set of features tailored for modern power management needs. Its adjustable output voltage, low dropout voltage, and low noise design make it an excellent choice for a wide range of applications, from consumer electronics to industrial and medical devices. The inclusion of advanced control and protection features further enhances its reliability and efficiency, making it a preferred solution for designers seeking a robust and flexible power management component.
