Texas Instruments

TPS7H1201SHKS

TPS7H1201SHKS Description

The TPS7H1201SHKS is a high-performance, adjustable linear regulator designed by Texas Instruments for a wide range of power management applications. This device offers a maximum input voltage of 7V and can deliver up to 500mA of output current, making it suitable for various electronic systems requiring reliable and efficient power regulation. The regulator features an adjustable output voltage ranging from 0.8V to 6.8V, providing flexibility to meet different power supply requirements. With a low dropout voltage of only 0.1V at 500mA, the TPS7H1201SHKS ensures high efficiency even under low input-to-output voltage conditions. The regulator also includes essential control features such as current limit, enable, power good, and soft start, as well as protection features like over current and over temperature, enhancing its reliability and robustness. The TPS7H1201SHKS is housed in a surface-mount package, making it suitable for compact and space-constrained designs.

TPS7H1201SHKS Features

• Adjustable Output Voltage: The TPS7H1201SHKS offers an adjustable output voltage range from 0.8V to 6.8V, providing flexibility to meet diverse power supply needs.
• Low Dropout Voltage: With a maximum dropout voltage of 0.1V at 500mA, this regulator maintains high efficiency even when the input voltage is close to the output voltage.
• Control Features: The regulator includes current limit, enable, power good, and soft start features, allowing for precise control and monitoring of the power supply.
• Protection Features: Over current and over temperature protection ensure the device's reliability and longevity, safeguarding against potential damage in various operating conditions.

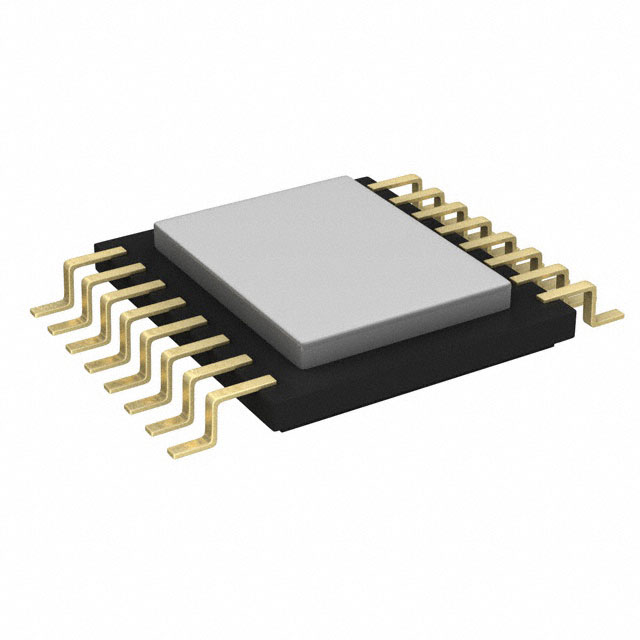

• Surface-Mount Package: The surface-mount package is ideal for compact designs, enabling integration into space-constrained applications.
• High PSRR: The regulator boasts a high power supply rejection ratio (PSRR) of 45dB at 1kHz and 20dB at 100kHz, minimizing the impact of input voltage noise on the output voltage.
• Positive Output Configuration: The positive output configuration is suitable for applications requiring a stable and positive voltage supply.

TPS7H1201SHKS Applications

The TPS7H1201SHKS is ideal for a variety of applications where efficient and reliable power regulation is crucial. Some specific use cases include:

• Consumer Electronics: Powering portable devices, smartphones, tablets, and other consumer electronics that require stable and efficient power supply.
• Communication Systems: Providing power to base stations, routers, and other communication equipment that demand high reliability and low noise.
• Industrial Equipment: Ensuring stable power supply for industrial control systems, sensors, and actuators in harsh operating environments.
• Automotive Electronics: Suitable for automotive applications where space constraints and high efficiency are critical, such as in-vehicle infotainment systems and electronic control units.

Conclusion of TPS7H1201SHKS

The TPS7H1201SHKS from Texas Instruments stands out as a versatile and high-performance linear regulator, offering adjustable output voltage, low dropout voltage, and a range of control and protection features. Its surface-mount package and high PSRR make it an excellent choice for compact and noise-sensitive applications. Whether used in consumer electronics, communication systems, industrial equipment, or automotive electronics, the TPS7H1201SHKS provides reliable and efficient power regulation, ensuring stable operation and long-term reliability.
