M8340104K1002FGD03

M8340104K1002FGD03 Description

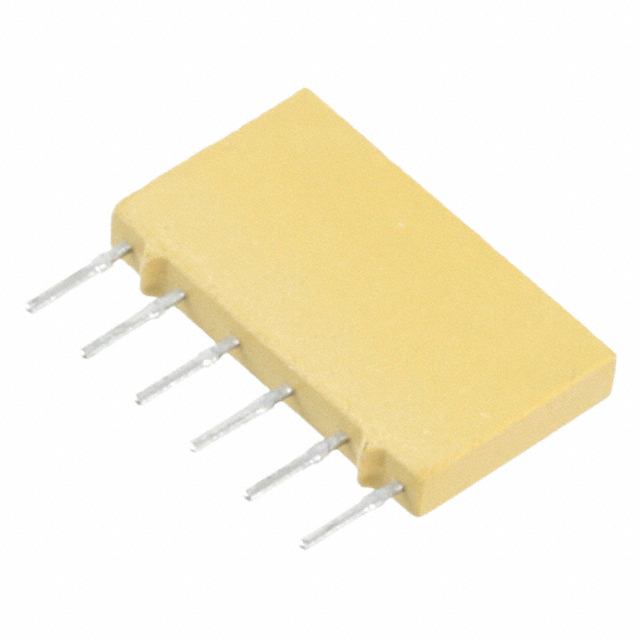

The M8340104K1002FGD03 from Vishay Dale is a high-reliability resistor network designed for demanding military applications. This through-hole mounted device integrates three isolated 10kΩ resistors with a tight tolerance of ±1% and a low temperature coefficient of ±100ppm/°C, ensuring stable performance across varying environmental conditions. Encased in a compact 6-pin SIP package with dimensions of 0.583" x 0.098" (14.81mm x 2.49mm) and a seated height of 0.350" (8.89mm), it offers a space-efficient solution for densely populated PCBs. Rated for 200mW power per element, this resistor network is packaged in tubes and complies with EAR99 and HTSUS 8533.21.0050 regulations, making it suitable for global deployment.

M8340104K1002FGD03 Features

• Military-Grade Reliability: Designed to meet stringent military standards, ensuring durability in harsh environments.
• Precision Performance: ±1% tolerance and ±100ppm/°C temperature coefficient for consistent operation.
• Compact SIP Package: Space-saving 6-pin design ideal for high-density layouts.
• High Power Handling: 200mW per resistor for robust current management.
• Moisture Resistant: MSL 1 (Unlimited) rating guarantees performance even in humid conditions.
• Isolated Circuit Design: Prevents cross-talk and interference between resistors.

M8340104K1002FGD03 Applications

This resistor network excels in mission-critical military electronics, including:

• Avionics systems requiring stable resistance under extreme temperatures.
• Communication equipment where signal integrity is paramount.
• Precision instrumentation demanding low drift and high accuracy.
• Power supply modules needing reliable current limiting.
  Its rugged construction and precision make it a preferred choice for defense, aerospace, and high-reliability industrial systems.

Conclusion of M8340104K1002FGD03

The M8340104K1002FGD03 stands out as a high-performance resistor network tailored for military and precision applications. Its combination of tight tolerance, low thermal drift, and robust construction ensures reliability in the most demanding scenarios. Whether deployed in avionics, communications, or power systems, this Vishay Dale product delivers unmatched consistency and durability, making it a top-tier choice for engineers prioritizing performance and longevity.
