1N4448TR

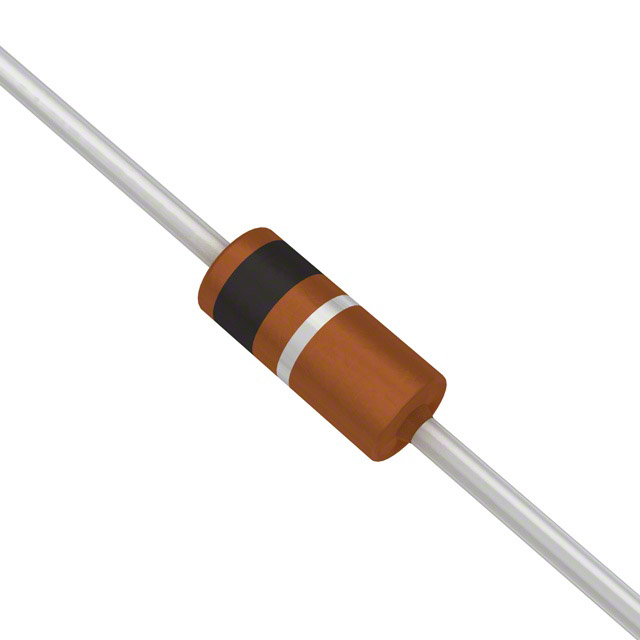

1N4448TR Description

The 1N4448TR is a general-purpose diode manufactured by Vishay General Semiconductor – Diodes Division. This single diode is designed for small signal applications, with a maximum current of 200mA (Io). It features a capacitance of 4pF @ 0V, 1MHz, and a reverse recovery time (trr) of 8 ns. The 1N4448TR is mounted through hole and is currently active in the market. It has a maximum voltage - forward (Vf) of 1 V @ 100 mA and a maximum voltage - DC reverse (Vr) of 100 V. The diode is packaged in a tape & reel (TR) format and has an average rectified current (Io) of 150mA.

1N4448TR Features

• Small signal diode with a maximum current of 200mA (Io)
• Capacitance of 4pF @ 0V, 1MHz
• Reverse recovery time (trr) of 8 ns
• Through hole mounting type
• Active product status
• Maximum voltage - forward (Vf) of 1 V @ 100 mA
• Maximum voltage - DC reverse (Vr) of 100 V
• Tape & reel (TR) packaging
• Average rectified current (Io) of 150mA
• Operating temperature - junction up to 175°C (Max)
• RoHS3 compliant
• Moisture sensitivity level (MSL) of 1 (Unlimited)

1N4448TR Applications

The 1N4448TR is ideal for various small signal applications due to its low capacitance and reverse recovery time. Some specific use cases include:

1. General-purpose rectification in power supplies and power electronics
2. Signal conditioning and filtering in communication systems
3. Protection against voltage spikes and transients in electronic circuits
4. Voltage regulation and stabilization in voltage reference circuits

Conclusion of 1N4448TR

The 1N4448TR is a versatile and reliable small signal diode, offering excellent performance in various applications. Its low capacitance and reverse recovery time make it suitable for high-speed signal processing and power electronics. With its RoHS3 compliance and moisture sensitivity level of 1, the 1N4448TR is an ideal choice for environmentally conscious and reliable electronic designs.
