Molded Case Circuit Breakers: How to Choose the Right MCCB for Panels, Motors, Feeders, and Industrial Power Systems

One-Screen Answer (Selection + Procurement)

If you are selecting molded case circuit breakers, do not begin with current rating alone. The real question is: what continuous load, available fault current, trip behavior, coordination target, installation environment, and future expansion margin does your system actually need? An MCCB that “fits the amps” can still be the wrong breaker if its breaking capacity is too low, its trip settings are too crude, its thermal environment is hotter than assumed, or its accessories do not match the control scheme.

What Is an MCCB, and Why Not Just Use an MCB or Fuse?

A molded case circuit breaker is a protective switching device designed for higher current circuits and more demanding distribution systems than typical miniature circuit breakers. It is commonly used in commercial buildings, industrial control panels, motor feeders, sub-distribution boards, generator outputs, HVAC systems, pumps, compressors, and larger branch circuits where higher current, higher fault levels, or more adjustable protection are required.

Compared with an MCB, an MCCB generally offers a larger frame size range, higher breaking capacity, more robust terminals, and more options for adjustable overload and short-circuit settings. Compared with a fuse, an MCCB is resettable, easier to integrate with accessories, and often better suited for coordinated protection schemes in modern electrical panels. This does not mean MCCBs are always “better.” It means they are better when the application demands flexibility, maintainability, or higher electrical robustness.

In practical selection work, the usefulness of an MCCB comes from its combination of load protection, fault interruption, switching duty, accessory integration, and settings control. That is why MCCB selection sits at the intersection of electrical design, compliance, field installation, and procurement strategy.

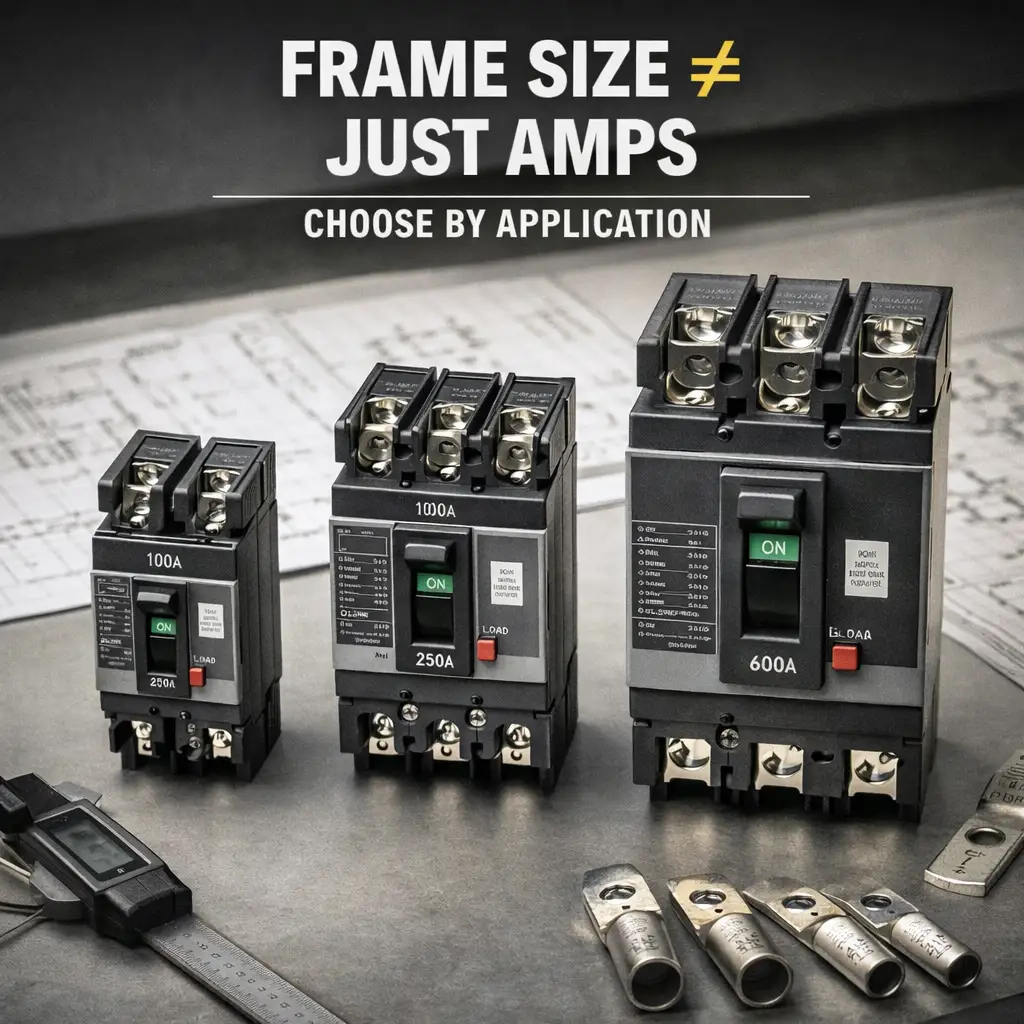

Frame Size and Rated Current: Start Here, But Do Not Stop Here

Engineers often begin by asking, “Is this a 100 A, 250 A, or 400 A breaker?” That is reasonable, but incomplete. MCCBs are usually organized by frame size, which reflects the physical platform and its maximum supported current range, and by rated current or trip setting, which determines how the breaker behaves in service. A 250-frame breaker set to a lower current may still be the right answer if future expansion, terminal size, accessory options, or available fault rating justify it.

The correct current choice depends on more than steady-state load. You must also consider duty cycle, motor starting current, harmonic heating, ambient temperature, cable ampacity, grouping inside the enclosure, and whether the circuit is continuous. In many jurisdictions and design standards, continuous loads are not treated casually; design margin matters. A breaker that runs “technically below its rating” on paper may still be too hot inside a compact panel that also houses drives, power supplies, and contactors.

Breaking Capacity: The Spec That Decides Whether the Breaker Can Survive the Fault

If current rating tells you what the breaker carries in normal service, breaking capacity tells you whether the breaker can interrupt an actual fault without failing dangerously. This is one of the most important selection parameters for molded case circuit breakers. Yet it is also one of the most commonly under-specified because it depends on the installation point, not only on the load.

Available short-circuit current can vary greatly depending on transformer size, utility source, generator contribution, cable impedance, and where in the distribution tree the breaker is installed. A feeder close to the transformer may require a much higher interrupting rating than a distant branch circuit. Choosing an MCCB with insufficient breaking capacity is not a small paperwork issue. It is a protection failure.

This is why serious MCCB selection starts with fault study data, utility information, or at minimum a grounded estimate from the system designer. If the site fault level is unknown, the safe response is not guesswork. It is to pause and determine the value. A beautifully priced breaker that cannot interrupt the real fault current is not a bargain. It is an expensive liability.

Trip Unit Selection: Thermal-Magnetic or Electronic?

The trip unit defines how the breaker decides to open. This is where molded case circuit breakers stop being “boxes with levers” and start acting like engineered protection devices. For simpler systems, a thermal-magnetic MCCB can be excellent: rugged, familiar, and cost-effective. For more advanced systems, an electronic trip unit can provide adjustable long-time, short-time, instantaneous, and sometimes ground-fault functions that dramatically improve coordination and application fit.

The choice depends on the job. A basic feeder in a modest commercial panel may not need elaborate setting flexibility. A generator-backed system, critical manufacturing line, or motor-intensive installation often benefits from electronic settings because the protection must distinguish between harmless inrush and dangerous faults. That subtlety is what prevents both nuisance trips and under-protection.

Coordination and Selectivity: Why the “Right” Breaker Still Trips the Wrong Part of the System

One of the biggest reasons to use molded case circuit breakers instead of more basic protective devices is the ability to build a cleaner, more intelligent protection hierarchy. The goal is simple: when a fault happens downstream, the downstream device should clear it first, while upstream devices stay closed whenever possible. In the real world, this goal is not automatic. It must be designed.

Coordination problems appear when upstream and downstream trip characteristics overlap too much, when instantaneous pickup is too aggressive, or when the selected breaker family does not support the desired selectivity. The result is painfully familiar: a small branch fault shuts down an entire panel, floor, or production line. Everyone blames the breaker, but the deeper issue is that the protection plan was never aligned.

This is why coordination studies, manufacturer selectivity tables, and real trip setting reviews matter. For industrial buyers, this also means approved alternates cannot be judged by current and frame alone. A substitute breaker that breaks coordination is not equivalent.

Ambient Temperature, Enclosure Heat, and Installation Environment

MCCBs do not live in ideal laboratory air. They live in panels, often near drives, transformers, contactors, busbars, and power supplies that all make heat. Ambient temperature changes thermal behavior, current-carrying capacity, and sometimes trip characteristics. A breaker that behaves perfectly on a bench may run much warmer in a sealed outdoor enclosure or dense indoor cabinet with poor airflow.

You should also consider dust, humidity, vibration, corrosive environments, and altitude. High altitude reduces cooling effectiveness and changes insulation stress. Industrial sites with pumps, compressors, and vibration-heavy machinery can punish weak mechanical mounting or poor cable terminations. Marine or wastewater environments bring corrosion concerns. In short, breaker selection is never just a catalog problem. It is a site problem.

For procurement teams, this means environment belongs in the RFQ. Without it, suppliers may quote a technically valid breaker that becomes marginal once installed.

Installation Details That Quietly Decide Success

A well-selected MCCB can still underperform if the installation details are sloppy. Terminal torque, conductor size, lug compatibility, busbar spacing, line/load orientation rules, clearance, creepage, and accessory wiring all matter. Some breaker platforms also have specific requirements for back-fed use, rotary handles, door interlocks, shunt trip coils, undervoltage release modules, or auxiliary contact mounting.

Maintenance teams care about these details because they determine how quickly a breaker can be replaced, tested, or integrated into the panel logic. Panel builders care because they affect panel depth, wiring space, and assembly time. Inspectors care because non-compliant installation can turn a good design into a failed inspection. Buyers should care because accessory mismatches often cause last-minute project delays that are far more expensive than the price gap between two breaker options.

In other words, when selecting molded case circuit breakers, “Will it fit electrically?” is only half the question. “Will it fit mechanically, thermally, and operationally?” is the other half.

Typical MCCB Use Cases and What Changes in Selection

Molded Case Circuit Breakers Selection Checklist (RFQ-Ready)

Copy this logic into your RFQ so suppliers respond with technically comparable breaker options.

CTA: Get MCCBs Matched to Fault Level, Trip Logic, and Panel Constraints — Not Just Amps

If you are locking a new panel BOM, replacing an obsolete breaker, or qualifying alternates for a commercial or industrial project, send an RFQ with the real application data. That is the fastest way to get molded case circuit breakers that protect your schedule, your compliance review, and your maintenance team.

FAQ: Molded Case Circuit Breakers Selection & Sourcing
