RF Directional Coupler

(4096 results)

RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.

Part #	Manufacturer	Description	Availability	Pricing
PE2CP1044 RF Directional Coupler	Pasternack	90D PCB HYB CPL 0.5-3GHZ 200W	4	-

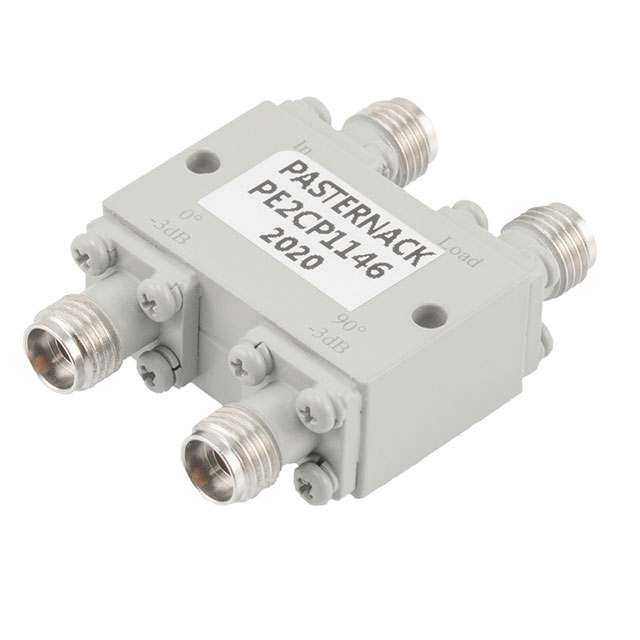

PE2CP1146 RF Directional Coupler	Pasternack	90DEG HYB CPL 10-26.5GHZ 20W	3	-
PE2CP1034 RF Directional Coupler	Pasternack	90D PCB HYB CPL 225-400MHZ 250W	96	-
PE2CP1120-20 RF Directional Coupler	Pasternack	CPLR 20DBSMA 6-26.5GHZ 30W	4	-
PE2CP1140 RF Directional Coupler	Pasternack	90DEG HYB CPL 500MHZ-1GHZ 50W	3	-
PE2CP1155 RF Directional Coupler	Pasternack	180DEG HYB CPL 2-4GHZ 50W	8	-
PE2CP1111 RF Directional Coupler	Pasternack	CPLR 20DBSMA 12.4-18GHZ 50W	10	-
PE2CP1126-10 RF Directional Coupler	Pasternack	CPLR 10DB2.92MM 18-40GHZ 30W	7	-
PE2CP1158 RF Directional Coupler	Pasternack	180DEG HYB CPL 2-18GHZ 50W	3	-
PE2CP1120-30 RF Directional Coupler	Pasternack	CPLR 30DBSMA 6-26.5GHZ 30W	3	-
PE2CP1102 RF Directional Coupler	Pasternack	CPLR 10DBSMA 1-4GHZ 50W	16	-
PE2CP004-20 RF Directional Coupler	Pasternack	CPLR 20DBSMA 2-8GHZ 50W	24	-
PE2CP1135-20 RF Directional Coupler	Pasternack	CPLR 20DB 2.4MM 18-50GHZ 20W	3	-
PE2CP002-10 RF Directional Coupler	Pasternack	CPLR 10DBSMA 700MHZ-2.7GHZ 50W	4	-
PE2CP1148 RF Directional Coupler	Pasternack	90DEG HYB CPL 20-40GHZ 20W	8	-
PE2CP1133-30 RF Directional Coupler	Pasternack	CPLR 30DB2.92MM 2-40GHZ 30W	3	-
PE2CP005-10 RF Directional Coupler	Pasternack	CPLR 10DBSMA 1-4GHZ 50W	14	-
PE2CP000-10 RF Directional Coupler	Pasternack	CPLR 10DBSMA 2-18GHZ 50W	3	-
PE2CP1134-10 RF Directional Coupler	Pasternack	CPLR 10DB 2.4MM 2-52GHZ 20W	3	-
PE2CP1042 RF Directional Coupler	Pasternack	90D PCB HYB CPL 0.5-2.5GHZ 300W	5	-
PE2CP1122-30 RF Directional Coupler	Pasternack	CPLR 30DB2.92MM 1-40GHZ 30W	7	-
PE2CP001-20 RF Directional Coupler	Pasternack	CPLR 20DBSMA 6-18GHZ 50W	4	-
PE2CP1133-20 RF Directional Coupler	Pasternack	CPLR 20DB2.92MM 2-40GHZ 30W	6	-
PE2CP1048 RF Directional Coupler	Pasternack	90D PCB HYB CPL 0.96-1.2GHZ 125W	11	-
PE2CP1144 RF Directional Coupler	Pasternack	90DEG HYB CPL 1-18GHZ 50W	17	-
