RF Directional Coupler

(4096 results)

RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.

Part #	Manufacturer	Description	Availability	Pricing
PE2CP1032 RF Directional Coupler	Pasternack	90D PCB HYB CPL 130-180MHZ 200W	13	-
PE2CP003-20 RF Directional Coupler	Pasternack	CPLR 20DBSMA 500MHZ-2GHZ 50W	5	-
PE2CP1152 RF Directional Coupler	Pasternack	180DEG HYB CPL 1-2GHZ 50W	4	-
PE2CP1027 RF Directional Coupler	Pasternack	90D PCB HYB CPL 20-1000MHZ 150W	4	-
PE2CP1127-10 RF Directional Coupler	Pasternack	CPLR 10DB1.85MM 1-67GHZ 20W	3	-
PE2CP1054 RF Directional Coupler	Pasternack	90DEG PCB HYB CPL 1-4.2GHZ 80W	17	-
PE2CP1121-30 RF Directional Coupler	Pasternack	CPLR 30DBSMA 18-26GHZ 30W	3	-
PE2CP1038 RF Directional Coupler	Pasternack	90D PCB HYB CPL 400-1000MHZ 400W	18	-
PE2CP017 RF Directional Coupler	Pasternack	90DEG HYB CPL 2-4GHZ 50W	20	-
PE2CP1052 RF Directional Coupler	Pasternack	90DEG PCB HYB CPL 1-3GHZ 150W	6	-
PE2CP1100 RF Directional Coupler	Pasternack	CPLR 6DBSMA 4-18GHZ 50W	12	-

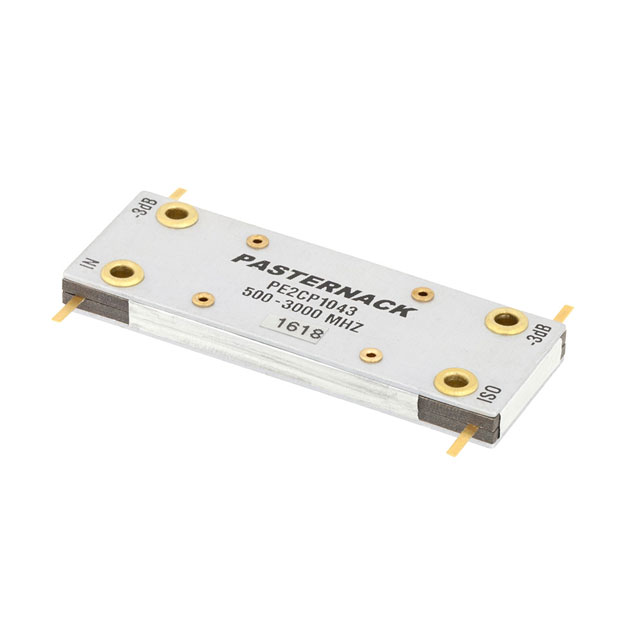

PE2CP1043 RF Directional Coupler	Pasternack	90D PCB HYB CPL 0.5-3GHZ 125W	3	-
PE2CP1112 RF Directional Coupler	Pasternack	CPLR 30DBSMA 7-16GHZ 50W	6	-

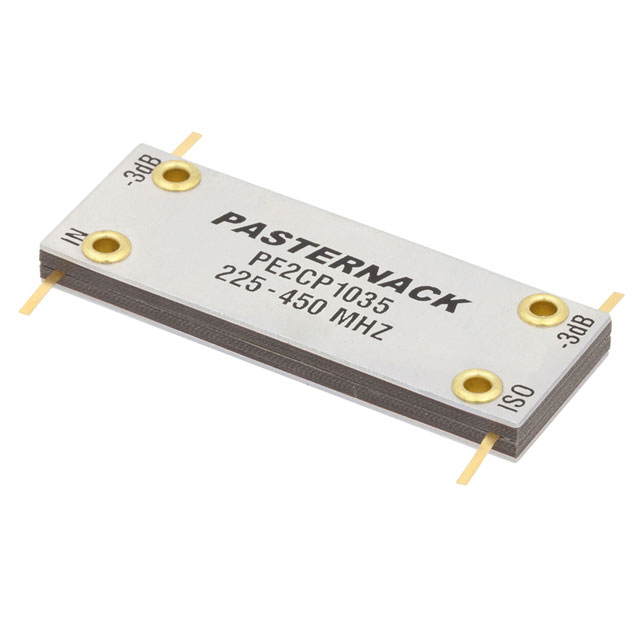

PE2CP1035 RF Directional Coupler	Pasternack	90D PCB HYB CPL 225-450MHZ 400W	3	-
PE2CP1147 RF Directional Coupler	Pasternack	90DEG HYB CPL 5-26.5GHZ 20W	5	-
PE2CP1029 RF Directional Coupler	Pasternack	90D PCB HYB CPL 100-500MHZ 150W	4	-
PE2CP1126-20 RF Directional Coupler	Pasternack	CPLR 20DB2.92MM 18-40GHZ 30W	10	-
PE2CP1049 RF Directional Coupler	Pasternack	90DEG PCB HYB CPL 1-2GHZ 200W	24	-
PE2CP1149 RF Directional Coupler	Pasternack	90DEG HYB CPL 8-43.5GHZ 20W	3	-
PE2CP021 RF Directional Coupler	Pasternack	90DEG HYB CPL 800MHZ-3GHZ 50W	9	-
PE2CP1141 RF Directional Coupler	Pasternack	90DEG HYB CPL 5-10GHZ 50W	3	-
PE2CP1106 RF Directional Coupler	Pasternack	CPLR 10DBSMA 7-18GHZ 50W	36	-
PE2CP1045 RF Directional Coupler	Pasternack	90D PCB HYB CPL 0.8-1.6GHZ 200W	7	-
PE2CP1105 RF Directional Coupler	Pasternack	CPLR 10DBSMA 7-12.4GHZ 50W	45	-
PE2CP1154 RF Directional Coupler	Pasternack	180DEG HYB CPL 1.4-6GHZ 30W	5	-
