RF Directional Coupler

(409 results)

RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.

Part #	Manufacturer	Description	Availability	Pricing
PE2243-16 RF Directional Coupler	Pasternack	Directional 16 dB SMA Coupler to	3	-
PE2CP1007 RF Directional Coupler	Pasternack	Precision Dual Directional 50 dB	3	-
PEWCP1032 RF Directional Coupler	Pasternack	WR-137 Waveguide 10 dB Broadwall	4	-
PEWRD650CP03-30 RF Directional Coupler	Pasternack	WRD-650 Double Ridge Waveguide 3	3	-
PEW28CP005-30 RF Directional Coupler	Pasternack	WR-28 Waveguide 30 dB Broadwall	3	-
PEWCP1037 RF Directional Coupler	Pasternack	WR-34 Waveguide 40 dB Crossguide	10	-

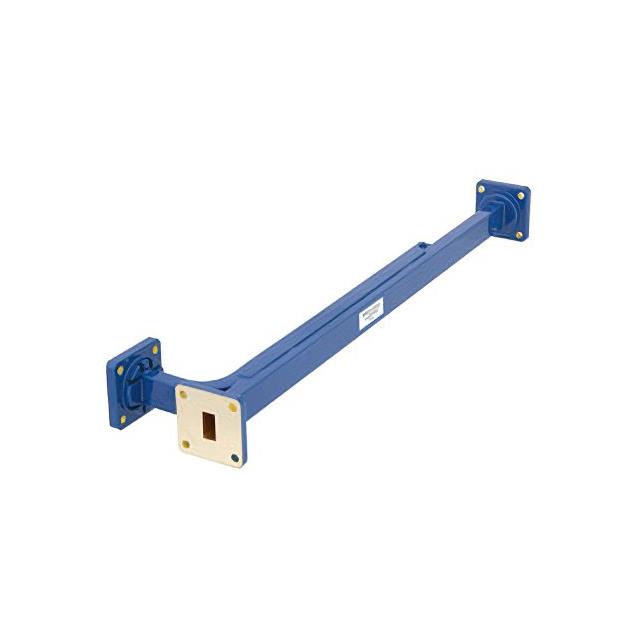

PEWCP1008 RF Directional Coupler	Pasternack	WR-51 Waveguide 10 dB Broadwall	3	-
PE-T2025 RF Directional Coupler	Pasternack	Low PIM 11 dB N Unequal Tapper f	3	-
PE2CP1141-20 RF Directional Coupler	Pasternack	Directional 20 dB N Coupler from	8	-
