AMD

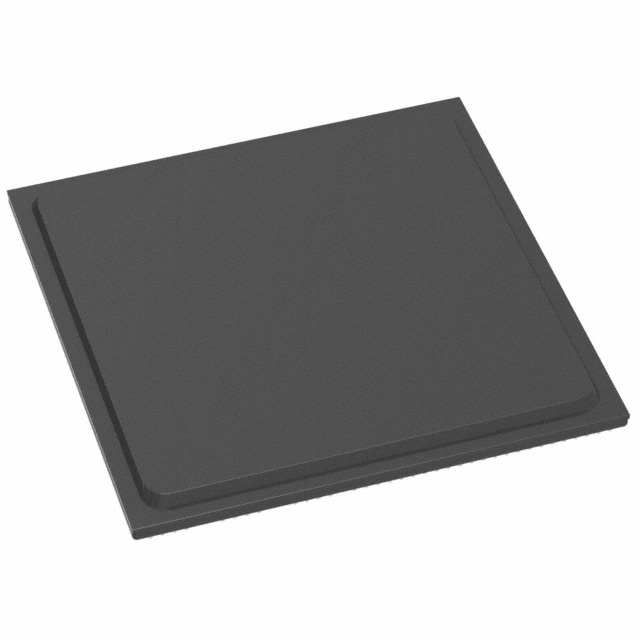

XC5VLX110T-2FFG1738C

FPGAs

The XC5VLX110T-2FFG1738C is a field programmable gate array (FPGA) device manufactured by Advanced Micro Devices (AMD). This device belongs to the Virtex-5 family of FPGAs, which are designed to provide high performance, low power consumption, and advanced features for a wide range of applications.

Description:

The XC5VLX110T-2FFG1738C is a high-density FPGA with a total of 110,000 logic cells and 1,738 I/O (input/output) resources. It is packaged in a 2-fan-out fine-pitch ball grid array (FBGA) with a 20x20 mm footprint. The device operates at a maximum frequency of 622 MHz and has a power dissipation of 10.5 Watts.

Features:

1. High-performance logic cells: The XC5VLX110T-2FFG1738C features advanced logic cells that provide high-speed and low-power operation, making it suitable for a wide range of applications.
2. Advanced I/O resources: The device offers a wide range of I/O resources, including high-speed transceivers, differential I/Os, and configurable logic cells, allowing for flexible and efficient system design.
3. On-chip memory: The XC5VLX110T-2FFG1738C includes a total of 288 Kbits of block RAM (BRAM) and 1,920 Kbits of distributed RAM (DRAM), providing ample memory resources for various applications.
4. Digital signal processing (DSP) blocks: The device includes 40 DSP blocks, which can be used for high-speed mathematical operations and data processing tasks.
5. High-speed serial transceivers: The XC5VLX110T-2FFG1738C features 12 high-speed serial transceivers, supporting data rates up to 6.6 Gbps, making it suitable for high-speed communication applications.
6. Security features: The device includes advanced security features, such as encryption and authentication, to protect intellectual property and ensure data integrity.

Applications:

The XC5VLX110T-2FFG1738C is suitable for a wide range of applications, including but not limited to:

1. High-speed communication systems: Due to its high-speed I/O resources and serial transceivers, the device is ideal for applications such as telecom, networking, and data center equipment.
2. Video processing: The device's advanced logic cells, DSP blocks, and memory resources make it suitable for video processing applications, such as image and video compression, decompression, and processing.
3. Industrial control systems: The XC5VLX110T-2FFG1738C can be used in industrial control systems for tasks such as motor control, sensor interfacing, and data acquisition.
4. Automotive systems: The device's advanced features and security capabilities make it suitable for automotive applications, such as advanced driver assistance systems (ADAS) and infotainment systems.
5. Embedded systems: The XC5VLX110T-2FFG1738C can be used in embedded systems for various applications, such as medical equipment, aerospace, and defense systems.

In summary, the XC5VLX110T-2FFG1738C is a high-performance, low-power FPGA device with advanced features and a wide range of applications. Its versatility and capabilities make it an ideal choice for various industries and applications.

XC5VLX110T-2FFG1738C Documents

Download datasheets and manufacturer documentation for XC5VLX110T-2FFG1738C

Datasheets :

Virtex-5 FPGA User Guide       Virtex-5 Family Overview       Virtex-5 FPGA Datasheet

PCN Design/Specification :

Mult Dev Material Chg 16/Dec/2019       Cross-Ship Lead-Free Notice 31/Oct/2016

Environmental Information :

Xilinx REACH211 Cert       Xiliinx RoHS Cert
