Analog Devices Inc.

ADRF5300BCCZN-R7

RF Switches

ADRF5300BCCZN-R7 Description

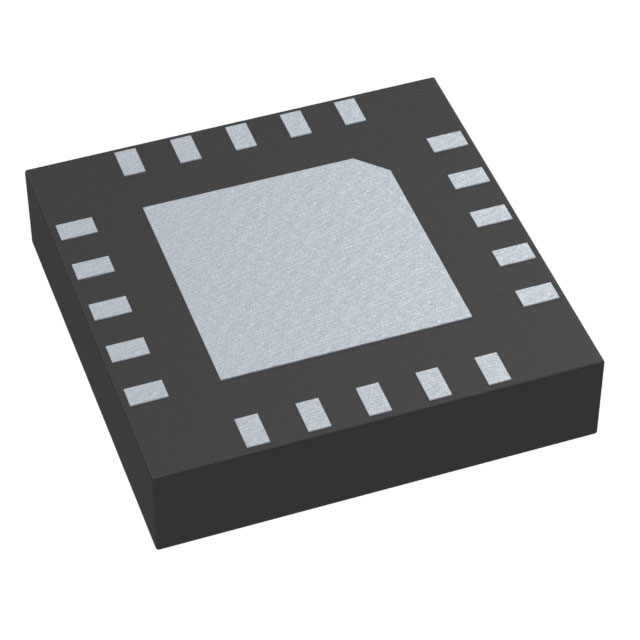

The ADRF5300BCCZN-R7 from Analog Devices Inc. is a high-performance SPDT (Single Pole Double Throw) RF switch designed for general-purpose applications in the 24GHz to 32GHz frequency range. This surface-mount device is packaged in a 20-pin LGA (Land Grid Array) and supplied in Tape & Reel (TR) for automated assembly. With an impressive isolation of 38dB and low insertion loss of 1.1dB, it ensures minimal signal degradation in high-frequency systems. The switch operates on a 3.15V to 3.45V supply, making it suitable for low-power designs, and boasts an outstanding IIP3 (Third-Order Intercept Point) of 65dBm, ensuring superior linearity in demanding RF environments.

ADRF5300BCCZN-R7 Features

• Frequency Range: 24GHz to 32GHz, optimized for millimeter-wave applications.
• High Isolation (38dB) & Low Insertion Loss (1.1dB): Enhances signal integrity in high-frequency paths.
• Exceptional Linearity (65dBm IIP3): Reduces distortion in high-power RF systems.
• Compact 20LGA Package: Ideal for space-constrained designs.
• Low Voltage Operation (3.15V–3.45V): Energy-efficient for portable and battery-powered devices.
• RoHS3 & REACH Compliant: Meets environmental and regulatory standards.
• Moisture Sensitivity Level (MSL 3): Suitable for industrial and commercial applications with proper handling.

ADRF5300BCCZN-R7 Applications

This RF switch is ideal for:

• 5G & mmWave Communication Systems: Enables high-frequency signal routing in base stations and small cells.
• Radar & Defense Electronics: Used in 24GHz/32GHz radar systems for automotive, aerospace, and military applications.
• Test & Measurement Equipment: Ensures precise signal switching in VNA (Vector Network Analyzers) and spectrum analyzers.
• Satellite & Wireless Infrastructure: Supports Ka-band and mmWave satellite links.
• Industrial IoT & RF Front-End Modules: Provides reliable switching in high-frequency sensor networks.

Conclusion of ADRF5300BCCZN-R7

The ADRF5300BCCZN-R7 stands out as a high-linearity, low-loss RF switch for millimeter-wave applications, offering superior performance in 5G, radar, and test systems. Its compact form factor, robust isolation, and low power requirements make it a preferred choice for engineers designing next-generation RF systems. With Analog Devices' proven reliability, this switch is a key enabler for high-frequency signal routing in advanced wireless and defense technologies.

ADRF5300BCCZN-R7 Documents

Download datasheets and manufacturer documentation for ADRF5300BCCZN-R7

Datasheets :

ADRF5300
