Analog Devices Inc.

HMC218BMS8GETR

RF Mixers

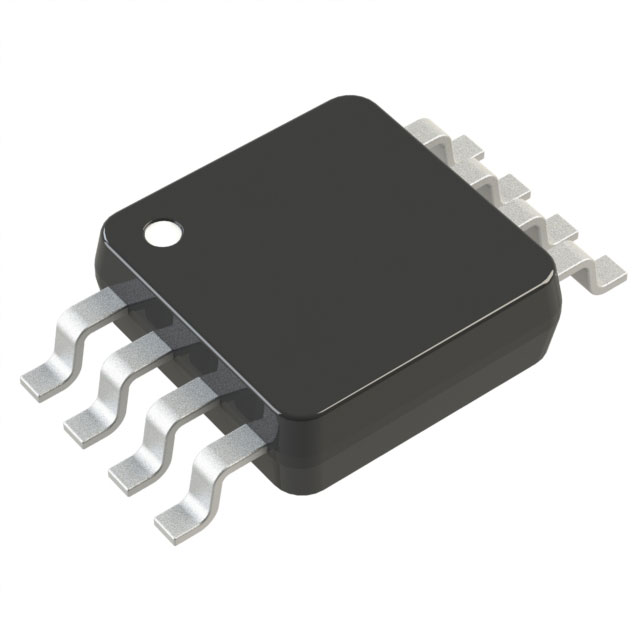

HMC218BMS8GETR Description

The HMC218BMS8GETR is a high-performance, surface-mount RF mixer designed and manufactured by Analog Devices Inc. This device is part of the RF Mixers category and is specifically tailored for applications requiring a double-balanced mixer with outstanding performance in the frequency range of 3.5GHz to 8GHz. The HMC218BMS8GETR is compliant with the RoHS3 directive, indicating its commitment to environmental sustainability. It is also REACH unaffected, ensuring compliance with European chemical regulations. With a Moisture Sensitivity Level (MSL) of 1, the HMC218BMS8GETR is suitable for a wide range of environments without the need for special handling precautions.

HMC218BMS8GETR Features

• Frequency Range: The HMC218BMS8GETR operates within a frequency range of 3.5GHz to 8GHz, making it ideal for applications such as WiMax and other high-frequency communication systems.
• RF Type: Designed for WiMax applications, this mixer is optimized for performance in wireless broadband networks.
• Mounting Type: Surface Mount technology allows for compact integration into printed circuit boards, enhancing space efficiency in design.
• Package: The device is packaged in a Tape & Reel (TR) format, facilitating automated assembly processes and reducing production costs.
• Number of Mixers: Incorporating a single mixer, the HMC218BMS8GETR is designed for straightforward integration into complex RF systems.
• Down Converter: As a secondary attribute, the HMC218BMS8GETR functions as a down converter, enabling the conversion of high-frequency signals to lower, more manageable frequencies for further processing.

HMC218BMS8GETR Applications

The HMC218BMS8GETR is particularly well-suited for applications where high-frequency signal processing is required, such as:

• Wireless Communication Systems: Due to its WiMax-specific design, it is ideal for use in wireless broadband networks.
• Satellite Communications: The high-frequency range makes it suitable for satellite downlink applications.
• Military and Defense Electronics: The device's performance and reliability make it a prime choice for military communication systems.
• Telecommunication Infrastructure: The HMC218BMS8GETR can be used in base stations and other telecommunication equipment to ensure signal integrity over long distances.

Conclusion of HMC218BMS8GETR

The HMC218BMS8GETR from Analog Devices Inc. stands out as a robust and reliable choice for high-frequency RF mixing applications. Its performance benefits, such as a wide frequency range and RoHS3 compliance, combined with its surface-mount design, make it an ideal component for modern electronic systems requiring high-speed signal processing. The HMC218BMS8GETR's unique features and advantages position it as a preferred choice for applications in wireless communication, satellite, military, and telecommunication sectors.

HMC218BMS8GETR Documents

Download datasheets and manufacturer documentation for HMC218BMS8GETR

PCN :

Product Change Notification (PDF)
