BAT54A

BAT54A Description

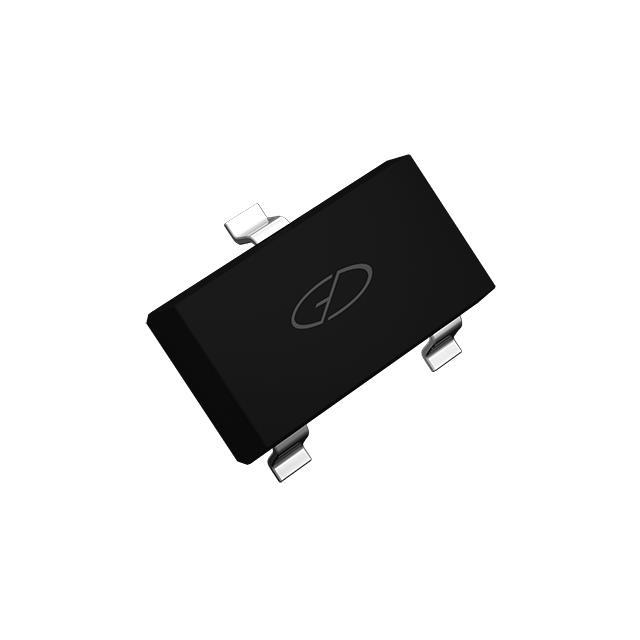

The BAT54A from Good Ark Semiconductor is a high-performance Schottky diode array configured as 1 Pair Common Anode, designed for small-signal applications with currents up to 200mA (Io). This surface-mount device (SMD) is housed in a compact SOT-23 package, making it ideal for space-constrained PCB designs. With a low forward voltage drop of 1V @ 100mA and a reverse voltage rating of 30V, it ensures efficient power management and minimal energy loss. The diode features an ultra-fast reverse recovery time (trr) of 5 ns, enabling high-speed switching in digital and analog circuits. Compliant with ROHS3 and REACH standards, it is environmentally friendly and suitable for modern electronic applications.

BAT54A Features

• Schottky Technology: Delivers low forward voltage and fast switching, reducing power dissipation.
• High-Speed Performance: 5 ns trr ensures minimal delay in switching applications.
• Low Leakage Current: 2 µA @ 25V enhances efficiency in low-power circuits.
• Compact SOT-23 Package: Optimized for high-density PCB layouts.
• Wide Operating Range: Supports 200mA average rectified current and 30V reverse voltage.
• Robust Compliance: ROHS3, REACH Unaffected, ECCN EAR99, and MSL 1 (Unlimited) for reliability in harsh environments.

BAT54A Applications

The BAT54A excels in high-frequency and low-power applications, including:

• Signal Clamping & Protection: Prevents voltage spikes in communication circuits.
• Power Management: Used in DC-DC converters, voltage regulators, and battery-powered devices.
• High-Speed Switching: Ideal for RF detectors, mixers, and logic circuits.
• Portable Electronics: Smartphones, wearables, and IoT devices benefit from its compact size and efficiency.
• Automotive & Industrial Systems: Reliable performance in harsh conditions due to robust construction.

Conclusion of BAT54A

The BAT54A Schottky diode array stands out for its fast switching, low power loss, and compact form factor, making it a superior choice for modern electronics. Its high-speed performance, low leakage, and compliance with environmental standards ensure reliability across diverse applications, from consumer electronics to industrial systems. Engineers seeking a cost-effective, high-efficiency diode for small-signal or high-frequency designs will find the BAT54A an optimal solution.
