BAV70

BAV70 Description

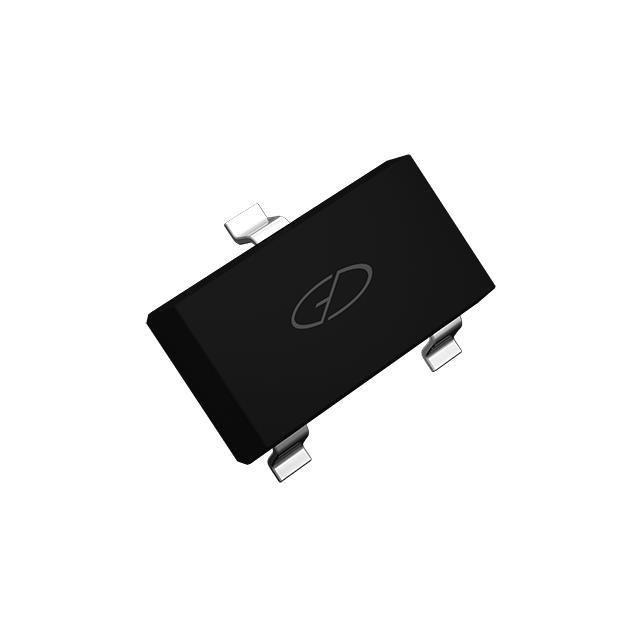

The BAV70 from Good Ark Semiconductor is a high-performance general-purpose diode array configured as 1 Pair Common Cathode, designed for small-signal and switching applications. With a 70V DC reverse voltage (Vr) and 200mA average rectified current (Io) per diode, it offers reliable performance in compact SOT-23 surface-mount packages. The device features a low forward voltage drop (1.25V @ 150mA) and minimal reverse leakage current (2.5µA @ 70V), ensuring efficient power management. Its fast reverse recovery time (6ns) makes it suitable for high-speed switching, while its 150°C junction temperature rating ensures robustness in demanding environments. Compliant with ROHS3 and REACH, the BAV70 is ideal for modern electronics requiring miniaturization and environmental compliance.

BAV70 Features

• High-Speed Switching: 6ns reverse recovery time (trr) for fast response in signal and switching circuits.
• Low Power Loss: 1.25V max forward voltage (Vf) minimizes energy dissipation.
• Compact & Reliable: SOT-23 package with MSL1 (Unlimited) moisture sensitivity, suitable for automated assembly.
• Wide Voltage Range: 70V reverse voltage (Vr) and 200mA current (Io) handle diverse circuit requirements.
• Environmental Compliance: ROHS3 and REACH unaffected, meeting global regulatory standards.
• Thermal Stability: 150°C max junction temperature ensures durability in high-temperature applications.

BAV70 Applications

The BAV70 excels in:

• High-Speed Signal Clipping & Protection: Used in RF and logic circuits for transient suppression.
• Switching Power Supplies: Fast recovery minimizes losses in DC-DC converters and SMPS.
• Signal Demodulation & Rectification: Ideal for small-signal processing in communication systems.
• Automotive & Industrial Electronics: Robust performance in harsh environments due to high-temperature tolerance.
• Portable Electronics: Compact SOT-23 footprint suits space-constrained designs like wearables and IoT devices.

Conclusion of BAV70

The BAV70 diode array stands out for its speed, efficiency, and compact design, making it a versatile choice for high-frequency and low-power applications. Its low leakage, fast recovery, and thermal resilience provide a competitive edge over standard diodes, while compliance with environmental standards ensures future-proof integration. Whether for consumer electronics, automotive systems, or industrial controls, the BAV70 delivers reliable performance in a miniaturized form factor.
