Microchip Technology

25LC020A-E/P

Memory ICs Products

25LC020A-E/P Description

The 25LC020A-E/P is a high-performance, 2Kbit EEPROM memory IC chip designed for a wide range of applications requiring reliable and efficient data storage. Manufactured by Microchip Technology, this device is equipped with a Serial Peripheral Interface (SPI) and operates within a voltage range of 2.5V to 5.5V, making it highly versatile and compatible with various systems. The memory is organized into 256 x 8 bits, offering a total storage capacity of 2Kbit. With a clock frequency of 10 MHz, the 25LC020A-E/P ensures fast data transfer rates, essential for real-time applications. The write cycle time for a word or page is a mere 5ms, further enhancing its performance.

25LC020A-E/P Features

• Memory Interface: The 25LC020A-E/P utilizes the SPI interface, which is widely adopted in the electronics industry for its simplicity and efficiency. This interface allows for straightforward integration with microcontrollers and other digital systems.
• Memory Organization: The memory is organized into 256 x 8 bits, providing a total of 2Kbit of storage. This organization ensures efficient data management and quick access times.
• Voltage Range: The device operates within a wide voltage range of 2.5V to 5.5V, making it suitable for a variety of power supply conditions and ensuring compatibility with different systems.
• Clock Frequency: With a clock frequency of 10 MHz, the 25LC020A-E/P offers high-speed data transfer, crucial for applications requiring rapid data processing.
• Write Cycle Time: The write cycle time of 5ms ensures that data can be written quickly, minimizing delays and enhancing overall system performance.

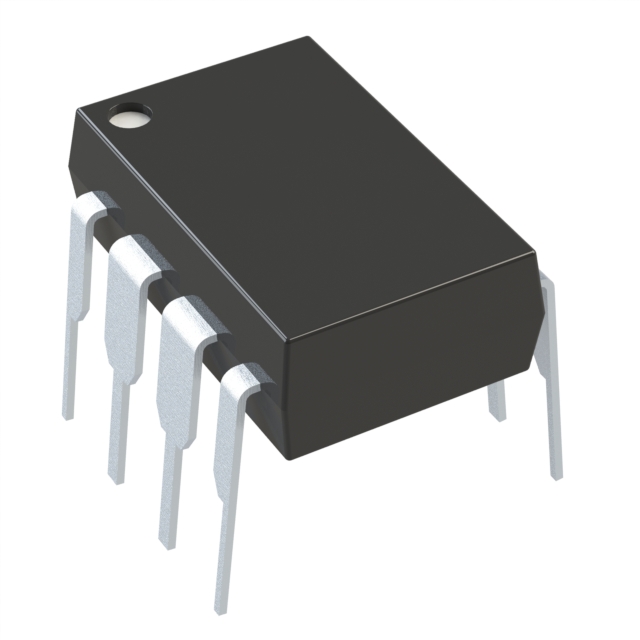

• Packaging: The 25LC020A-E/P is available in a through-hole package, specifically an 8DIP tube, which is ideal for applications requiring robust mechanical stability and easy installation.
• Compliance: The device is REACH unaffected and RoHS3 compliant, ensuring it meets the highest environmental and safety standards.
• Product Status: The 25LC020A-E/P is an active product, indicating that it is currently in production and readily available for purchase.

25LC020A-E/P Applications

The 25LC020A-E/P is ideal for a variety of applications where reliable and efficient data storage is required. Some specific use cases include:

• Embedded Systems: The 25LC020A-E/P is well-suited for embedded systems that require non-volatile memory for storing configuration data, calibration parameters, and other critical information.
• Industrial Automation: In industrial environments, the device can be used to store data related to machine settings, operational parameters, and historical data for diagnostics and maintenance.
• Consumer Electronics: The 25LC020A-E/P can be employed in consumer electronics for storing user preferences, device settings, and firmware updates.
• Telecommunications: In telecommunication systems, the device can store configuration data and network parameters, ensuring reliable operation and quick recovery from power failures.
• Automotive: The robustness and reliability of the 25LC020A-E/P make it suitable for automotive applications, where it can store critical data such as vehicle settings, diagnostic information, and firmware updates.

Conclusion of 25LC020A-E/P

The 25LC020A-E/P from Microchip Technology is a versatile and high-performance EEPROM memory IC chip that offers a range of technical specifications and performance benefits. Its wide voltage range, fast clock frequency, and quick write cycle time make it an ideal choice for applications requiring reliable and efficient data storage. The device's compliance with environmental and safety standards further enhances its appeal. Whether used in embedded systems, industrial automation, consumer electronics, telecommunications, or automotive applications, the 25LC020A-E/P provides a robust and reliable solution for data storage needs.

25LC020A-E/P Documents

Download datasheets and manufacturer documentation for 25LC020A-E/P

Datasheets :

25AA020A, 25LC020A

PCN Packaging :

Packing Changes 10/Oct/2016       Label and Packing Changes 23/Sep/2015

Design Resources :

25LC020A Development Tool Selector

HTML Datasheet :

25AA020A, 25LC020A

PCN Design/Specification :

25AA020A/25LC020A 06/Jan/2022

Environmental Information :

Microchip CA Prop65       Microchip RoHS       Microchip REACH
