Microchip Technology

AT21CS01-UUM0B-T

Memory ICs Products

AT21CS01-UUM0B-T Description

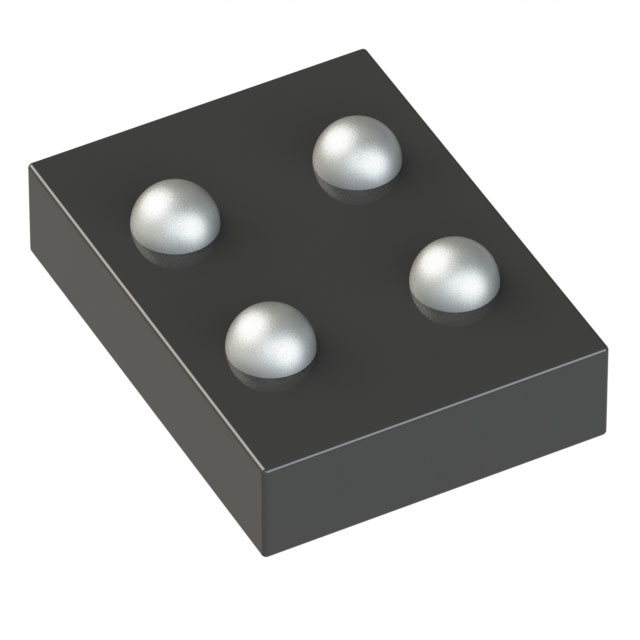

The AT21CS10-UUM0B-T is a 1Kbit EEPROM memory IC chip designed for reliable and efficient data storage in a variety of electronic applications. Manufactured by Microchip Technology, this device is housed in a 4WLCSP package and is optimized for surface mount technology. The AT21CS01-UUM0B-T features a memory organization of 128 x 8 bits, providing a total memory size of 1Kbit. It supports a clock frequency of 125 kbps and operates within a supply voltage range of 1.7V to 3.6V. The memory interface is versatile, supporting both I2C and Single Wire protocols, making it suitable for a wide range of communication needs.

AT21CS01-UUM0B-T Features

• Memory Technology: The AT21CS01-UUM0B-T utilizes EEPROM technology, which ensures non-volatile data storage, allowing data to be retained even when power is removed.
• Memory Organization: The device is organized into 128 x 8 bits, providing a total memory size of 1Kbit. This organization allows for efficient data storage and retrieval.
• Communication Protocols: The AT21CS01-UUM0B-T supports both I2C and Single Wire interfaces, offering flexibility in communication options and compatibility with various systems.
• Write Cycle Time: With a write cycle time of 5ms for word and page operations, the AT21CS01-UUM0B-T ensures fast and efficient data writing.
• Supply Voltage Range: The device operates within a supply voltage range of 1.7V to 3.6V, making it suitable for low-power applications and ensuring compatibility with a wide range of power supplies.
• Mounting Type: The AT21CS01-UUM0B-T is designed for surface mount technology, providing a compact and reliable solution for space-constrained applications.
• Moisture Sensitivity Level: The device has a moisture sensitivity level (MSL) of 3, with a storage time of 168 hours, ensuring reliability and durability in various environmental conditions.
• Compliance: The AT21CS01-UUM0B-T is REACH unaffected and ROHS3 compliant, adhering to stringent environmental and safety standards.

AT21CS01-UUM0B-T Applications

The AT21CS01-UUM0B-T is ideal for applications requiring reliable and efficient data storage in a compact form factor. Its versatile communication protocols and low-power operation make it suitable for a wide range of electronic systems. Specific use cases include:

• Consumer Electronics: Ideal for devices such as smartphones, tablets, and digital cameras where compact and reliable data storage is essential.
• Industrial Control Systems: Suitable for applications requiring non-volatile memory storage, such as programmable logic controllers (PLCs) and industrial sensors.
• Automotive Electronics: The device's robustness and reliability make it suitable for automotive applications, including engine control units (ECUs) and infotainment systems.
• IoT Devices: The AT21CS01-UUM0B-T is well-suited for Internet of Things (IoT) devices, where low power consumption and efficient data storage are critical.

Conclusion of AT21CS01-UUM0B-T

The AT21CS01-UUM0B-T is a high-performance EEPROM memory IC chip that offers a reliable and efficient solution for data storage in various electronic applications. Its versatile communication protocols, low-power operation, and compact surface mount design make it an ideal choice for modern electronic systems. With its robust features and compliance with industry standards, the AT21CS01-UUM0B-T stands out as a superior option for applications requiring non-volatile memory storage.

AT21CS01-UUM0B-T Documents

Download datasheets and manufacturer documentation for AT21CS01-UUM0B-T
