Microchip Technology

ATMEGA168PA-15AZ

Microcontrollers

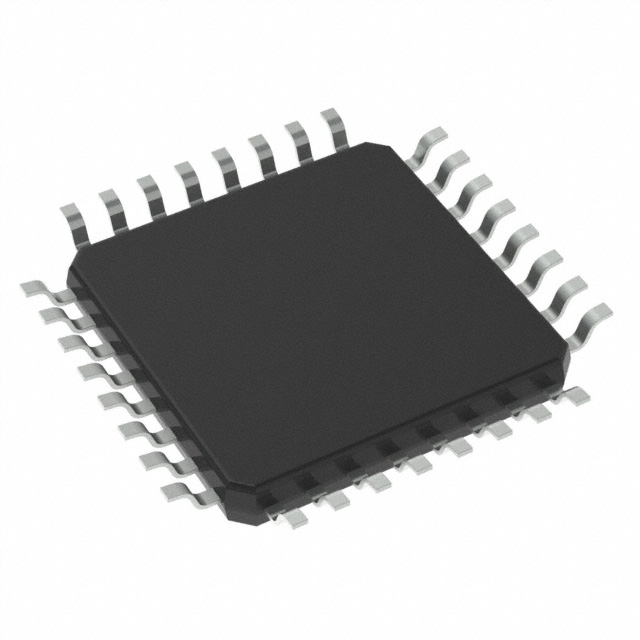

Microchip Technology's ATMEGA168PA-15AZ is a low-power, high-performance 8-bit microcontroller unit (MCU) based on the AVR enhanced low-power architecture. It is designed for a wide range of applications, including industrial control, medical devices, and portable electronics.

Description:

The ATMEGA168PA-15AZ features 16 KB of in-system programmable flash memory for storing the program code, 1 KB of EEPROM, and 1 KB of SRAM. It operates at a frequency of up to 16 MHz and has a wide operating voltage range of 1.8 to 5.5 volts. The device is available in a 32-pin QFN package.

Features:

1. 16 KB of In-System Programmable Flash Memory
2. 1 KB EEPROM
3. 1 KB SRAM
4. 1.8 to 5.5 V Operating Voltage Range
5. 16 MHz Maximum Operating Frequency
6. 32 General Purpose I/O Lines
7. 8-channel, 10-bit Analog-to-Digital Converter (ADC)
8. 6-channel PWM
9. USART, SPI, and TWI (I2C) Communication Interfaces
10. On-chip Debug System with JTAG Interface
11. Sleep, Power-down, and Power-save Modes for Low Power Consumption
12. Watchdog Timer and Brown-out Detector
13. 32-pin QFN Package

Applications:

1. Industrial Control Systems
2. Medical Devices
3. Portable Electronics
4. Home Automation and Smart Home Devices
5. Data Acquisition and Signal Processing
6. Battery Management Systems
7. Inertial Measurement Units (IMUs)
8. Robotics and Automation
9. IoT Devices and Sensors
10. Automotive Control Systems

The ATMEGA168PA-15AZ is a versatile and efficient microcontroller suitable for a wide range of applications, offering a good balance between performance, power consumption, and cost. Its low-power features make it an ideal choice for battery-powered devices, while its robust communication interfaces and peripherals enable easy integration into complex systems.

ATMEGA168PA-15AZ Documents

Download datasheets and manufacturer documentation for ATMEGA168PA-15AZ

Errata :

ATmega48A/PA/88A/PA/168A/PA/328/P Errata

PCN Assembly/Origin :

Mult Dev 11/Dec/2019

Datasheets :

ATmega48/88/168PA Datasheet

PCN Packaging :

Boxes 07/Dec/2016       MBB/Label Chgs 16/Nov/2018

Design Resources :

ATmega168 Development Tool Selector

PCN Design/Specification :

Marking Chgs 11/Jul/2017       ATMEGA Datasheet 13/Dec/2018

Environmental Information :

Microchip CA Prop65       Microchip RoHS       Microchip REACH
