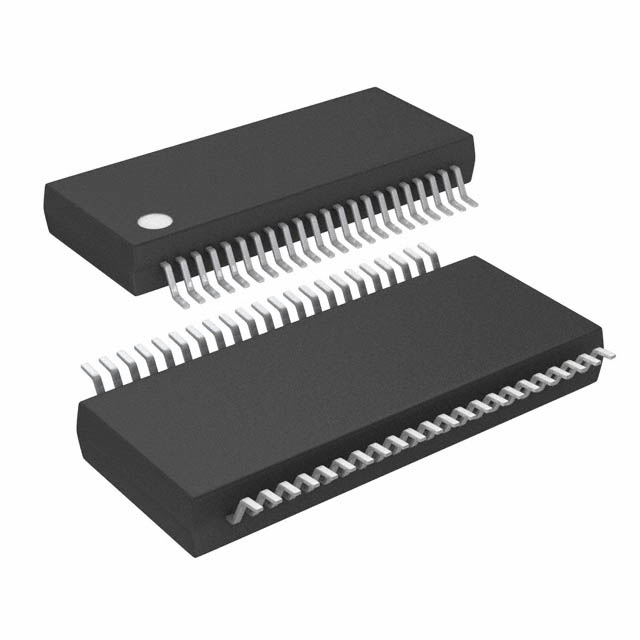

ATMEGA16HVB-8X3R

ATMEGA16HVB-8X3R Description

The ATMEGA16HVB-8X3R is an 8-bit microcontroller from Microchip Technology's AVR® ATmega series, designed for a wide range of embedded applications. This microcontroller features a robust AVR core processor, capable of operating at a speed of 8MHz, making it suitable for applications requiring moderate processing power. The device is equipped with 16KB of FLASH program memory (8K x 16), 1KB of RAM (1K x 8), and 512 bytes of EEPROM (512 x 8), providing ample storage for both code and data.

The ATMEGA16HVB-8X3R supports a wide supply voltage range of 4V to 25V, making it versatile for various power supply conditions. It includes an internal oscillator, eliminating the need for external clock components and reducing overall system complexity. The microcontroller also features 17 I/O pins, which can be configured for various input and output operations, enhancing its flexibility in different applications.

ATMEGA16HVB-8X3R Features

• Core Processor: The AVR core processor ensures efficient execution of instructions, providing reliable performance in embedded systems.
• Program Memory: 16KB of FLASH memory (8K x 16) allows for substantial code storage, making it suitable for complex applications.
• RAM and EEPROM: 1KB of RAM (1K x 8) and 512 bytes of EEPROM (512 x 8) provide sufficient data storage and retention capabilities.
• Wide Voltage Range: The 4V to 25V supply voltage range ensures compatibility with a variety of power sources.
• Internal Oscillator: The internal oscillator simplifies design by eliminating the need for external clock components.
• Data Converters: The microcontroller includes 7-channel 12-bit A/D converters, enabling precise analog signal processing.
• Peripherals: Features such as Power-On Reset (POR) and Watchdog Timer (WDT) enhance system reliability and robustness.
• Connectivity: Supports I2C and SPI protocols, facilitating communication with other devices and peripherals.
• Mounting Type: Surface mount technology (SMT) ensures ease of integration into compact and high-density designs.
• Package: Available in Tape & Reel (TR) packaging, suitable for automated assembly processes.
• Compliance: The device is REACH unaffected and ROHS3 compliant, meeting environmental and regulatory standards.

ATMEGA16HVB-8X3R Applications

The ATMEGA16HVB-8X3R is ideal for a variety of applications, including:

• Consumer Electronics: Suitable for devices requiring moderate processing power and data storage, such as small appliances and home automation systems.
• Industrial Control: Ideal for applications needing reliable performance and a wide operating voltage range, such as motor control and sensor interfacing.
• Automotive: Can be used in automotive applications where a robust and versatile microcontroller is required, such as in-vehicle infotainment systems and electronic control units.
• Medical Devices: Applicable in medical equipment where precise analog signal processing and reliable operation are crucial.
• Communication Systems: Useful in communication devices requiring I2C and SPI connectivity for interfacing with other components.

Conclusion of ATMEGA16HVB-8X3R

The ATMEGA16HVB-8X3R is a versatile and reliable 8-bit microcontroller, offering a comprehensive set of features and capabilities that make it suitable for a wide range of embedded applications. Its robust AVR core processor, extensive memory options, and wide operating voltage range ensure it can handle various tasks efficiently. The inclusion of an internal oscillator, multiple I/O pins, and advanced data converters further enhances its flexibility and performance.

While the ATMEGA16HVB-8X3R is now considered obsolete, it remains a valuable component for legacy systems and applications where its unique features and capabilities are still highly beneficial. For new projects, designers may consider exploring newer models from Microchip Technology's extensive portfolio, which offer enhanced performance and additional features.
