Microchip Technology

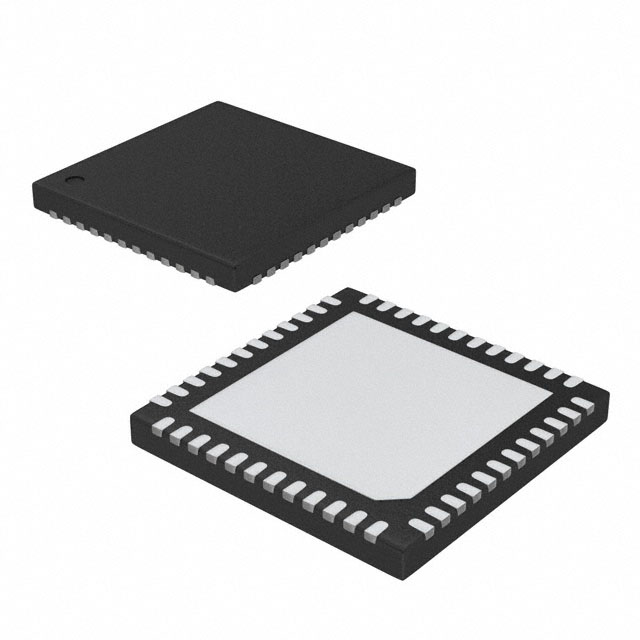

ATSAMD21G17L-MNT

Microcontrollers

The ATSAMD21G17L-MNT is a low-power microcontroller unit (MCU) from Microchip Technology. It is part of the SAM D21 family of ARM Cortex-M0+ based MCUs, which are designed for a wide range of applications that require low power consumption and high performance.

Description:

The ATSAMD21G17L-MNT features a 32-bit ARM Cortex-M0+ processor with a maximum clock speed of 48 MHz. It includes 256 KiB of flash memory, 32 KiB of SRAM, and 4 KiB of non-volatile memory. The MCU also has a range of peripherals, including USB, SERCOM (Serial Communication Interface), ADC (Analog-to-Digital Converter), DAC (Digital-to-Analog Converter), and a range of timers and PWM (Pulse Width Modulation) channels.

Features:

• 32-bit ARM Cortex-M0+ processor with a maximum clock speed of 48 MHz
• 256 KiB of flash memory
• 32 KiB of SRAM
• 4 KiB of non-volatile memory
• USB interface with high-speed and full-speed support
• SERCOM for serial communication (SPI, I2C, UART)
• 12-bit ADC with up to 20 channels
• 10-bit DAC with two channels
• A range of timers and PWM channels
• Low-power sleep modes to conserve energy
• Security features such as AES encryption and digital signature

Applications:

The ATSAMD21G17L-MNT is suitable for a wide range of applications that require low power consumption and high performance. Some potential applications include:

• Battery-powered devices such as fitness trackers, health monitors, and portable instruments
• Industrial control and monitoring systems
• Home automation and IoT devices
• Medical devices such as heart rate monitors and glucometers
• Wireless communication devices such as Zigbee and Bluetooth Low Energy (BLE) modules
• Human-Machine Interface (HMI) devices such as control panels and displays

Overall, the ATSAMD21G17L-MNT is a versatile and powerful MCU that can be used in a wide range of applications where low power consumption and high performance are required. Its range of features and peripherals make it a popular choice for many embedded systems designers.

ATSAMD21G17L-MNT Documents

Download datasheets and manufacturer documentation for ATSAMD21G17L-MNT

Errata :

SAM D21 Family Errata, Clarification

PCN Assembly/Origin :

Assembly Site 05/Jun/2023

Datasheets :

SAM D21/DA1 Family Datasheet

PCN Packaging :

MBB/Label Chgs 16/Nov/2018

PCN Design/Specification :

SAM D21/DA1 10/Sep/2021       SAM D21/DA1 05/Apr/2021

Environmental Information :

Microchip CA Prop65       Microchip RoHS       Microchip REACH
