Microchip Technology

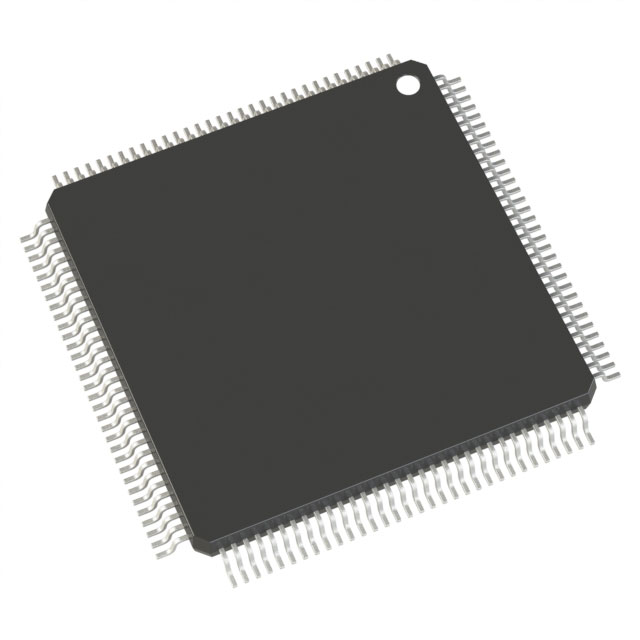

PIC32CX1025SG41128T-E/Z2X

Microcontrollers

Microchip Technology's PIC32CX1025SG41128T-E/Z2X is a microcontroller unit (MCU) that is part of the PIC32CX family of devices. It is designed for use in a variety of applications, including industrial control, automotive, and medical devices.

Description:

The PIC32CX1025SG41128T-E/Z2X is a 32-bit microcontroller that features a high-performance MIPS microAptiv core. It is built on a 28-nanometer CMOS process and operates at a frequency of up to 48 MHz. The device includes a range of integrated peripherals, including a USB interface, UART, SPI, I2C, and CAN bus interfaces, as well as a range of timers and comparators.

Features:

• 32-bit MIPS microAptiv core with a clock speed of up to 48 MHz
• 1024 KB of on-chip flash memory for program storage
• 128 KB of on-chip SRAM for data storage
• USB interface for communication with other devices
• UART, SPI, I2C, and CAN bus interfaces for communication with other devices
• Range of timers and comparators for use in control applications
• Integrated ADC for analog signal processing
• Integrated DAC for digital-to-analog conversion
• Low-power modes for energy-efficient operation

Applications:

The PIC32CX1025SG41128T-E/Z2X is suitable for use in a variety of applications, including:

• Industrial control systems
• Automotive control systems
• Medical devices
• Home automation systems
• IoT devices
• Portable electronic devices

Overall, the PIC32CX1025SG41128T-E/Z2X is a powerful and versatile microcontroller that offers a range of features and capabilities for use in a wide range of applications. Its high-performance core, integrated peripherals, and low-power modes make it a popular choice for designers looking for a reliable and efficient MCU for their projects.

PIC32CX1025SG41128T-E/Z2X Documents

Download datasheets and manufacturer documentation for PIC32CX1025SG41128T-E/Z2X

Datasheets :

PIC32CX SG(41,60,61) Datasheet

PCN Design/Specification :

PIC32CX SG41/SG60/SG61 Datasheet 17/Oct/2023       PIC32CX Datasheet 15/Feb/2023

Environmental Information :

Microchip CA Prop65       Microchip RoHS       Microchip REACH
