SG117AT-883B

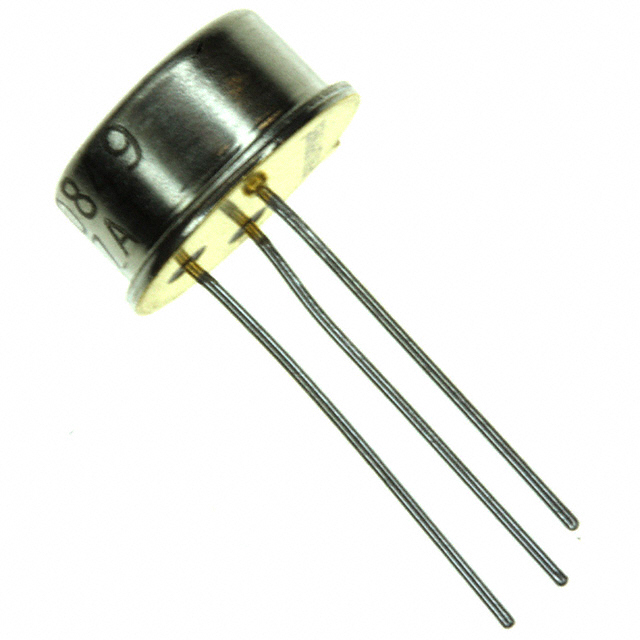

SG117AT-883B Description

The SG117AT-883B is a high-performance linear voltage regulator designed for demanding applications requiring precise voltage control and robust performance. Manufactured by Microchip Technology, this device offers an adjustable output voltage ranging from 1.25V to 37V, making it highly versatile for various electronic systems. With a maximum input voltage of 37V and a current output capability of 500mA, the SG117AT-883B is well-suited for applications that demand reliable power regulation.

This regulator features a positive output configuration and is housed in a through-hole TO-3 package, ensuring robust mechanical stability and ease of integration into existing circuit designs. The SG117AT-883B is designed to meet military-grade standards, providing exceptional reliability and performance in harsh environments. Its active product status and REACH-unaffected, ROHS3-compliant status ensure that it meets the latest environmental and regulatory requirements.

SG117AT-883B Features

• Adjustable Output Voltage: The SG117AT-883B offers an adjustable output voltage range from 1.25V to 37V, providing flexibility to meet the specific needs of various electronic systems.
• High Input Voltage Capability: With a maximum input voltage of 37V, this regulator can handle a wide range of input voltages, making it suitable for diverse applications.
• Robust Current Handling: The device supports a current output of up to 500mA, ensuring stable power delivery to connected components.
• Military-Grade Reliability: Designed to meet military-grade standards, the SG117AT-883B offers high reliability and performance in demanding environments.
• Over Current Protection: This feature ensures that the device is protected from overcurrent conditions, enhancing the overall reliability and longevity of the regulator.
• Low Moisture Sensitivity: With a moisture sensitivity level (MSL) of 1 (unlimited), the SG117AT-883B is suitable for use in environments with varying humidity levels.
• High PSRR: The regulator boasts a power supply rejection ratio (PSRR) of 65dB to 80dB at 120Hz, ensuring minimal noise and ripple in the output voltage.
• Through-Hole Mounting: The through-hole mounting type facilitates easy integration into printed circuit boards (PCBs) and ensures mechanical stability.

SG117AT-883B Applications

The SG117AT-883B is ideal for a variety of applications that require precise voltage regulation and robust performance. Some specific use cases include:

• Military and Aerospace Systems: The military-grade reliability and wide operating voltage range make this regulator suitable for critical systems where high performance and reliability are paramount.
• Industrial Control Systems: The device's ability to handle high input voltages and provide stable output currents ensures reliable power regulation in industrial environments.
• Telecommunications Equipment: The SG117AT-883B's adjustable output voltage and high PSRR make it ideal for powering sensitive communication components.
• Power Supply Units: The regulator's robust design and overcurrent protection features make it a reliable choice for power supply units in various electronic devices.

Conclusion of SG117AT-883B

The SG117AT-883B from Microchip Technology is a versatile and reliable linear voltage regulator designed to meet the demands of high-performance applications. Its adjustable output voltage, high input voltage capability, and robust current handling make it a standout choice in the market. The military-grade reliability and compliance with environmental standards further enhance its appeal. Whether used in military systems, industrial controls, or telecommunications equipment, the SG117AT-883B offers superior performance and reliability, making it an excellent choice for engineers and designers seeking a high-quality voltage regulator.
