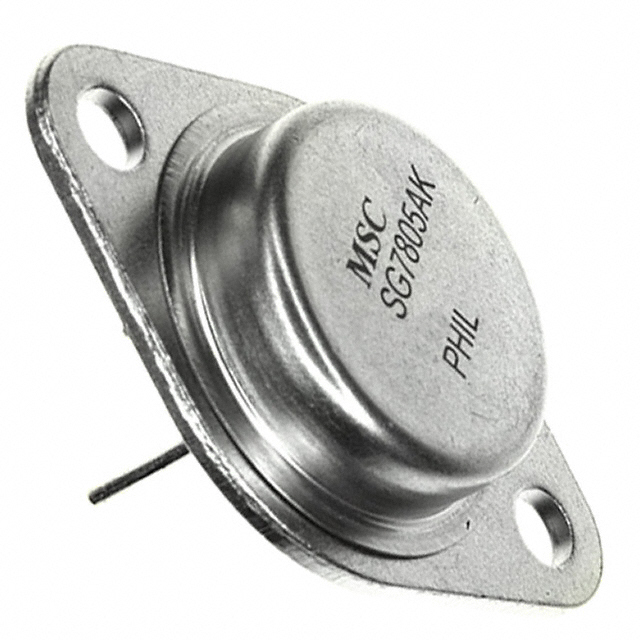

SG7805AK-883B

SG7805AK-883B Description

The SG7805AK-883B is a high-performance linear regulator designed by Microchip Technology, offering a fixed output voltage of 5V and a maximum output current of 1.5A. This device is specifically engineered for demanding applications requiring reliable power management solutions. With a maximum input voltage of 50V, the SG7805AK-883B ensures robust operation across a wide range of input conditions. The regulator is designed with a dropout voltage of 2.5V at 500mA, making it suitable for applications where efficiency and low power consumption are critical.

SG7805AK-883B Features

• Fixed Output Voltage: The SG7805AK-883B provides a stable 5V output, ensuring consistent power delivery to connected devices.
• High Output Current: With a maximum output current of 1.5A, this regulator can support a wide range of applications requiring significant power.
• Low Dropout Voltage: The 2.5V dropout voltage at 500mA ensures high efficiency, particularly in applications with input voltages close to the output voltage.
• Current Limit and Enable Control: These features provide enhanced control over the regulator's operation, allowing for precise management of power delivery and system protection.
• Over Current and Over Temperature Protection: These protection features safeguard the regulator and connected devices from damage due to overcurrent and overheating conditions.
• High PSRR: The 68dB power supply rejection ratio at 120Hz ensures that the regulator can effectively filter out noise from the input power supply, maintaining a clean output voltage.
• Military Grade: The SG7805AK-883B is designed to meet military standards, ensuring high reliability and performance in harsh environments.
• Through Hole Mounting: The through-hole mounting type provides a secure and durable installation, suitable for applications requiring robust mechanical stability.

SG7805AK-883B Applications

The SG7805AK-883B is ideal for a variety of applications where reliable power management is essential. Some specific use cases include:

• Military and Aerospace Equipment: The military-grade design and robust performance make this regulator suitable for critical systems requiring high reliability and performance in harsh environments.
• Industrial Control Systems: The high input voltage range and low dropout voltage ensure efficient power delivery in industrial applications where power efficiency and stability are crucial.
• Telecommunications Infrastructure: The regulator's ability to handle high input voltages and provide a stable output makes it ideal for powering telecommunication equipment.
• Automotive Electronics: The SG7805AK-883B can be used in automotive applications where reliability and performance are paramount, and the ability to handle transient voltage spikes is essential.

Conclusion of SG7805AK-883B

The SG7805AK-883B from Microchip Technology is a versatile and reliable linear regulator designed to meet the demands of high-performance applications. Its fixed 5V output and 1.5A output current capability, combined with low dropout voltage and robust protection features, make it an excellent choice for a wide range of applications. The military-grade design ensures high reliability and performance in harsh environments, while the through-hole mounting type provides secure and durable installation. Whether used in military, industrial, telecommunications, or automotive applications, the SG7805AK-883B delivers consistent power management and enhanced system protection.
