Micron Technology

M25P80-VMC6TG TR

Memory ICs Products

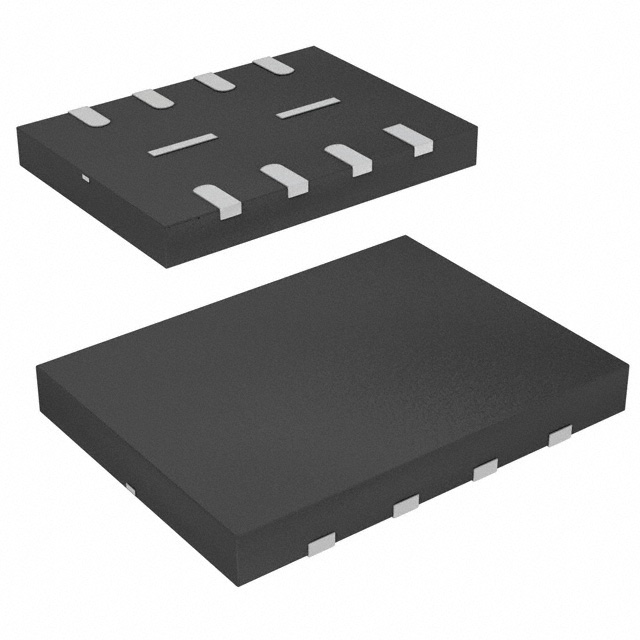

M25P80-VMC6TG TR Description

The M25P80-VMC6TG TR is a high-performance, 8Mbit SPI Flash memory IC designed for a wide range of embedded systems and consumer electronics applications. Manufactured by Micron Technology, this device offers robust performance and reliability, making it an ideal choice for applications requiring non-volatile memory storage. With a memory organization of 1M x 8, it provides a compact and efficient solution for storing firmware and data.

M25P80-VMC6TG TR Features

• Memory Size and Organization: The M25P80-VMC6TG TR features an 8Mbit memory size organized as 1M x 8, providing ample storage for firmware and data in a compact footprint.
• High-Speed SPI Interface: Equipped with a high-speed SPI interface, this Flash memory IC supports a clock frequency of up to 75 MHz, ensuring fast data transfer rates and efficient performance in demanding applications.
• Write Cycle Time: The device offers a write cycle time of 15ms for a word and 5ms for a page, enabling quick and efficient data writing operations.
• Supply Voltage Range: The M25P80-VMC6TG TR operates within a supply voltage range of 2.7V to 3.6V, providing flexibility and compatibility with various power supply configurations.
• Surface Mount Technology: Available in a surface mount package, this IC is suitable for automated assembly processes, reducing manufacturing costs and improving reliability.
• Moisture Sensitivity Level: With a moisture sensitivity level (MSL) of 3 (168 hours), the device is well-suited for applications in environments with varying humidity levels.
• Compliance and Standards: The M25P80-VMC6TG TR is REACH unaffected and RoHS3 compliant, ensuring it meets the stringent environmental and safety standards required in the electronics industry.
• Packaging: Supplied in a tape and reel (TR) package, this format is ideal for bulk handling and automated placement in manufacturing processes.

M25P80-VMC6TG TR Applications

The M25P80-VMC6TG TR is ideal for a variety of applications where reliable, non-volatile memory storage is essential. Some specific use cases include:

• Embedded Systems: Ideal for storing firmware and configuration data in embedded systems, ensuring reliable operation and quick boot times.
• Consumer Electronics: Suitable for applications such as digital cameras, MP3 players, and other portable devices where compact and efficient memory solutions are required.
• Industrial Control Systems: Provides a robust and reliable memory solution for industrial control systems, ensuring data integrity and system performance.
• Automotive Electronics: With its high performance and reliability, the M25P80-VMC6TG TR can be used in automotive applications for storing critical data and firmware.

Conclusion of M25P80-VMC6TG TR

The M25P80-VMC6TG TR from Micron Technology is a versatile and high-performance SPI Flash memory IC that offers a reliable and efficient solution for a wide range of applications. Its high-speed SPI interface, compact memory organization, and robust performance make it an excellent choice for embedded systems, consumer electronics, industrial control systems, and automotive electronics. With its compliance to industry standards and flexible packaging options, the M25P80-VMC6TG TR ensures compatibility and ease of integration into various manufacturing processes. Despite being marked as obsolete, this device remains a valuable option for applications requiring a proven and reliable Flash memory solution.

M25P80-VMC6TG TR Documents

Download datasheets and manufacturer documentation for M25P80-VMC6TG TR

Datasheets :

M25P80

PCN Packaging :

Standard Pkg Label Chg 20/Feb/2019       Label 12/Sep/2016

PCN Obsolescence/ EOL :

EOL 05/Dec/2016
