MP6400DG-01-LF-Z

Supervisors

MP6400DG-01-LF-Z Description

The MP6400DG-01-LF-Z is a high-performance supervisor IC designed by Monolithic Power Systems Inc., offering advanced voltage monitoring and reset functionality. This 1-channel supervisor is available in a compact 6QFN package, making it ideal for space-constrained applications. With an active low reset and adjustable reset timeout, the MP6400DG-01-LF-Z provides reliable system protection and recovery.

MP6400DG-01-LF-Z Features

• Voltage Threshold: 0.4V, ensuring accurate voltage monitoring
• Number of Voltages Monitored: 1, simplifying design and reducing component count
• Output: Open Drain or Open Collector, offering flexibility in system design
• Reset: Active Low, providing clear and reliable reset signals
• Adjustable/Selectable Reset Timeout: Allows for customization of reset behavior
• Mounting Type: Surface Mount, suitable for PCB integration

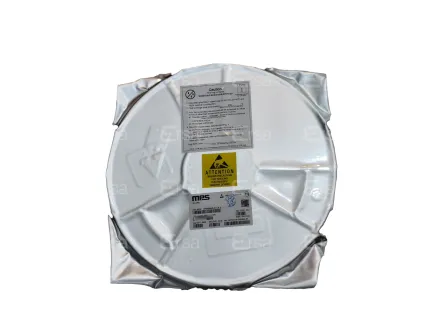

• Package: Tape & Reel (TR)
• RoHS Compliance: ROHS3 Compliant, ensuring environmental responsibility
• REACH Status: REACH Unaffected, adhering to European chemical regulations
• Moisture Sensitivity Level (MSL): 1 (Unlimited), indicating low sensitivity to moisture

MP6400DG-01-LF-Z Applications

The MP6400DG-01-LF-Z is well-suited for a variety of applications where reliable voltage monitoring and reset functionality are critical. Some ideal use cases include:

• Power Management Systems: Ensuring stable power supply and system recovery
• Automotive Electronics: Protecting critical systems from voltage fluctuations
• Industrial Control Systems: Providing robust system protection in harsh environments
• Telecommunications Equipment: Ensuring reliable operation and system recovery

Conclusion of MP6400DG-01-LF-Z

The MP6400DG-01-LF-Z is a versatile and reliable supervisor IC, offering advanced features such as adjustable reset timeout and open drain/output collector flexibility. Its compact 6QFN package and surface mount design make it ideal for a wide range of applications, from power management systems to automotive electronics. With its RoHS and REACH compliance, the MP6400DG-01-LF-Z is not only a high-performance solution but also an environmentally responsible choice for your next project.

MP6400DG-01-LF-Z Documents

Download datasheets and manufacturer documentation for MP6400DG-01-LF-Z

Datasheets :

MP6400 Datasheet

HTML Datasheet :

MP6400 Datasheet

Environmental Information :

MonolithicPower Systems Environmental Compliance Declaration
