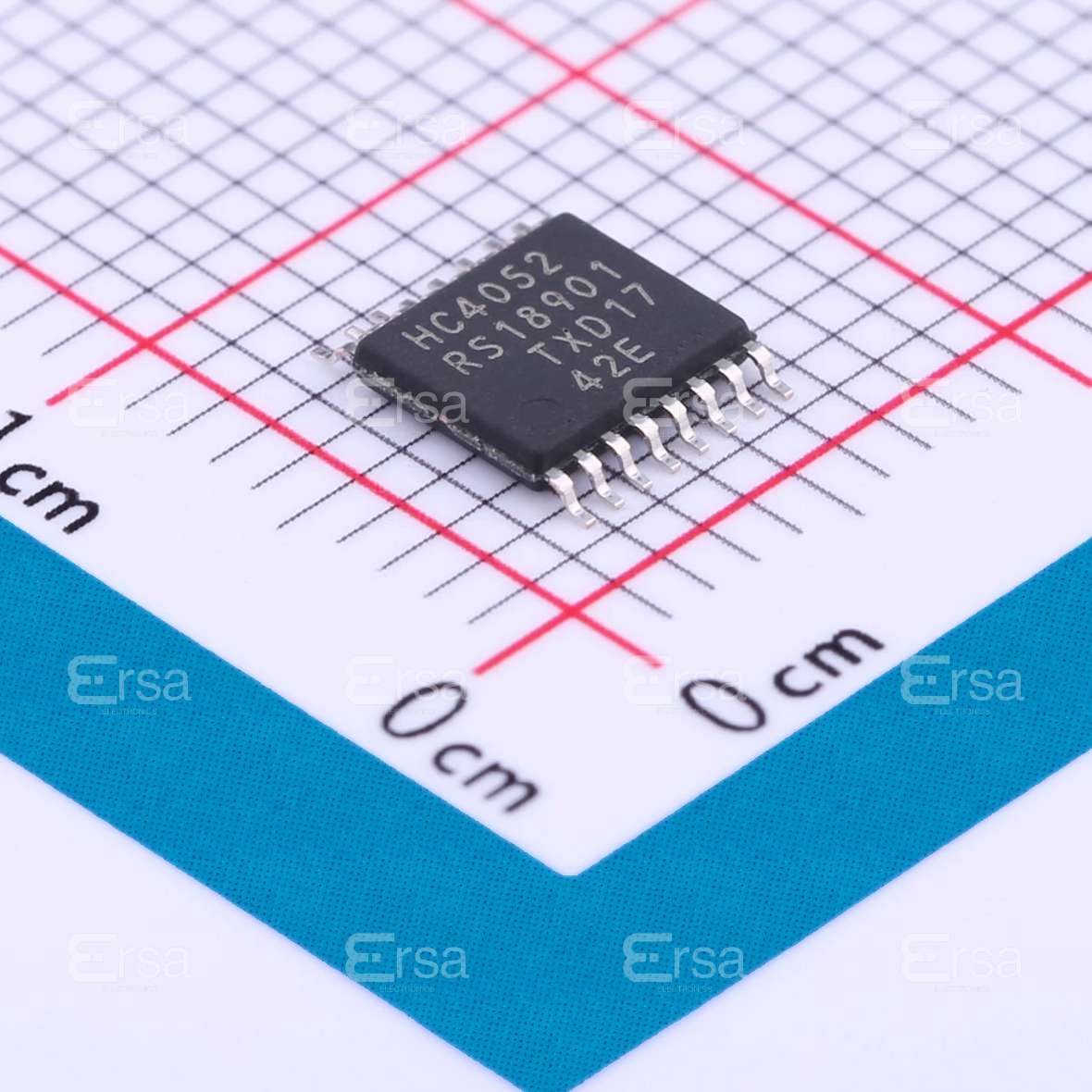

74HC4052PW,118

74HC4052PW,118 Description

The 74HC4052PW,118 is a high-performance, dual-channel analog switch manufactured by Nexperia USA Inc., designed for applications requiring precise signal routing and isolation. This device is part of the Analog Switches, Multiplexers, and Demultiplexers category and is currently in active production, ensuring ongoing availability and support.

74HC4052PW,118 Features

• Technical Specifications: The 74HC4052PW,118 boasts a low leakage current of 2µA, ensuring minimal power consumption in off-states. It operates over a wide supply voltage range of ±1.5V to 5V for dual supply and 2V to 10V for single supply, making it versatile for various power requirements. The device features an on-state resistance of a maximum 150Ohm, providing low insertion loss and high signal integrity.

• Performance Benefits: With a channel-to-channel matching of 6Ohm and channel capacitance of 3.5pF, the 74HC4052PW,118 ensures consistent performance across channels, crucial for applications demanding high channel matching. The switch time for both turn-on (Ton) and turn-off (Toff) is impressively low at 58ns and 48ns, respectively, facilitating fast signal switching without significant delay.

• Compliance and Packaging: This device is REACH unaffected and complies with ROHS3 standards, aligning with environmental regulations. It is packaged in a 16-TSSOP tape and reel, suitable for surface mount applications, facilitating easy integration into PCB designs.

74HC4052PW,118 Applications

• Ideal Use Cases: The 74HC4052PW,118 is ideal for applications where signal routing and isolation are critical, such as in audio and video processing, medical equipment, and industrial control systems. Its low leakage current and fast switching times make it suitable for high-speed data acquisition systems and communication interfaces.

• Unique Advantages: Compared to similar models, the 74HC4052PW,118 stands out with its wide operating voltage range, low on-state resistance, and fast switching times, providing a robust solution for demanding applications.

Conclusion of 74HC4052PW,118

The 74HC4052PW,118 from Nexperia is a robust dual-channel analog switch, offering a combination of low leakage current, wide operating voltage range, and fast switching times. Its compliance with environmental standards and surface mount packaging make it a versatile choice for a variety of applications in the electronics industry. With its unique features and performance benefits, the 74HC4052PW,118 is poised to meet the challenges of modern signal routing and isolation requirements.
