NTE4046B

NTE4046B Description

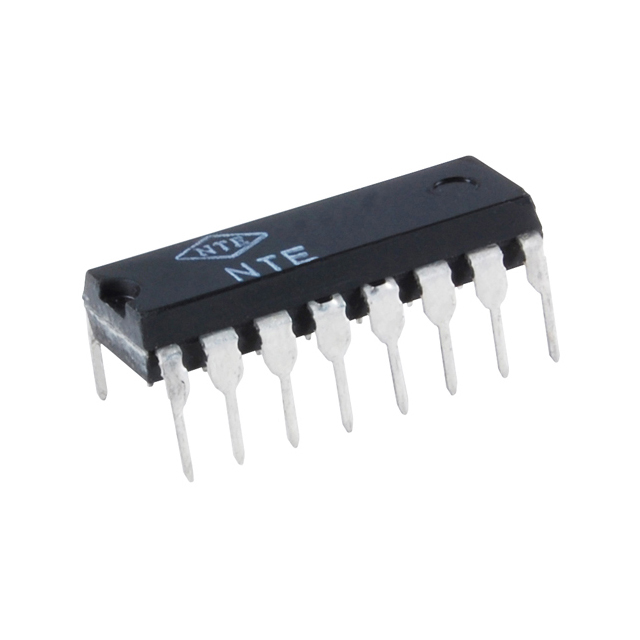

The NTE4046B is a versatile Phase Lock Loop (PLL) integrated circuit designed for a wide range of clock and timing applications. Manufactured by NTE Electronics, Inc., this 16DIP package offers robust performance and flexibility, making it an ideal choice for various electronic systems. The NTE4046B features a differential input/output configuration of No/No, ensuring compatibility with single-ended signal sources and loads. It operates within a broad supply voltage range of 0.5V to 20V, providing flexibility in power supply requirements. The device supports a maximum frequency of 1.6MHz and 2.4MHz, catering to diverse timing needs. With a through-hole mounting type, the NTE4046B is suitable for applications requiring reliable mechanical stability and ease of integration into existing circuit boards. The device is housed in a bag package, ensuring safe handling and storage. The NTE4046B is also RoHS3 compliant, adhering to stringent environmental standards and ensuring its suitability for modern, eco-friendly designs.

NTE4046B Features

The NTE4046B boasts several key features that set it apart from similar PLL ICs on the market:

• Phase Lock Loop (PLL) Type: The NTE4046B is specifically designed as a PLL, offering precise frequency synchronization and phase adjustment capabilities.
• Wide Supply Voltage Range: With a supply voltage range of 0.5V to 20V, the NTE4046B can operate in a variety of power environments, making it highly adaptable.
• High Frequency Capability: Supporting maximum frequencies of 1.6MHz and 2.4MHz, the NTE4046B is suitable for high-speed timing applications.
• Through-Hole Mounting: The through-hole mounting type ensures mechanical stability and ease of integration into existing circuit boards.
• Single Circuit Design: The NTE4046B is designed with a single circuit, simplifying design and reducing complexity.
• RoHS3 Compliance: The NTE4046B is RoHS3 compliant, ensuring it meets environmental standards and is suitable for modern, eco-friendly designs.

NTE4046B Applications

The NTE4046B is well-suited for a variety of applications due to its versatile design and robust performance:

• Clock Generation and Distribution: The NTE4046B can be used to generate and distribute precise clock signals in digital systems, ensuring accurate timing and synchronization.
• Frequency Synthesis: The PLL capabilities of the NTE4046B make it ideal for frequency synthesis applications, where stable and adjustable frequencies are required.
• Signal Processing: In signal processing applications, the NTE4046B can be used to lock onto and stabilize incoming signals, improving system performance and reliability.
• Communication Systems: The NTE4046B can be employed in communication systems to synchronize transmitter and receiver clocks, ensuring reliable data transmission.
• Industrial Automation: The robust design and wide operating voltage range of the NTE4046B make it suitable for industrial automation applications, where reliability and precision are paramount.

Conclusion of NTE4046B

The NTE4046B is a highly versatile and reliable Phase Lock Loop (PLL) IC that offers a wide range of features and benefits. Its broad operating voltage range, high-frequency capability, and through-hole mounting type make it suitable for a variety of applications, from clock generation to signal processing. The device's RoHS3 compliance ensures it meets modern environmental standards, making it an ideal choice for eco-friendly designs. With its robust performance and flexible design, the NTE4046B stands out as a reliable and efficient solution for clock and timing applications in the electronics industry.
