NXP Semiconductors

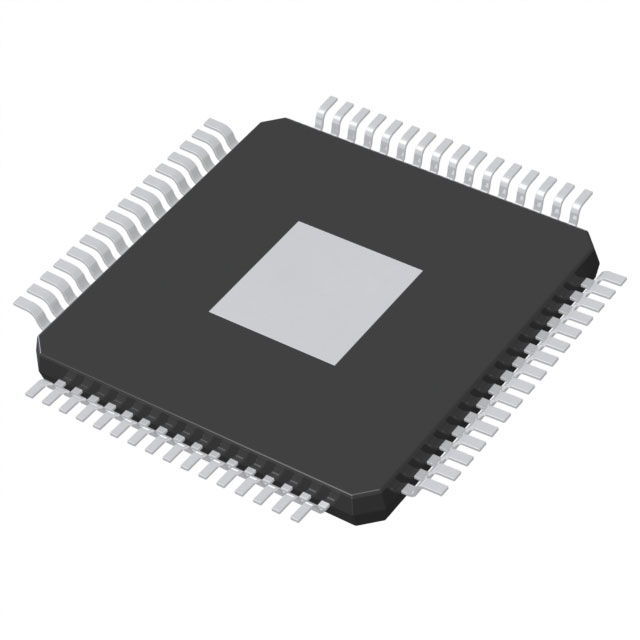

LPC5502JBD64E

Microcontrollers

The LPC5502JBD64E is a microcontroller unit (MCU) developed by NXP Semiconductors. It is part of the LPC5500 series of MCUs, which are designed for a wide range of applications, including industrial control, medical devices, and IoT devices.

Description:

The LPC5502JBD64E is a high-performance, low-power MCU that features an Arm Cortex-M33 processor with a 180 MHz clock speed. It is equipped with a range of peripherals, including USB, I2C, SPI, UART, and CAN interfaces, making it suitable for a variety of communication protocols. The MCU also includes a range of memory options, including 64 KB of L1 cache, 512 KB of L2 cache, and up to 512 KB of FlexSPI memory.

Features:

• Arm Cortex-M33 processor with 180 MHz clock speed
• Peripherals: USB, I2C, SPI, UART, and CAN interfaces
• Memory options: 64 KB L1 cache, 512 KB L2 cache, and up to 512 KB FlexSPI memory
• Security features: Arm TrustZone technology and secure boot
• Low-power mode: Sleep mode, power-down mode, and deep power-down mode
• Integrated development tools: LPCXpresso IDE and CMSIS-Driver APIs

Applications:

The LPC5502JBD64E is suitable for a wide range of applications, including:

1. Industrial control: The MCU's high-performance processor and range of communication interfaces make it ideal for industrial control applications, such as motor control, sensor interfacing, and data acquisition.
2. Medical devices: The LPC5502JBD64E's low-power mode and security features make it suitable for medical devices, such as wearable health monitors and portable diagnostic equipment.
3. IoT devices: The MCU's integrated communication interfaces and low-power mode make it suitable for IoT devices, such as smart home appliances, environmental sensors, and industrial IoT gateways.
4. Automotive applications: The LPC5502JBD64E's robustness and low-power mode make it suitable for automotive applications, such as infotainment systems, body control modules, and advanced driver assistance systems (ADAS).
5. Networking equipment: The MCU's range of communication interfaces and high-performance processor make it suitable for networking equipment, such as routers, switches, and IoT gateways.

Overall, the LPC5502JBD64E is a versatile and powerful MCU that can be used in a wide range of applications, from industrial control to medical devices and IoT devices. Its high-performance processor, range of communication interfaces, and low-power mode make it an ideal choice for developers looking for a reliable and efficient MCU for their projects.

LPC5502JBD64E Documents

Download datasheets and manufacturer documentation for LPC5502JBD64E

PCN Assembly/Origin :

Wafer Fab 19/Mar/2023

Datasheets :

LPC55S0x/LPC550x

PCN Packaging :

All Dev Label Update 15/Dec/2020       LPC55- 05/Feb/2023

PCN Design/Specification :

Multi Design 02/25/2022       LPC55S0x/LPC550x 27/Apr/2023

Environmental Information :

NXP USA Inc REACH       NXP USA Inc RoHS Cert
