NXP Semiconductors

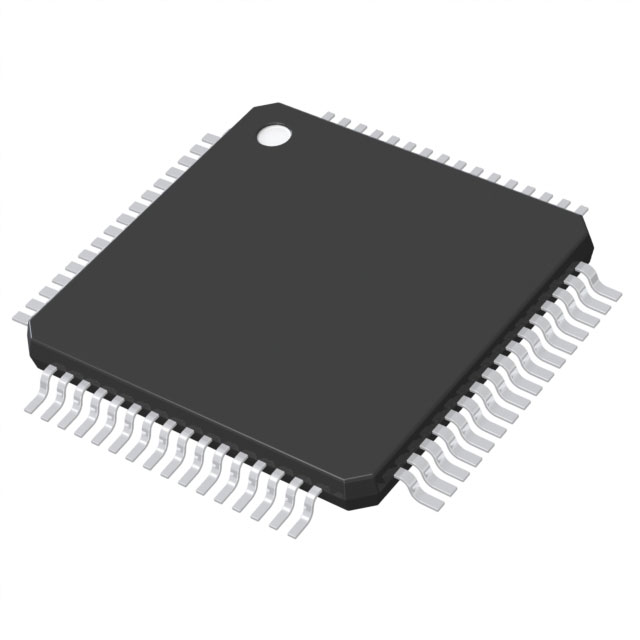

LPC5504JBD64E

Microcontrollers

The LPC5504JBD64E is a microcontroller unit (MCU) developed by NXP Semiconductors. It is part of the LPC550x family of MCUs, which are designed for industrial and IoT applications.

Description:

The LPC5504JBD64E is a high-performance MCU that features an Arm Cortex-M33 processor with a 32-bit memory protection unit (MPU) and a floating-point unit (FPU). It operates at a frequency of up to 150 MHz and includes a range of integrated peripherals, including USB, Ethernet, and various communication interfaces.

Features:

1. Arm Cortex-M33 processor with FPU and MPU
2. 32-bit memory protection unit (MPU)
3. Operating frequency up to 150 MHz
4. Integrated peripherals, including USB, Ethernet, and various communication interfaces
5. 64-pin package with 512 KB flash memory and 160 KB SRAM
6. Low-power modes for energy-efficient operation
7. Security features, including hardware-based encryption and secure boot

Applications:

The LPC5504JBD64E is suitable for a range of industrial and IoT applications, including:

1. Industrial control systems
2. Medical devices
3. Smart home devices
4. Wearable devices
5. Robotics
6. IoT gateways
7. Automotive infotainment systems

In summary, the LPC5504JBD64E is a high-performance MCU with a range of features that make it suitable for a variety of applications in the industrial and IoT markets. Its integrated peripherals and security features make it a versatile choice for developers looking to create reliable and secure products.

LPC5504JBD64E Documents

Download datasheets and manufacturer documentation for LPC5504JBD64E

PCN Assembly/Origin :

Wafer Fab 19/Mar/2023

Datasheets :

LPC55S0x/LPC550x

PCN Packaging :

All Dev Label Update 15/Dec/2020       LPC55- 05/Feb/2023

PCN Design/Specification :

Multi Design 02/25/2022       LPC55S0x/LPC550x 27/Apr/2023

Environmental Information :

NXP USA Inc REACH       NXP USA Inc RoHS Cert
