FPDB30PH60

FPDB30PH60 Description

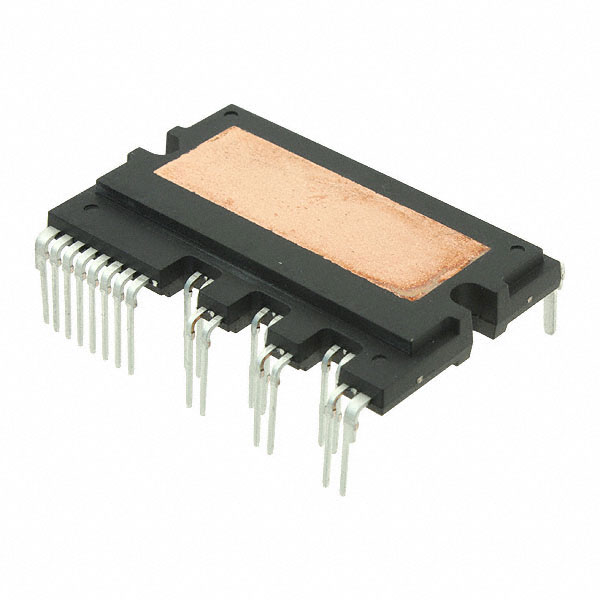

The FPDB30PH60 is a 2-phase, through-hole mounted power driver module designed for high-voltage applications. Manufactured by onsemi, this module is part of the PFC SPM® 3 series and features IGBT technology. With a voltage rating of 600V and a current rating of 20A, the FPDB30PH60 is suitable for a wide range of power electronics applications.

FPDB30PH60 Features

• 2-phase configuration for high-power applications
• 600V IGBT technology for efficient power management
• 20A current rating for demanding loads
• 2500Vrms isolation voltage for safety and reliability
• Through-hole mounting for easy integration into existing designs
• Tube packaging for protection and convenience
• Moisture Sensitivity Level (MSL) 1, allowing for unlimited storage time
• REACH unaffected status, ensuring compliance with European regulations
• EAR99 ECCN, facilitating international trade

Compared to similar models, the FPDB30PH60 offers a unique combination of high voltage, current, and isolation ratings, making it an ideal choice for demanding power electronics applications.

FPDB30PH60 Applications

The FPDB30PH60 is ideal for a variety of power electronics applications, including:

1. Power factor correction (PFC) circuits
2. Motor drives and control systems
3. Renewable energy systems, such as solar inverters and wind turbines
4. Industrial power supplies and converters
5. Electric vehicle (EV) charging infrastructure

These applications benefit from the FPDB30PH60's high voltage, current, and isolation ratings, as well as its robust construction and compliance with international regulations.

Conclusion of FPDB30PH60

The FPDB30PH60 is a high-performance, 2-phase power driver module designed for demanding applications in the power electronics industry. Its unique combination of high voltage, current, and isolation ratings, along with its robust construction and compliance with international regulations, make it an ideal choice for a wide range of applications. However, it is important to note that this product is now considered obsolete, and alternative solutions may be required for new designs.
