BU4001BF-E2

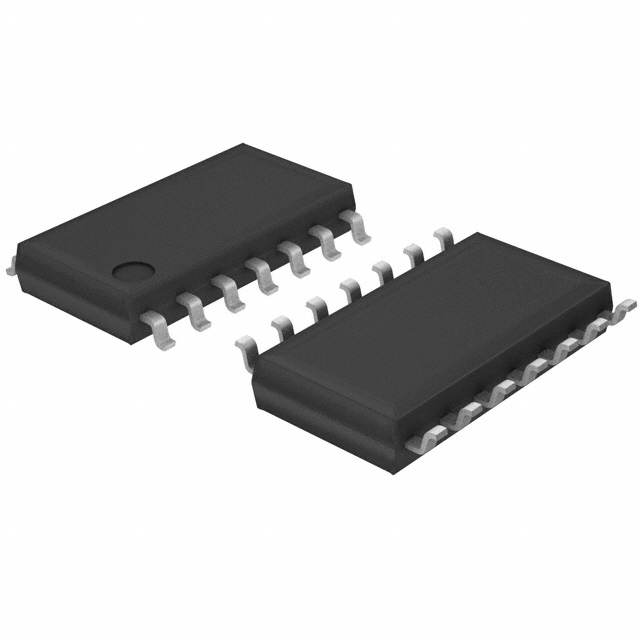

BU4001BF-E2 Description

The BU4001BF-E2 is a high-performance NOR gate logic IC chip manufactured by ROHM Semiconductor. This device is part of the 4000B series and is designed for surface mount applications. It features a maximum propagation delay of 40ns at 15V and 50pF, ensuring rapid signal processing and high-speed operation. The IC operates within a supply voltage range of 3V to 16V, making it versatile for various power supply configurations. With an input logic level low range of 1.5V to 4V and high range of 3.5V to 11V, the BU4001BF-E2 is compatible with a wide range of digital systems. The device includes four NOR gates, each with two inputs, providing a total of eight input connections and four output circuits.

BU4001BF-E2 Features

• High-Speed Operation: The BU4001BF-E2 boasts a maximum propagation delay of 40ns at 15V and 50pF, enabling swift signal processing and high-speed performance.
• Wide Voltage Range: The IC operates within a supply voltage range of 3V to 16V, offering flexibility for diverse power supply requirements.
• Low Quiescent Current: With a maximum quiescent current of 4 µA, the device is energy-efficient, making it suitable for low-power applications.
• Robust Output Current: The IC supports an output current of 1.2mA for high-level signals and 3mA for low-level signals, ensuring reliable performance under various load conditions.
• Surface Mount Compatibility: The BU4001BF-E2 is designed for surface mount technology, facilitating easy integration into modern printed circuit boards.
• Compliance and Safety: The device is REACH unaffected and RoHS3 compliant, adhering to stringent environmental and safety standards.
• Moisture Sensitivity Level: With an MSL rating of 1 (unlimited), the IC is highly resistant to moisture, ensuring long-term reliability in various environmental conditions.

BU4001BF-E2 Applications

The BU4001BF-E2 is ideal for a variety of applications due to its high-speed performance, wide voltage range, and low power consumption. Some specific use cases include:

• Digital Signal Processing: The rapid propagation delay and robust output current make it suitable for processing digital signals in communication systems and data processing units.
• Control Systems: The device's low quiescent current and wide voltage range make it an excellent choice for control systems in industrial automation and robotics.
• Consumer Electronics: The IC's compatibility with surface mount technology and compliance with environmental standards make it suitable for consumer electronics, such as smartphones, tablets, and home appliances.
• Automotive Electronics: The high moisture sensitivity level and robust performance ensure reliability in automotive applications, including engine control units and infotainment systems.

Conclusion of BU4001BF-E2

The BU4001BF-E2 is a versatile and high-performance NOR gate logic IC chip that offers significant advantages over similar models. Its wide voltage range, low quiescent current, and high-speed operation make it suitable for a variety of applications, from digital signal processing to automotive electronics. The device's compliance with environmental and safety standards, along with its robust output current and surface mount compatibility, further enhance its appeal. While the product is not recommended for new designs, it remains a reliable choice for existing systems and applications requiring high-performance logic gates.
