STMicroelectronics

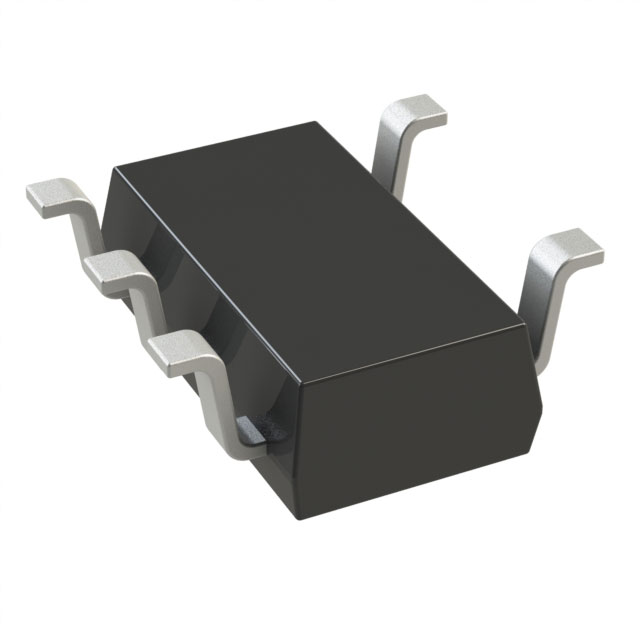

TSV631AILT

OP Amps, Buffer Amps ICs

TSV631AILT Description

The TSV631AILT is a high-performance operational amplifier (op-amp) from STMicroelectronics, designed for a wide range of applications in the electronics industry. This general-purpose op-amp offers excellent technical specifications and performance benefits, making it an ideal choice for various applications.

TSV631AILT Features

• Voltage - Supply Span (Min/Max): 1.5 V to 5.5 V, providing flexibility in power supply requirements.
• Gain Bandwidth Product: 880 kHz, ensuring high-speed operation and fast response times.
• Slew Rate: 0.34 V/µs, enabling rapid signal processing.
• Current - Input Bias: 1 pA, minimizing input offset and ensuring accurate signal processing.
• Current - Supply: 60 µA, offering low power consumption for energy-efficient designs.
• Current - Output / Channel: 74 mA, providing ample current drive for various loads.
• Voltage - Input Offset: 500 µV, ensuring high precision and accuracy in signal processing.
• Mounting Type: Surface Mount, allowing for compact and efficient PCB layouts.
• Package: Tape & Reel (TR), facilitating automated assembly and production processes.
• Number of Circuits: 1, providing a single op-amp circuit for various applications.
• REACH Status: REACH Unaffected, ensuring compliance with European environmental regulations.
• RoHS Status: ROHS3 Compliant, adhering to global environmental standards.
• Moisture Sensitivity Level (MSL): 1 (Unlimited), ensuring reliable performance in various environmental conditions.
• ECCN: EAR99, indicating that the product is not subject to export controls.
• HTSUS: 8542.33.0001, providing classification for international trade purposes.

TSV631AILT Applications

The TSV631AILT is ideal for a wide range of applications due to its excellent technical specifications and performance benefits. Some specific use cases include:

1. Audio Amplification: The high slew rate and low input bias current make it suitable for audio applications, such as preamplifiers and headphone amplifiers.
2. Sensor Signal Conditioning: The low power consumption and high precision make it ideal for conditioning signals from sensors in industrial and automotive applications.
3. Data Acquisition Systems: The high gain bandwidth product and low input offset voltage make it suitable for data acquisition systems in various industries.
4. Portable Electronics: The low power consumption and compact surface-mount package make it ideal for portable electronic devices, such as smartphones and wearables.

Conclusion of TSV631AILT

The TSV631AILT is a versatile and high-performance operational amplifier from STMicroelectronics, offering excellent technical specifications and performance benefits. Its unique features, such as low power consumption, high precision, and compliance with environmental regulations, make it an ideal choice for a wide range of applications in the electronics industry. With its compact surface-mount package and single op-amp circuit, the TSV631AILT is a reliable and efficient solution for various design requirements.

TSV631AILT Documents

Download datasheets and manufacturer documentation for TSV631AILT

PCN Assembly/Origin :

New Lead-Frame 01/Sep/2020

Datasheets :

TSV630(A), TSV631(A)

PCN Packaging :

Moisture Barrier Bag 09/May/2016

Other Related Documents :

TSV631A View All Specifications

HTML Datasheet :

TSV630(A), TSV631(A)
