SIL07E471J

SIL07E471J Description

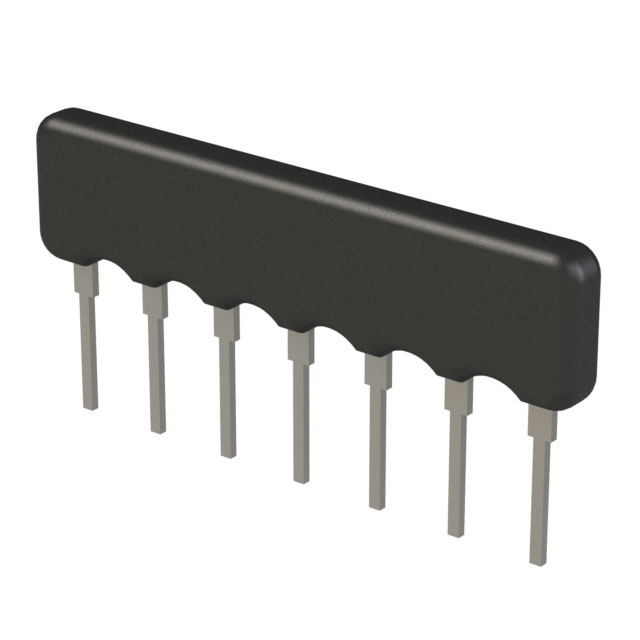

The SIL07E471J from TE Connectivity Passive Product is a 6-resistor bussed network designed for through-hole mounting, offering a compact and reliable solution for circuit designs requiring multiple resistors in a single package. With a 470Ω resistance per element and a ±5% tolerance, this array ensures consistent performance across applications. The device features a 200mW power rating per resistor, a ±200ppm/°C temperature coefficient, and operates within a 1 (Unlimited) Moisture Sensitivity Level (MSL), making it suitable for industrial and commercial environments. Encased in a 7-pin SIP (Single In-line Package) with dimensions of 17.78mm x 2.50mm (0.700" L x 0.098" W) and a seated height of 5.08mm (0.200"), it balances space efficiency with robust construction.

SIL07E471J Features

• Bussed Circuit Configuration: Simplifies PCB layout by connecting resistors in a common node, reducing wiring complexity.
• High Power Handling: 200mW per resistor ensures durability in demanding circuits.
• Stable Performance: ±200ppm/°C temperature coefficient minimizes resistance drift under thermal stress.
• RoHS Compliance: While marked as "Not applicable," the product adheres to industry-standard materials.
• Wide Operating Range: Suitable for EAR99 and HTSUS 8533.21.0050 classified applications, including industrial controls and consumer electronics.
• Bulk Packaging: Facilitates cost-effective procurement for high-volume production.

SIL07E471J Applications

Ideal for voltage division, pull-up/pull-down networks, and signal conditioning, the SIL07E471J excels in:

• Industrial Automation: PLCs, sensor interfaces, and motor control circuits.
• Consumer Electronics: Audio equipment, power supplies, and display drivers.
• Telecommunications: Signal filtering and impedance matching.
• Automotive Systems: Non-critical ECU circuits where bussed networks reduce component count.

Conclusion of SIL07E471J

The SIL07E471J resistor array combines space-saving design, reliable performance, and ease of integration, making it a versatile choice for engineers seeking efficiency in multi-resistor applications. Its bussed architecture, robust power rating, and stable thermal characteristics distinguish it from discrete resistors, offering a streamlined solution for compact and high-density PCB designs. Whether for industrial, consumer, or automotive use, this array delivers consistent performance under varying operational conditions.
