Texas Instruments

8409301EA

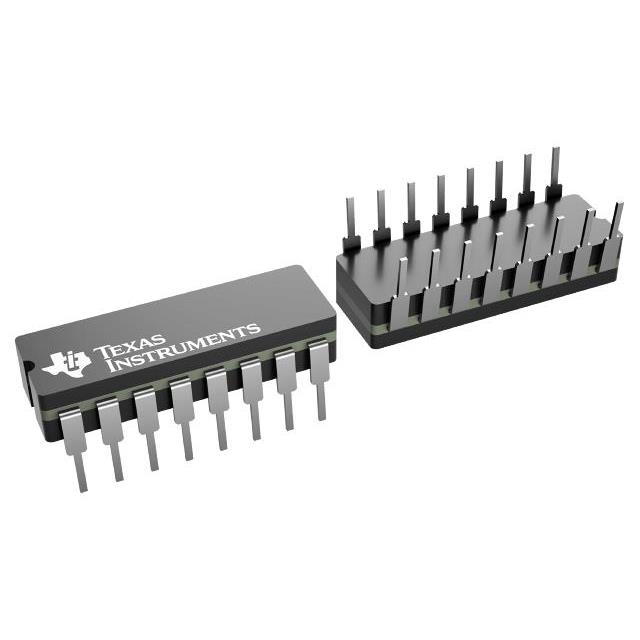

8409301EA Description

The 8409301EA is a dual 4-line to 1-line data selector/multiplexer from Texas Instruments, part of the 54HC series. This device is designed to efficiently manage and switch between multiple input signals, making it a versatile component for various electronic systems. It features independent circuits, with each circuit capable of handling 2 x 4:1 multiplexing. The 8409301EA operates on a single supply voltage ranging from 2V to 6V, ensuring compatibility with a wide range of power sources. It is housed in a through-hole package, making it suitable for applications requiring robust mechanical stability and ease of integration into printed circuit boards.

8409301EA Features

• Independent Circuits: The 8409301EA offers two independent multiplexing circuits, each capable of handling a 4:1 selection. This design allows for efficient signal routing and reduces the need for additional components.
• Voltage Supply Source: The device operates on a single supply voltage, simplifying power management and reducing the complexity of the power supply design.
• Voltage - Supply: The wide operating voltage range of 2V to 6V ensures compatibility with various power sources, making it suitable for a broad range of applications.
• Mounting Type: The through-hole mounting type provides mechanical stability and ease of integration into printed circuit boards, ideal for industrial and commercial applications.
• Current - Output High, Low: The 8409301EA can handle output currents of up to 7.8mA for both high and low states, ensuring reliable signal transmission.
• Moisture Sensitivity Level (MSL): The device is not moisture-sensitive, making it suitable for environments with varying humidity levels.
• RoHS Status: The 8409301EA is ROHS3 compliant, ensuring it meets environmental standards and is safe for use in modern electronics.

8409301EA Applications

The 8409301EA is ideal for applications requiring efficient signal routing and switching. Its dual 4-line to 1-line multiplexing capability makes it suitable for:

• Data Acquisition Systems: Where multiple input signals need to be selected and processed efficiently.
• Communication Systems: For switching between different communication channels.
• Industrial Control Systems: Where robust and reliable signal routing is essential.
• Consumer Electronics: In devices requiring efficient signal management, such as TVs, monitors, and other display devices.

Conclusion of 8409301EA

The 8409301EA from Texas Instruments is a robust and versatile dual 4-line to 1-line data selector/multiplexer. Its wide operating voltage range, single supply operation, and through-hole mounting make it suitable for a variety of applications. The device's independent circuits and high output current capabilities ensure efficient signal routing and reliable performance. With its ROHS3 compliance and non-moisture-sensitive design, the 8409301EA is an excellent choice for modern electronic systems requiring high performance and environmental safety.
