Texas Instruments

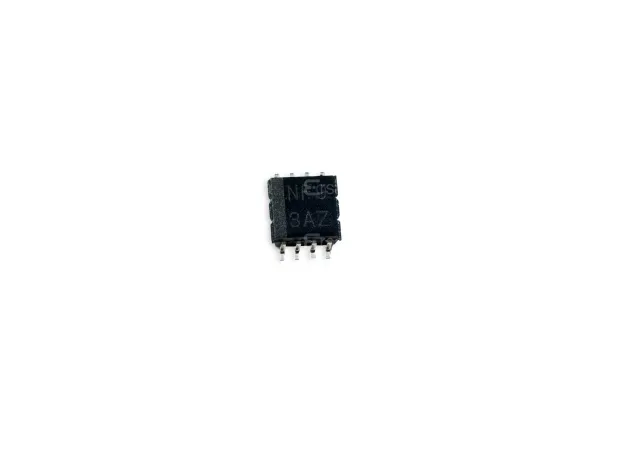

TCA9406DCTR

Translators, Level Shifters

The TCA9406DCTR is a low-power, I2C bus switch designed for use in a variety of applications. It is manufactured by Texas Instruments, a leading semiconductor company known for producing high-quality electronic components.

Description:

The TCA9406DCTR is a 1:2 I2C bus switch that allows two I2C masters to communicate with a single I2C slave device. It is a low-power device that operates on a wide input voltage range of 2.5V to 5.5V. The device is available in a small, 16-pin TSSOP package.

Features:

1. Low power consumption: The TCA9406DCTR is designed to operate with low power consumption, making it ideal for battery-powered applications.
2. Wide input voltage range: The device can operate on a wide range of input voltages, from 2.5V to 5.5V, making it suitable for a variety of applications.
3. I2C bus switch: The TCA9406DCTR is a 1:2 I2C bus switch, allowing two I2C masters to communicate with a single I2C slave device.
4. Small package: The device is available in a compact 16-pin TSSOP package, making it easy to integrate into a variety of applications.
5. High performance: The TCA9406DCTR offers high performance and reliability, with fast switching times and low propagation delays.

Applications:

The TCA9406DCTR is suitable for a variety of applications, including:

1. Automotive systems: The TCA9406DCTR can be used in automotive systems to allow multiple I2C masters to communicate with a single I2C slave device, such as a sensor or actuator.
2. Industrial control systems: The device can be used in industrial control systems to enable communication between multiple I2C masters and a single I2C slave device, such as a temperature sensor or a motor controller.
3. Consumer electronics: The TCA9406DCTR can be used in consumer electronics, such as smartphones and tablets, to enable communication between multiple I2C masters and a single I2C slave device, such as a display or a camera.
4. IoT devices: The device can be used in Internet of Things (IoT) devices to enable communication between multiple I2C masters and a single I2C slave device, such as a sensor or an actuator.

In summary, the TCA9406DCTR is a low-power, high-performance I2C bus switch that is suitable for a variety of applications, including automotive systems, industrial control systems, consumer electronics, and IoT devices. Its compact size, wide input voltage range, and low power consumption make it an ideal choice for space-constrained and power-sensitive applications.

TCA9406DCTR Documents

Download datasheets and manufacturer documentation for TCA9406DCTR

PCN Assembly/Origin :

Assembly Site 28/Nov/2016

Datasheets :

TCA9406

HTML Datasheet :

TCA9406
