Texas Instruments

TCAN1051VDRBTQ1

Drivers, Receivers, Transceivers

The TCAN1051VDRBTQ1 is a high-speed CAN (Controller Area Network) transceiver manufactured by Texas Instruments. It is designed to provide robust communication in automotive and industrial applications where high-speed data transmission is required.

Description:

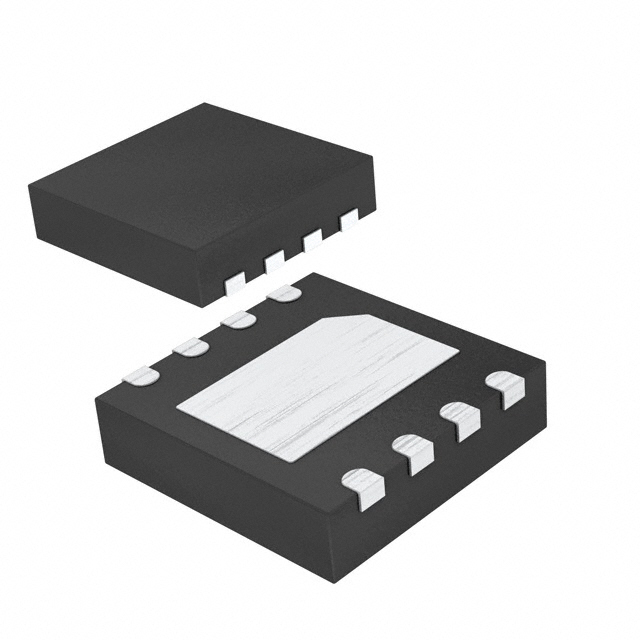

The TCAN1051VDRBTQ1 is a single-chip solution that integrates a CAN protocol controller and a physical layer transceiver. It operates at data rates up to 1 Mbps and supports both standard and extended CAN identifiers. The device is available in a compact QFN package, making it suitable for space-constrained applications.

Features:

1. High-speed operation: Supports data rates up to 1 Mbps.
2. Dual CAN interfaces: Provides two independent CAN interfaces for increased flexibility.
3. Support for standard and extended CAN identifiers: Allows for communication with a wide range of devices.
4. Robust error handling: Implements advanced error handling mechanisms to ensure reliable communication.
5. Wake-up functionality: Can be configured to wake up the microcontroller from a low-power state when a CAN message is received.
6. Standby mode: Reduces power consumption when the device is not actively transmitting or receiving data.
7. Protection against overvoltage, undervoltage, and short circuits: Ensures reliable operation in harsh environments.

Applications:

The TCAN1051VDRBTQ1 is well-suited for a variety of applications where high-speed, reliable communication is required. Some of the potential applications include:

1. Automotive networks: Used for in-vehicle communication between various electronic control units (ECUs).
2. Industrial control systems: Facilitates communication between different components in manufacturing and automation systems.
3. Medical equipment: Enables high-speed data transmission between different modules in medical devices.
4. Robotics: Provides reliable communication between the control system and various sensors and actuators in robotic systems.
5. Aerospace: Used for communication between different subsystems in aircraft and spacecraft.

In summary, the TCAN1051VDRBTQ1 is a high-speed CAN transceiver that offers robust communication capabilities, making it suitable for a wide range of applications in the automotive, industrial, medical, and aerospace sectors. Its dual CAN interfaces, support for standard and extended identifiers, and advanced error handling features make it a reliable choice for high-speed data transmission.

TCAN1051VDRBTQ1 Documents

Download datasheets and manufacturer documentation for TCAN1051VDRBTQ1

PCN Assembly/Origin :

Assembly/Test Site 27/Jul/2023

Datasheets :

TCAN1051-Q1 Datasheet

HTML Datasheet :

TCAN1051-Q1 Datasheet

PCN Design/Specification :

TCAN1051-Q1 11/Aug/2021
