Triac Optoisolator Guide: Zero-Cross vs Random-Phase

This is not a “what is an optocoupler” encyclopedia page. It’s a decision guide for engineers, buyers, and manufacturing teams who need reliable AC control without surprise flicker, false triggers, nuisance resets, or compliance headaches. A triac optoisolator sits at the boundary between low-voltage logic and mains—so mistakes don’t just cause bugs; they cause field returns.

Jump to what you need

Answer Box What it is Types Zero-cross vs random Load & commutation dv/dt & noise Gate + snubber Layout & safety Troubleshooting Common part numbers RFQ checklist CTA FAQ

Triac optoisolator controlling AC load with visible isolation barrier on PCB.

One-Screen Answer (Selection + Procurement)

When you’re choosing a triac optoisolator, the real question is not “what current rating?” It’s: will this part trigger when I want, not trigger when I don’t, and stay compliant across temperature, noise, and supply variants. Most failures look like “random behavior”: flicker, ghosting, false turn-on, or loads that never fully turn off.

Choose correctly if…

You pick zero-cross for on/off control and random-phase for dimming/phase control.
Your MCU can supply the needed LED trigger current (or you add a small transistor driver).
You design for dv/dt immunity, not just “it worked once on the bench.”
You match the load type (resistive, inductive, LED driver, motor) and avoid commutation traps.
Your PCB honors creepage/clearance and the isolation barrier stays clean in production.

Common buyer mistake

Treating “triac optoisolator” as a commodity. Two parts that “look identical” can differ in trigger current, noise immunity, and whether they include zero-cross circuitry. That’s how “same footprint alternates” turn into flicker complaints and re-validation.

Decision shortcut

On/off mains loads (heater, relay replacement, simple lamp): zero-cross optoisolator + triac is usually safest.
Dimming / phase-angle control: random-phase optoisolator is required (zero-cross will fight you).
Noisy environment / long wires / inductive loads: prioritize high dv/dt immunity and plan the snubber + gate network.
Modern LED lamps: expect edge cases—validate early; sometimes an SSR or MOSFET-based approach is better.

What Is a Triac Optoisolator (and What It Isn’t)?

A triac optoisolator (often called an “opto-triac” or “triac driver optocoupler”) is an isolation component that lets low-voltage logic control a mains triac. Inside is an LED on the input side and a light-triggered triac-like output element on the mains side. When the LED turns on, the output device triggers the gate of a power triac (or sometimes directly triggers a small triac for tiny loads).

What it’s great at

Galvanic isolation between MCU and mains
Robust AC switching (when designed with proper dv/dt protection)
Phase-angle control for dimmers, soft-start, power regulation (random-phase types)

What it’s not

Not automatically “EMC-safe” without snubbers/layout
Not guaranteed to behave well with every LED lamp/SMPS load
Not a substitute for safety design: clearance, fusing, surge protection

Reality check: the optoisolator is only one part of the switch. Your power triac choice, gate network, snubber, and PCB isolation decide whether the design is production-grade.

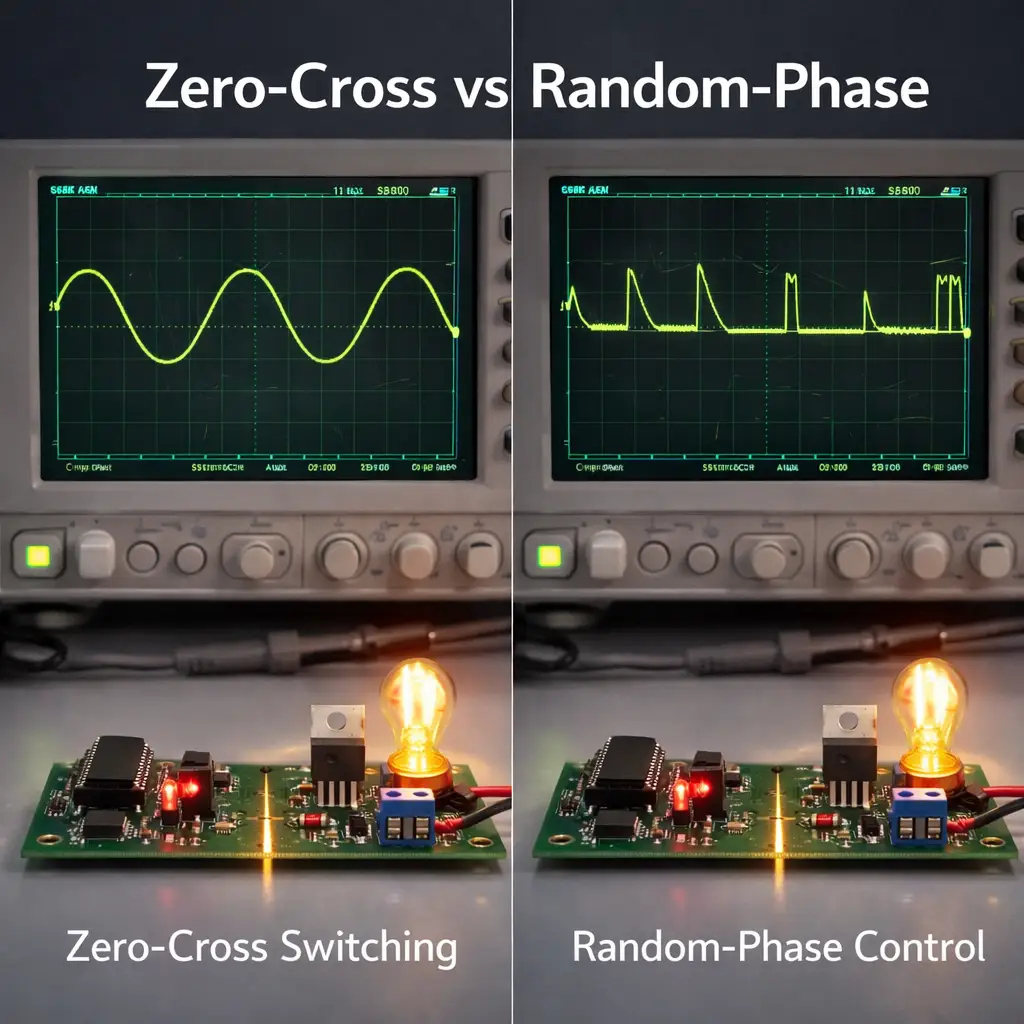

Oscilloscope comparison of zero-cross triac switching versus random-phase dimming waveform.

Which Type Fits Your Application?

“Triac optoisolator” covers multiple behaviors. Your first split is: zero-cross vs random-phase (non-zero-cross). This single choice determines whether your circuit is a clean on/off switch or a controllable dimmer.

Zero-cross triac optoisolator

Switches near AC zero crossing

Best for: on/off loads, heaters, simple lamps, reducing inrush & EMI.
Not for: phase-angle dimming (it won’t trigger mid-cycle the way you want).
Why buyers like it: often simpler compliance path due to gentler switching.

Random-phase (non-zero-cross)

Triggers whenever LED is driven

Best for: dimming, phase-angle control, power modulation.
Tradeoff: more EMI risk if you chop the waveform (snubber + filtering matter).
Why engineers pick it: it’s the only correct way to do controlled firing angles.

Photovoltaic/photomos SSR (different family)

Not triac-based, but often considered

Best for: low-leakage, DC switching, some AC use with back-to-back MOSFET SSRs.
Why it appears here: if triac solutions misbehave with modern loads, SSR alternatives may win.

Decision Question: Zero-Cross or Random-Phase?

If you only remember one thing: zero-cross is for switching, random-phase is for dimming. Choosing the wrong one creates “unfixable” behavior in firmware. Your MCU cannot compensate for a device that refuses to trigger mid-cycle (zero-cross type) or that triggers immediately (random-phase type).

Pick zero-cross when

You want clean on/off control.
You want reduced EMI and gentler inrush.
You’re controlling heating elements, solenoids (with care), or resistive loads.

Pick random-phase when

You need phase-angle control (dimmers, soft-start, power regulation).
You’re synchronizing to zero-cross in firmware and firing at a chosen angle.
You accept that EMI mitigation becomes a real design task.

Firmware note (why “it flickers”)

Many dimmer algorithms detect AC zero-cross and delay a programmable time before firing the triac. If you use a zero-cross optoisolator, it may only trigger near zero and ignore your firing angle—resulting in “steppy” dimming, limited range, or chaotic flicker that looks like a software bug but is actually hardware behavior.

Triac optoisolator false triggering caused by voltage spike on oscilloscope.

Decision Question: What Load Are You Switching (and Will the Triac Turn Off)?

Triacs latch on once triggered and typically stay on until current drops below a holding threshold. That’s perfect for many AC loads—but it can get weird with inductive loads, modern LED drivers, and lightly loaded power supplies. Selection isn’t only about “voltage.” It’s about commutation behavior and load current profile.

Resistive loads (heaters, incandescent)

Usually the easiest case. Zero-cross switching is often the cleanest. Random-phase works too, but chopped waveforms create EMI and audible noise in some assemblies.

Inductive loads (motors, transformers)

Inductive current lags voltage, which can stress commutation and increase false triggering risk. Expect to engineer the snubber, and don’t assume a “lamp dimmer” circuit will behave with a motor.

LED lamps / SMPS inputs

The most common “why does it ghost/flicker?” case. Many LED drivers draw pulsed current and can interact poorly with triac latching and leakage currents. Validate with the actual lamp/driver families you will ship.

Procurement note: if marketing can change the load type (different lamp supplier, different motor), your “approved” triac solution may not be stable. Treat “load change” as a system-level change request.

Decision Question: How Much dv/dt and Noise Immunity Do You Need?

False triggering is the “signature failure mode” of triac optoisolator designs in real products. Fast voltage edges (dv/dt) on the mains side can couple into the triac gate structure and turn it on when you didn’t ask. The fix is not one magic part—it’s a combination of device choice, gate network, snubber, and layout discipline.

When dv/dt pain shows up

Long mains wiring harnesses
Nearby relays/contactors switching
Motor loads, transformers, inductive kick
EMI test chambers (where marginal designs get exposed)

Selection implication

If you expect a noisy environment, treat “high dv/dt immunity” as a must-have in your RFQ, and plan to validate with surges, fast transients, and worst-case mains conditions. Don’t wait until compliance week.

A practical mental model

A triac optoisolator circuit is like a microphone near a speaker: if your “noise” (dv/dt edges) is loud enough, it will self-trigger. Your job is to reduce the noise (snubber/filtering) and reduce sensitivity (gate network, immunity), while still having enough trigger strength to turn on reliably across temperature and component variation.

LED lamp faintly glowing due to triac leakage current in dimmer circuit.

Design Path: LED Drive, Gate Network, and Snubber (Where Reliability Is Won)

Most triac optoisolator projects fail because the output side is treated as a single “gate pin.” In reality, you’re designing a controlled trigger system that must work with real mains edges, temperature spread, and triac device variation. Below is the practical design path engineers actually follow.

Step 1 — Can your MCU drive the opto LED?

Check GPIO current limits: many MCUs can source/sink only a few mA continuously.
Pick an LED current target: choose a comfortable margin above the opto’s trigger requirement.
If needed, add a transistor: a tiny NPN/NMOS lets you drive LED current reliably without stressing the MCU pin.

Example MCU context: an STM32/ESP32 GPIO can be fine for a low-current opto input, but a transistor driver buys you margin and consistency across production.

Step 2 — Gate resistor and sensitivity

The optoisolator typically triggers the gate of a power triac through a resistor network. This network sets how much current reaches the gate and how sensitive the triac is to noise. Too weak and the triac won’t latch under low-load or cold conditions; too sensitive and it false-triggers.

High reliability approach: design for a clear “turn-on” margin, then reduce false triggers with snubbers/RC networks.
Procurement implication: changing the triac part can change required gate current—treat triac alternates as real alternates, not clerical swaps.

Step 3 — Snubber and EMI reality

Snubbers (typically RC across the triac or load) reduce dv/dt and tame transients. They also change leakage and load behavior. The “right” snubber depends on the load and wiring. For production systems, validate with: cold start, worst-case mains, and EMC smoke tests.

Practical warning: snubbers can make some LED lamps glow faintly when “off” (because leakage current becomes visible). If you ship consumer lighting control, test multiple lamp brands early.

Layout & Safety: The Isolation Barrier Is a Circuit Feature

Triac optoisolators live on the safety boundary. Your layout decisions become product decisions: creepage/clearance, slotting, conformal coating strategy, and how you route noisy mains edges relative to logic ground. A perfect schematic can still fail because the PCB turns the isolation barrier into an antenna.

Layout rules that prevent pain

Keep mains-side copper away from logic-side copper; respect clearance around the opto.
Route gate currents tightly and minimize loop area on the triac side.
Keep zero-cross sensing (if any) away from high dV/dt switching nodes.
Use isolation slots if your safety standard/design rules call for it.

Manufacturing note

Flux residue, dust, and humidity can reduce effective insulation and increase leakage paths. If your product lives in humid or polluted environments, isolation cleanliness is not optional. Specify cleaning steps and consider conformal coating policies as part of “the design.”

Safety reminder: mains designs require appropriate fusing, surge protection, and compliance to applicable standards. This article is selection guidance, not a safety certification.

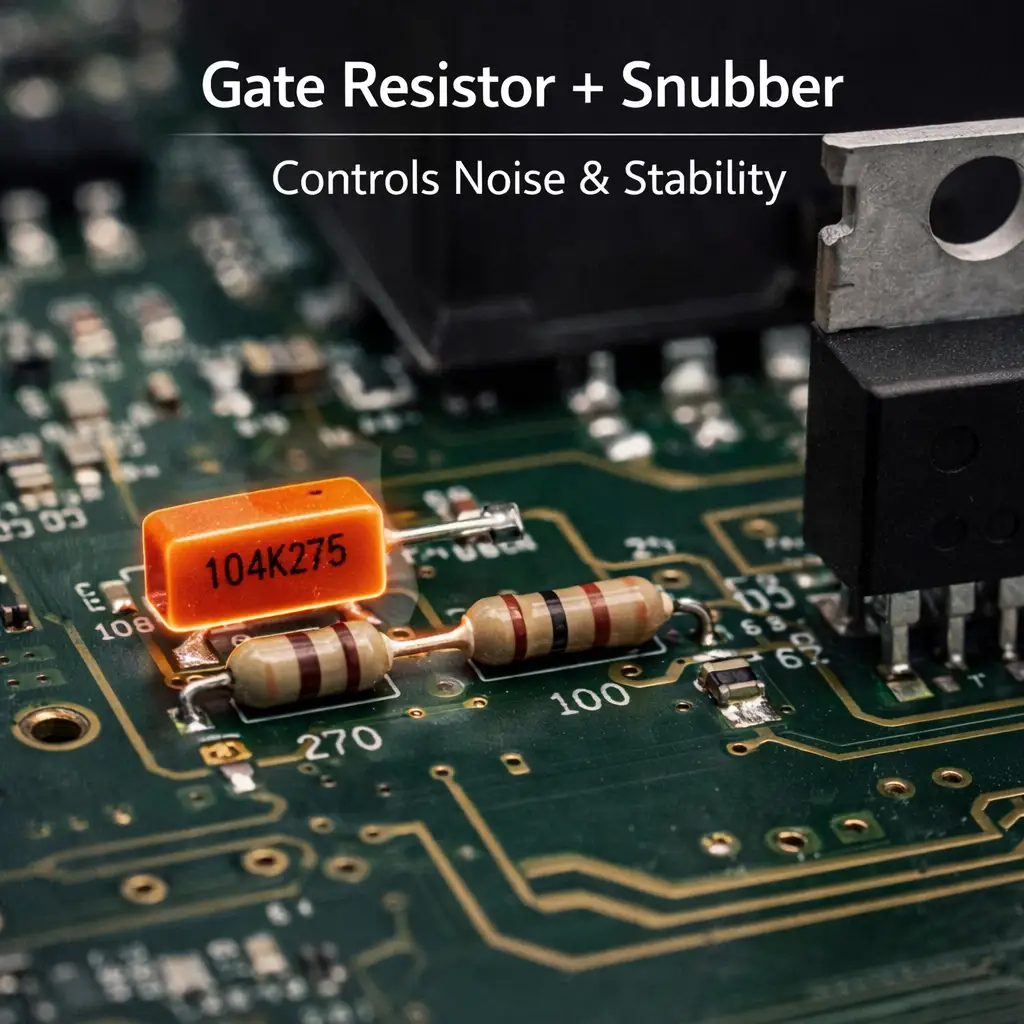

Close-up of triac gate resistor and RC snubber network on PCB

Troubleshooting Path: Flicker, False Turn-On, and “Won’t Turn Off”

Triac optoisolator issues usually appear as “random” field behavior. The goal is to classify the symptom and then apply the right fix path—without blindly swapping parts.

Symptom-driven debug checklist

Flicker during dimming: confirm you’re using a random-phase optoisolator; verify your zero-cross detection timing and firing angle stability.
False turn-on (ghost switching): suspect dv/dt. Add/adjust snubber, improve gate network, reduce loop area, review wiring harness and surge conditions.
Won’t turn off: suspect load current profile or leakage. With LED lamps/SMPS, triac latching can be unstable—validate with different loads and consider alternate switching tech if needed.
Works warm, fails cold: suspect insufficient LED drive or gate trigger margin. Increase LED current margin (within limits) or use a driver transistor.
EMC fails: treat waveform edges as your enemy. Review snubber placement, line filtering, and triac-side routing before changing firmware.

The “alternate part” trap

If you swapped an optoisolator or triac and problems appeared, assume the change altered trigger sensitivity or dv/dt immunity. Treat alternates as a controlled experiment: record LED current, firing angle, snubber values, and test under the same surge/noise conditions.

Common Part Numbers (No Brand Names)

Below are widely referenced triac optoisolator part numbers engineers commonly encounter as starting points. This is not an endorsement list and not a compatibility guarantee. Always confirm: zero-cross vs random-phase, LED trigger current, dv/dt immunity, isolation rating, package/footprint, and your mains safety requirements.

Part number	Category	Trigger behavior	Package hint	Why people pick it
MOC3021	Triac driver optoisolator	Random-phase	DIP-6 class	Classic dimmer / phase-angle reference design starting point.
MOC3023	Triac driver optoisolator	Random-phase	DIP-6 class	Often used when you want lower input trigger current variants.
MOC3052	Triac driver optoisolator	Random-phase	DIP-6 / SMD variants exist	Common “random-phase” family encountered in dimmer controls.
MOC3063	Triac driver optoisolator	Zero-cross	DIP-6 class	Popular for on/off mains switching with reduced EMI.
MOC3062	Triac driver optoisolator	Zero-cross	DIP-6 class	Another common zero-cross family used in appliance controls.
IL410	Triac driver optoisolator	Zero-cross / variants exist	DIP-6 class	Common “opto-triac” family name seen in BOMs.
VO3062	Triac driver optoisolator	Zero-cross	DIP-6 class	Frequently referenced zero-cross driver for simple AC switching.

Important note (keeps alternates safe)

“Same family name” does not guarantee the same trigger current, zero-cross behavior, or dv/dt immunity. If you approve alternates, validate: worst-case mains transients, cold start, and real loads (especially LED lamps).

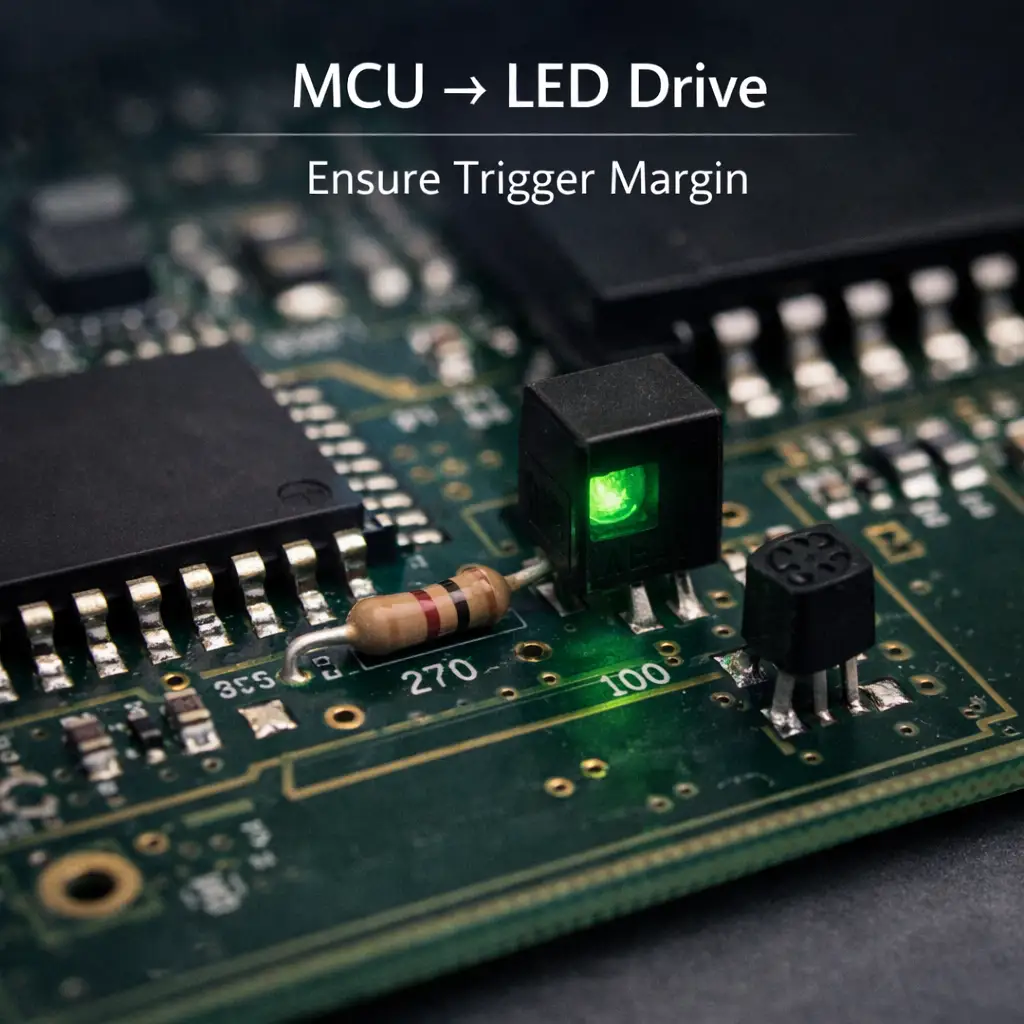

Microcontroller GPIO driving optoisolator LED with current-limiting resistor.

Triac Optoisolator Selection Checklist (RFQ-Ready)

Copy/paste this into an RFQ so suppliers respond with comparable options—without hidden assumptions.

Decision question	Why it affects selection	What to specify in RFQ
Control mode	Zero-cross vs random-phase changes behavior completely.	On/off switching or phase-angle dimming.
Input LED drive	Determines whether MCU can drive directly or needs a transistor.	Max LED trigger current target and GPIO limits.
Noise/dv/dt environment	False triggers and EMC failures happen here.	Required dv/dt immunity expectation; surge/noise context.
Load type	Commutation and leakage effects vary by load.	Resistive / inductive / LED lamp / SMPS input; load current range.
Isolation & compliance	Safety boundary; affects approvals and PCB rules.	Isolation rating target, package type, safety standard constraints.
Package footprint	Determines alternate sourcing and PCB barrier geometry.	Exact footprint / DIP vs SMD; isolation slot allowance.
