RF Directional Coupler

(409 results)

RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.

Part #	Manufacturer	Description	Availability	Pricing
PE2CP013 RF Directional Coupler	Pasternack	90DEG HYB CPL 1-2GHZ 50W	25	-
PE2CP1046 RF Directional Coupler	Pasternack	90D PCB HYB CPL 0.8-2.5GHZ 200W	2	-
PE2CP1161 RF Directional Coupler	Pasternack	180DEG HYB CPL 26.5-40GHZ 20W	3	-
PEWRD750CP01-40 RF Directional Coupler	Pasternack	WRD-750 Double Ridge Waveguide 4	3	-
PEWCP1065 RF Directional Coupler	Pasternack	WR-112 Waveguide 40 dB Crossguid	12	-
PE2CP1001 RF Directional Coupler	Pasternack	Dual Directional 50 dB SMA Coupl	8	-
PE2239-30 RF Directional Coupler	Pasternack	Directional 30 dB N Coupler From	22	-
PE2CP1066 RF Directional Coupler	Pasternack	Low PIM Directional 15 dB 7/16 D	4	-
PEW62CP001-40 RF Directional Coupler	Pasternack	WR-62 Waveguide 40 dB Broadwall	3	-
PEWRD650CP04-40 RF Directional Coupler	Pasternack	WRD-650 Double Ridge Waveguide 4	3	-
PEWCP1050 RF Directional Coupler	Pasternack	WR-62 Waveguide 50 dB Crossguide	4	-
PE2242-10 RF Directional Coupler	Pasternack	Directional 10 dB SMA Coupler Fr	55	-

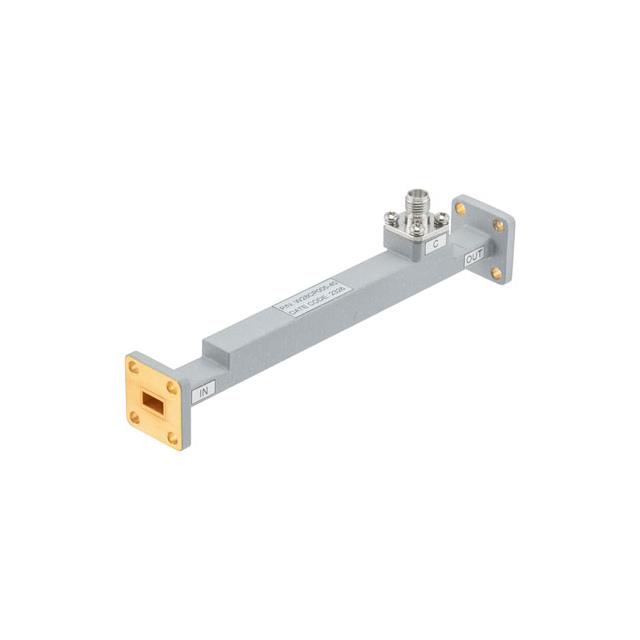

PEW28CP005-40 RF Directional Coupler	Pasternack	WR-28 Waveguide 40 dB Broadwall	3	-
PE2050 RF Directional Coupler	Pasternack	90 Degree SMA Hybrid Coupler Fro	19	-
PE2CP1076 RF Directional Coupler	Pasternack	Low PIM Directional 30 dB 4.3-10	13	-
PE2210-6 RF Directional Coupler	Pasternack	Directional 6 dB SMA Coupler Fro	25	-
PE2202-6 RF Directional Coupler	Pasternack	Directional 6 dB SMA Coupler Fro	12	-
PEW62CP002-30 RF Directional Coupler	Pasternack	WR-62 Waveguide 30 dB Broadwall	3	-
PEWRD650CP02-30 RF Directional Coupler	Pasternack	WRD-650 Double Ridge Waveguide 3	3	-
PEWCP1080-20 RF Directional Coupler	Pasternack	WR-15 Waveguide 20 dB Broadwall	3	-
PE2243-20 RF Directional Coupler	Pasternack	Directional 20 dB SMA Coupler Fr	32	-
PE2228A-30 RF Directional Coupler	Pasternack	Directional 30 dB N Coupler From	5	-

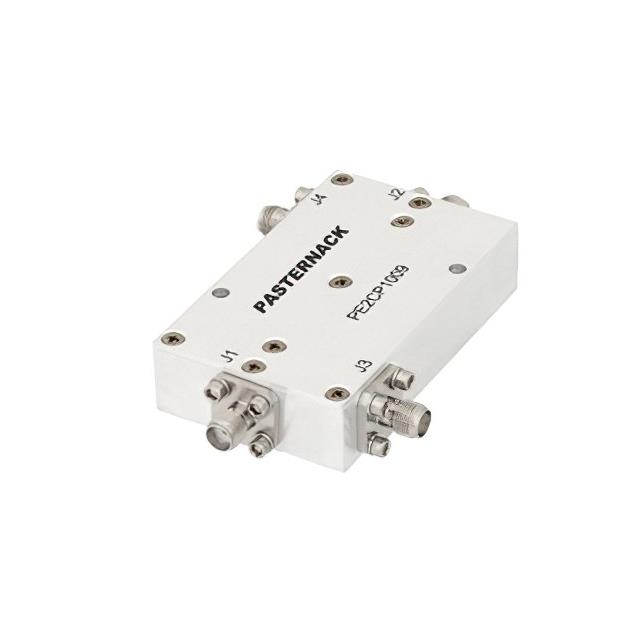

PE2CP1009 RF Directional Coupler	Pasternack	Dual Directional 40 dB SMA Coupl	16	-
PE-T2003 RF Directional Coupler	Pasternack	Low PIM 8 dB 7/16 DIN Unequal Ta	9	-
PE2218-10 RF Directional Coupler	Pasternack	Dual Directional 10 dB SMA Coupl	4	-
