Infineon Technologies

IPD70R600P7SAUMA1

Single FETs, MOSFETs

IPD70R600P7SAUMA1 Description

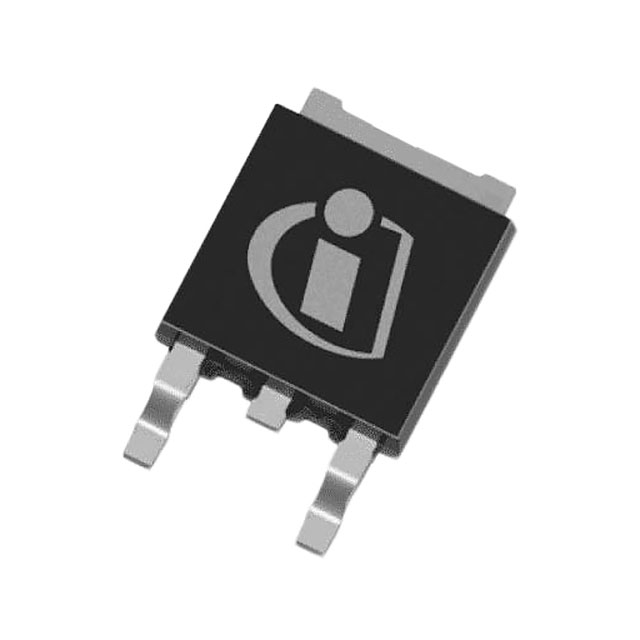

The IPD70R600P7SAUMA1 is a high-performance MOSFET N-CH 700V 8.5A TO252-3 manufactured by Infineon Technologies. This device is part of the CoolMOS™ P7 series and is designed for applications requiring high efficiency and reliability. With a maximum drain-to-source voltage of 700V and a continuous drain current of 8.5A at 25°C, the IPD70R600P7SAUMA1 offers excellent electrical performance.

IPD70R600P7SAUMA1 Features

• Technology: MOSFET (Metal Oxide)
• Input Capacitance (Ciss): 364 pF @ 400 V
• Gate Charge (Qg): 10.5 nC @ 10 V
• Drain to Source Voltage (Vdss): 700 V
• Power Dissipation (Max): 43W (Tc)
• Rds On (Max): 600mOhm @ 1.8A, 10V
• Vgs(th) (Max): 3.5V @ 90µA
• Vgs (Max): ±16V
• Drive Voltage (Max Rds On, Min Rds On): 10V
• Mounting Type: Surface Mount
• Package: Tape & Reel (TR)
• Moisture Sensitivity Level (MSL): 3 (168 Hours)
• REACH Status: REACH Unaffected
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• HTSUS: 8541.29.0095

IPD70R600P7SAUMA1 Applications

The IPD70R600P7SAUMA1 is ideal for a variety of applications where high voltage and current handling are required. Some specific use cases include:

1. Power Supplies: Due to its high voltage and current ratings, the IPD70R600P7SAUMA1 is suitable for use in power supply designs, providing efficient power conversion and regulation.
2. Motor Control: The device's low Rds On and high voltage capabilities make it an excellent choice for motor control applications, ensuring efficient motor operation and reduced power losses.
3. Automotive Electronics: The IPD70R600P7SAUMA1 can be used in various automotive electronics, such as electric power steering and battery management systems, where high reliability and performance are critical.

Conclusion of IPD70R600P7SAUMA1

The IPD70R600P7SAUMA1 from Infineon Technologies is a powerful MOSFET N-CH 700V 8.5A TO252-3 that offers superior performance and reliability. Its unique features, such as low Rds On and high voltage capabilities, make it an ideal choice for a range of applications, including power supplies, motor control, and automotive electronics. With its REACH unaffected and RoHS3 compliant status, the IPD70R600P7SAUMA1 is not only a high-performance device but also environmentally friendly.

IPD70R600P7SAUMA1 Documents

Download datasheets and manufacturer documentation for IPD70R600P7SAUMA1

Datasheets :

IPD70R600P7S

Other Related Documents :

Part Number Guide

HTML Datasheet :

IPD70R600P7S

Simulation Models :

CoolMOS™ Power MOSFET 700V P7 Spice Model

Environmental Information :

RoHS Certificate
