Micron Technology

MT25QL128ABA8E12-0SIT

Name: MT25QL128ABA8E12-0SIT
Brand: Micron Technology
SKU: 774-MT25QL128ABA8E12-0SIT
Price: 8.90400 USD
Availability: InStock

Manufacturer:

Micron Technology

ERSA Part #:

774-MT25QL128ABA8E12-0SIT

Datasheet:

PDF Datasheet

Description:

IC FLASH 128MBIT SPI 24TPBGA

Standard Lead Time:

20 weeks

RoHS Status:

Why Choose Us?

Professional Platform

B2B & B2C purchasing

Delivery at full speed

1-2 days delivery

Wide variety

Original manufacturers

365 days guarantee

Responsible quality

Tech Specifications

Clock Frequency

133 MHz

Unit Weight

0.235442 oz

Program Current (mA)

Part Status Code

Production

Component Density

128Mb

Programming Voltage (V)

2.7 to 3.6

Number of Components

PPAP

MT25QL128ABA8E12-0SIT Description

Micron Technology | 3V Serial NOR Flash

MT25QL128ABA8E12-0SIT

128Mb (16MB) 3V Quad SPI NOR Flash | 133MHz STR / 90MHz DTR | Execute-in-Place (XIP) | Industrial Temperature

✔️ Industrial Temp: -40°C to +85°C ⚡ 133MHz STR / 90MHz DTR

BRAND

Micron

MT25QL Series

128Mb
Density (16MB)

2.7-3.6V
Supply Range

133MHz
STR Clock

90MB/s
Quad Throughput

T-PBGA-24
6x8mm Package

Product Overview

The Micron MT25QL128ABA8E12-0SIT is a 128Mb (16,777,216 bytes) high-performance serial NOR Flash memory from the MT25Q family[reference:0]. Operating from a standard 2.7V to 3.6V power supply, it supports standard SPI, Dual SPI, and Quad SPI modes, with a maximum clock frequency of 133 MHz in Single Transfer Rate (STR) mode and 90 MHz in Double Transfer Rate (DTR) mode, delivering a read throughput of up to 90 MB/s[reference:1]. This makes it ideal for execute‑in‑place (XIP), fast booting, and code storage in industrial, networking, and embedded systems[reference:2].

The device is organized as 16M x 8 (128Mb)[reference:3], with a flexible erase architecture: 64KB sectors, 4KB and 32KB subsectors[reference:4]. Housed in a compact 24‑ball T-PBGA (6x8mm) package[reference:5][reference:6], it operates over the industrial temperature range of -40°C to +85°C[reference:7]. With 100,000 program/erase cycles and 20‑year data retention[reference:8], the MT25QL128ABA delivers the endurance and reliability required for industrial control, networking, medical devices, and automotive applications.

📊 Technical Specifications

Density / Organization	128Mb (16M x 8) — 16MB[reference:9]
Memory Interface	SPI / Dual SPI / Quad SPI[reference:10]
Max Clock Frequency	133 MHz (STR) / 90 MHz (DTR)[reference:11]
Quad Read Throughput	Up to 90 MB/s[reference:12]
Write Cycle Time (Page)	2.8ms[reference:13]
Erase Granularity	64KB sector, 32KB subsector, 4KB subsector[reference:14]
Supply Voltage (Vcc)	2.7V – 3.6V[reference:15]
Operating Temperature	Industrial: -40°C to +85°C[reference:16]
Storage Temperature	-65°C to +150°C
Package Type	24‑ball T-PBGA (6x8mm)[reference:17]
Package Dimensions	8.0 x 6.0 x 1.1 mm[reference:18]
Endurance	100,000 program/erase cycles[reference:19]
Data Retention	20 years @ 55°C[reference:20]
Write Protection	Hardware WP# pin, software block protection[reference:21]
Security Features	64‑byte OTP, unique 64‑bit ID[reference:22]
Address Modes	3‑byte and 4‑byte address modes[reference:23]
RoHS / Halogen Free	Yes — RoHS3 compliant[reference:24]
Moisture Sensitivity Level	MSL 3 (168 hours)[reference:25]
ECCN	3A991B1A[reference:26]
Part Status	Last Time Buy — 2026/8/31[reference:27]
Manufacturer Standard Package	2,500 pieces per tray[reference:28]

✨ Key Features

✅ High‑Speed Quad SPI – 133MHz STR / 90MHz DTR, up to 90 MB/s throughput for fast XIP and boot[reference:29]
✅ Industry Standard 3V Operation – 2.7‑3.6V wide range, compatible with most SoCs[reference:30]
✅ 128Mb High Density – 16MB for firmware, data logging, and OTA updates
✅ Execute‑in‑Place (XIP) Support – Direct code execution from Flash memory[reference:31]
✅ Single & Double Transfer Rate (STR/DTR) – Flexible speed options for optimal performance[reference:32]
✅ Flexible Erase Architecture – 64KB sectors, 32KB/4KB subsectors for granular data management[reference:33]
✅ Hardware & Software Write Protection – WP# pin and configurable protected area[reference:34]
✅ 64‑byte OTP Area – Dedicated one‑time programmable memory for secure data storage[reference:35]
✅ Program/Erase Suspend – Allows interruption of operations for latency‑sensitive reads[reference:36]
✅ High Reliability – 100K P/E cycles, 20‑year data retention at 55°C[reference:37]
✅ Industrial Temperature Range – -40°C to +85°C for harsh environments[reference:38]
✅ Compact T-PBGA-24 Package – 6x8mm footprint, ideal for space‑constrained designs
✅ JEDEC Standard Command Set – Interoperable with most SPI NOR Flash controllers
✅ Long‑term Availability – Micron’s commitment to industrial and embedded markets (15+ years)

🎯 Target Applications:

Industrial control systems, networking routers/switches, set‑top boxes, smart home hubs, IoT gateways, medical devices, automotive aftermarket infotainment, FPGA configuration storage, and battery‑powered portable devices.

⚡ Quad SPI Performance & Modes

Standard SPI (1-1-1)

Single I/O: 133 Mbps (STR)
Compatible with all SPI hosts

Dual SPI (1-1-2)

2‑bit read: 266 Mbps (STR)
Good speed / pin trade‑off

Quad SPI (1-4-4)

4‑bit read: Up to 90 MB/s (720 Mbps)
Optimal XIP performance[reference:39]

The MT25QL128ABA supports QPI (Quad Peripheral Interface) mode where all commands and addresses are transmitted over 4 I/O lines. It also features Single and Double Transfer Rate (STR/DTR) modes, providing flexibility for high‑speed random access and enabling seamless execute‑in‑place (XIP) without code shadowing to RAM[reference:40].

🔒 Security & Write Protection Features

🔑 Unique 64‑bit Device ID
Each MT25QL128ABA is factory‑programmed with a unique serial number, enabling device authentication, anti‑counterfeiting, and simple inventory tracking.

📦 64‑byte OTP (One‑Time Programmable) Register
A dedicated OTP area outside the main memory for permanent storage of encryption keys, serial numbers, or manufacturing data[reference:41]. The OTP region can be locked permanently to prevent further writes.

🛡️ Flexible Write Protection
Volatile and nonvolatile locking for each 64KB sector. Nonvolatile configuration locking and password protection provide additional security layers[reference:42].

⏸️ Program/Erase Suspend & CRC Protection
During a long erase operation, the host can issue a suspend command, perform a read from another sector, and then resume the erase without data corruption[reference:43]. CRC detection protects against accidental changes to raw data.

📦 Ordering Information & Part Number Decoder

Orderable Part Number	Temperature	Package	Description
MT25QL128ABA8E12-0SIT	-40°C to +85°C	T-PBGA-24 (6x8mm)	Industrial, tray (2,500 pcs/tray)[reference:44]
MT25QL128ABA8E12-0SIT TR	-40°C to +85°C	T-PBGA-24 (6x8mm)	Tape & Reel (2,500 pcs/reel)[reference:45]
MT25QL128ABA8ESF-0SIT	-40°C to +85°C	SOIC-16 (300mil)	Industrial, SOIC package

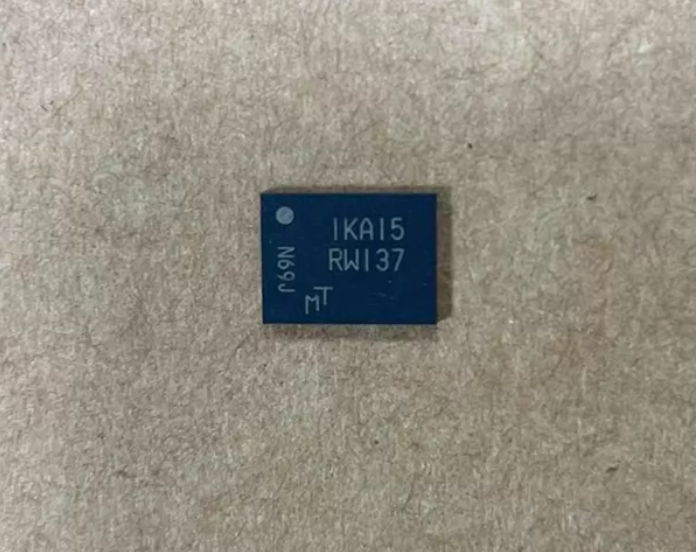

MT25QL128ABA1EW9-0SIT	-40°C to +85°C	WPDFN-8 (8x6mm)	Industrial, compact package
MT25QL128ABA8E12-0AAT	-40°C to +105°C	T-PBGA-24 (6x8mm)	Automotive Grade (AEC-Q100)[reference:46]

🔍 Part Number Breakdown (MT25QL128ABA8E12-0SIT):
• MT25Q – Micron Quad SPI NOR Flash family
• L – 3V (L) vs U for 1.8V
• 128 – 128Mb density
• ABA – Configuration / die revision[reference:47]
• 8E12 – Package: T-PBGA-24 (6x8mm)
• 0 – Standard security[reference:48]
• SIT – Industrial temperature (-40°C to +85°C), lead‑free

🏆 Micron Technology – Leader in NOR Flash

Micron Technology is a global leader in memory and storage solutions, with over 40 years of innovation. The MT25Q family represents Micron’s high‑performance NOR Flash portfolio, widely used in industrial, automotive, and consumer electronics. Micron’s NOR Flash products are known for excellent endurance, data retention, and long‑term supply continuity.

Top 3 NOR Flash supplier worldwide – trusted by major OEMs
AEC‑Q100 qualified automotive grade options available[reference:49]
ISO 9001, ISO 14001, IATF 16949 certified fabs
Advanced NOR process nodes for high density and low power
Long‑term product commitment – 15‑20 year availability for industrial and automotive

⚠️ Note: This part is marked as Last Time Buy (LTB) with an end-of-life date of 31.08.2026. Please contact Micron or your distributor for end‑of‑life support and replacement options[reference:50].

🌟 Why Choose MT25QL128ABA8E12-0SIT?

• Industry‑standard 133MHz STR / 90MHz DTR Quad read[reference:51]

• 16MB density in compact 6x8mm T-PBGA package

• Industrial temperature -40°C to +85°C[reference:52]

• 100K endurance / 20‑year data retention[reference:53]

• 3‑byte and 4‑byte address modes for flexible addressing[reference:54]

• Backed by Micron’s quality and long‑term supply

🛠️ Development Tools & Support

📄 Datasheet & App Notes

Full specification, AC/DC characteristics, timing diagrams, and hardware design guidelines[reference:55].

💻 Software Drivers

Example C code for SPI read/write, Quad mode initialization, and protection management (available on Micron GitHub).

🔌 Programmer Support

Compatible with all major programmers: Elnec, Xeltek, DediProg, Segger J‑Link (SPI mode).

Micron provides free samples, evaluation boards, and direct FAE support through authorized distributors. Design‑in assistance, IBIS models, and failure analysis are available for qualified customers.

📄 Certifications & Compliance

RoHS 2011/65/EU (Compliant)[reference:56]
REACH SVHC (Compliant)[reference:57]
Halogen‑free per IEC 61249-2-21
Conflict Minerals (CFSI) report available
ECCN: 3A991B1A[reference:58]

📦 Packaging & Logistics

Tray: 2,500 pieces per tray[reference:59]
Tape & Reel: 2,500 pieces per 13" reel[reference:60]
Moisture Sensitivity Level: MSL 3 (168 hours)[reference:61]
Lead finish: NiPdAu (green, lead‑free)
Lead time: 8‑10 weeks ARO, stock via distributors
Country of Origin: Singapore

📧 [email protected] | 🌐 www.micron.com/products/nor-flash/mt25q

FAQ

This is a 128 Megabit (128Mb / 16MB) serial NOR Flash memory device. It is organized as 16M words × 8 bits (16M x 8), or alternatively as 32M x 4bit. It utilizes a high-speed SPI-compatible serial bus interface with Quad I/O support, enabling significantly increased data transfer bandwidth for READ and PROGRAM operations.
