TLC2201AMDG4 Description

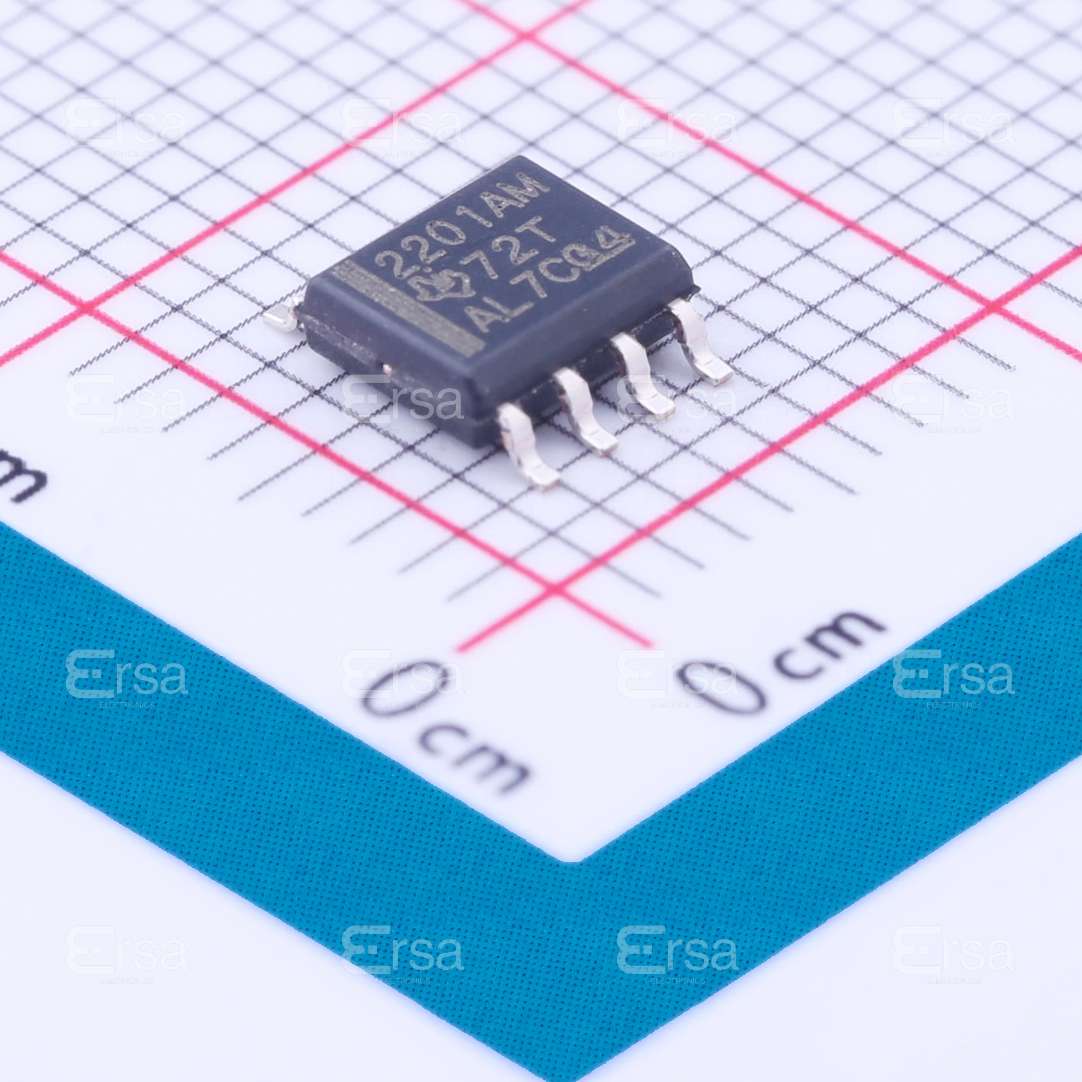

The TLC2201AMDG4 is a high-performance, general-purpose operational amplifier from Texas Instruments, designed to meet the demanding requirements of various electronic applications. This op-amp is part of the LinCMOS™ series, offering a robust combination of low power consumption, high slew rate, and excellent gain bandwidth product. It is housed in a surface-mount 8SOIC package, making it ideal for compact and space-constrained designs.

TLC2201AMDG4 Features

• Wide Supply Voltage Range: The TLC2201AMDG4 operates from a supply voltage span of 4.6 V to 16 V, providing flexibility in power supply options and compatibility with a wide range of systems.
• High Gain Bandwidth Product: With a gain bandwidth product of 1.9 MHz, this op-amp ensures high-frequency performance, making it suitable for applications requiring fast signal processing.
• Low Input Bias Current: The extremely low input bias current of 1 pA minimizes the loading effect on the input signal source, ensuring high input impedance and accurate signal amplification.
• High Slew Rate: A slew rate of 2.7 V/µs allows for rapid response to input signal changes, reducing distortion in high-frequency applications.
• Low Input Offset Voltage: The low input offset voltage of 80 µV ensures high accuracy in signal amplification, making it ideal for precision applications.
• Low Power Consumption: Consuming only 1.1 mA of supply current, this op-amp is highly efficient, making it suitable for battery-powered and low-power applications.
• High Output Current: Capable of delivering up to 50 mA per channel, the TLC2201AMDG4 can drive heavy loads without significant voltage drop.
• Compliance and Reliability: The TLC2201AMDG4 is REACH unaffected and RoHS3 compliant, ensuring environmental safety and reliability. It also has a moisture sensitivity level (MSL) of 1, making it suitable for unlimited storage and handling.

TLC2201AMDG4 Applications

The TLC2201AMDG4 is versatile and can be used in a variety of applications, including:

• Signal Conditioning: Ideal for amplifying and conditioning low-level signals in sensor interfaces and analog signal processing circuits.
• Audio Processing: Suitable for audio amplifiers and preamplifiers due to its high slew rate and low distortion.
• Precision Measurement: Its low input offset voltage and high input impedance make it suitable for precision measurement circuits.
• Power Management: The low power consumption and wide supply voltage range make it ideal for battery-powered devices and power management circuits.
• Industrial Control: Can be used in industrial control systems where high reliability and performance are required.

Conclusion of TLC2201AMDG4

The TLC2201AMDG4 from Texas Instruments is a high-performance general-purpose operational amplifier that offers a combination of wide supply voltage range, high gain bandwidth product, low input bias current, and high slew rate. Its low power consumption and high output current make it suitable for a wide range of applications, from precision measurement to audio processing. The TLC2201AMDG4 is an excellent choice for designers looking for a reliable and efficient op-amp that can meet the demands of modern electronic systems.
