Ballast Resistor Selection: Size, Heat & Reliability

This is not a “ballast resistor definition” page. It’s a decision guide that starts with what you’re protecting (current, voltage, heat, lifetime), then turns that into ohms, watts, package, and mounting—with an RFQ-ready checklist and a vendor-neutral “recommended model codes” section you can search online.

Jump to what you need

Answer Box Use cases How it works Sizing ohms Sizing watts & heat Package & mounting Reliability Troubleshooting Recommended model codes RFQ checklist FAQ

Aluminum-housed ballast resistor mounted to a metal plate for current limiting

One-Screen Answer (Selection-First)

Pick the right ballast resistor when…

You know what current you must limit (steady + transient).
You can translate that into ohms using worst-case voltage + load behavior.
You can translate heat into watts using duty cycle + ambient + mounting.
You choose a package that survives your real environment: vibration, thermal cycling, moisture.
You validate “boring details”: wiring, connector, mounting torque, and safe surface temperature.

The #1 buyer mistake

Sizing by “rated watts” on a catalog photo instead of installed watts. A 50W resistor can behave like a 15–25W resistor if it isn’t mounted to metal (or if airflow is poor). Most field failures are thermal: drift, cracked cement, loose mounting, or cooked wiring nearby.

Decision shortcut (use this in meetings)

If it’s automotive ignition or a high-current bypass, think “wirewound + mechanical mounting + heat path.” If it’s LED current trimming, think “stable ohms + temperature rise + wiring losses.” If it’s inrush limiting, think “pulse energy + surge duration + repetition rate” (and consider whether an NTC/MOSFET solution reduces heat).

Where Ballast Resistors Actually Show Up

“Ballast resistor” is one of those keywords that means “current limiting resistor,” but the failure modes change with the application. Don’t pick parts by name—pick by what the resistor is doing in your circuit.

Automotive ignition (classic use)

Limits coil current and protects the ignition system.
Often needs to survive vibration + high ambient.
Selection impact: prioritize mounting and heat.

LED and lamp current trimming

Sets approximate current (especially for “simple” retrofits).
Heat is continuous; enclosure temperature matters.
Selection impact: prioritize stable ohms over temperature.

Inrush limiting / pre-charge

Limits initial surge into capacitors.
Power is “spiky,” driven by pulses and repetition rate.
Selection impact: choose by pulse energy and duty cycle.

Rule: if your resistor is meant to “burn off” real power, treat it like a thermal/mechanical component first—electronics second.

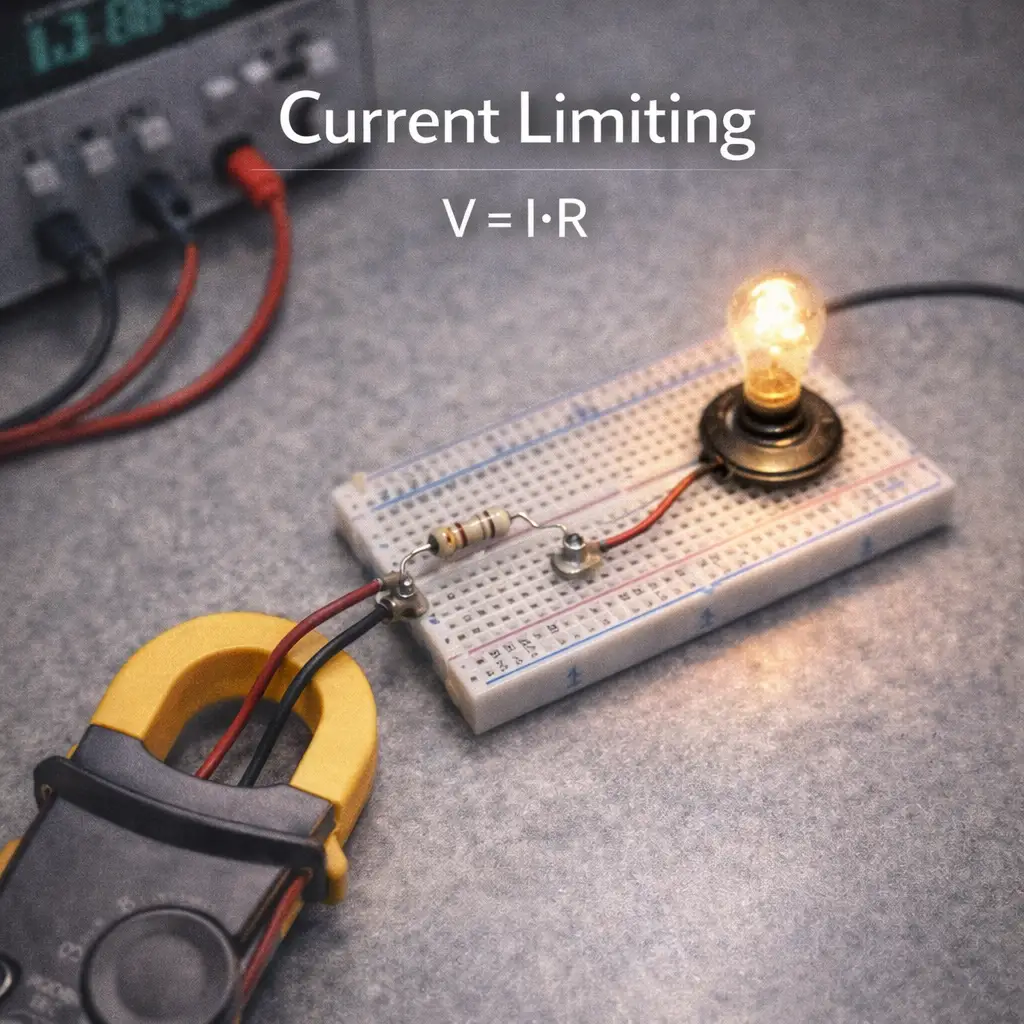

“Current Limiting” Concept (Simple Circuit Bench Scene)

How a Ballast Resistor Works (In Plain Engineering Terms)

A ballast resistor creates a controlled voltage drop so the rest of the circuit sees less voltage and therefore draws less current. The physics is simple, but selection is not—because your load is rarely a perfect resistor.

Two formulas you must respect

Ohm’s law: V = I × R
Heat: P = I² × R (or P = V² / R)

Selection impact: “a little extra current” becomes much more heat because of I².

Why the load ruins simple math

Coils, lamps, and LEDs are non-linear. Coil current depends on dwell/time and inductance; incandescent lamps have a cold/hot resistance ratio; LEDs have a steep I–V curve. A ballast resistor can still work, but you must size using worst-case operating conditions.

Translation for procurement

If your spec only says “ballast resistor, 50W,” suppliers can quote parts that behave wildly differently when installed. A good RFQ includes: ohms, duty cycle, mounting, ambient, allowable surface temp.

How to Size the Resistance (Ohms) Without Guessing

Your resistor value is not “whatever is available.” It is the knob that sets current. The fastest reliable path is: define the target current, define the worst-case voltage, and model what the load consumes so you know what voltage must be dropped across the resistor.

Step-by-step sizing logic

Define the limit current (I_limit): steady-state and any short duration peak you must allow.
Use worst-case supply voltage (V_max): especially in automotive (charging system, transients) or industrial (tolerances).
Estimate load voltage at I_limit: LED string Vf, coil effective voltage, lamp hot-state voltage, etc.
Compute required resistor drop: V_R = V_max − V_load
Compute R: R = V_R / I_limit
Add margin for wiring and connector drops: long harnesses can “help” by dropping voltage (but don’t rely on it).

Common trap: picking R from a bench test

Bench supplies don’t behave like vehicle or plant power. If you sized R at 12.0V and the real system lives at 14.4V, your current rises—and heat rises even faster. Always size from V_max, not “typical.”

When a ballast resistor is the wrong tool

If efficiency matters, or if supply voltage varies widely, a constant-current driver / switching regulator may be the correct answer. Procurement impact: a “cheap” resistor can create system-level costs in heat, enclosure size, and warranty risk.

How to Size Power (Watts) Like You Actually Want It to Survive

Power rating is not a sticker; it’s a promise that depends on temperature rise and mounting. Your job is to estimate the real dissipation and then choose a resistor and installation method that keeps the resistor within safe temperature limits.

Compute steady-state watts

Use P = I² × R at your worst-case steady current. If current varies, use the duty-cycle weighted value: P_avg ≈ Σ (I² × R × duty).

Selection impact: if you don’t know duty cycle, you don’t know watts—so you don’t know reliability.

Handle pulse power (inrush / pre-charge)

Pulses are about energy and repetition. A short surge might be fine once, but not 10 times a minute. In RFQs, ask for pulse or overload capability. In validation, log temperature rise over repeated cycles until it stabilizes.

Thermal reality check

If the resistor can’t shed heat, it will cook itself and everything nearby. Treat mounting metal as a heatsink, keep wiring insulation away from hot bodies, and specify a maximum allowable surface temperature in your build notes.

Practical rule: if your resistor is uncomfortable to touch during testing, it’s telling you something. Don’t “solve” that with thicker gloves—solve it with watts and heat path.

Heat Path Matters (Good vs Bad Mounting Comparison)

Package & Mounting: The Part Everyone Under-Specs

Two resistors with the same ohms and “watts” can perform completely differently depending on construction and mounting. If you want fewer returns and fewer “mystery drift” failures, select package style using environment and heat path first.

Cement / ceramic wirewound (block)

Good for moderate power, easy mounting.
Heat radiates; keep clearance to plastics.
Best for: simple current limiting, bleeders, lamp trimming.

Aluminum-housed (chassis mount)

Designed to bolt to metal for heat sinking.
Performance depends on metal thickness + contact quality.
Best for: high power ballast, automotive bypass, dynamic loads.

Chassis-mount wirewound (with tabs)

High robustness; good for vibration with proper mounting.
Often used where serviceability matters.
Best for: industrial, automotive legacy designs, field replacements.

Mounting checklist (don’t skip)

Heat path: aluminum-housed parts need flat metal contact (consider thermal compound if appropriate for your process).
Fasteners: use locking strategy in vibration environments; loose screws = hot resistor + intermittent faults.
Clearance: keep wiring insulation and plastic housings away from radiant heat zones.
Harness strain relief: prevent lead fatigue, especially on cement blocks and chassis tabs.

Reliability: What “Good” Looks Like Over 1–5 Years

Ballast resistors fail in predictable ways: heat stress, vibration fatigue, corrosion at terminals, and drift over thermal cycling. The fix is not “buy a bigger one” blindly; it’s selecting for the right construction and controlling installation variables.

Thermal cycling & drift

Repeated hot/cold cycles can change resistance slightly and can crack cement bodies. If your design is threshold-sensitive, specify allowable resistance drift and validate with soak testing.

Vibration & lead fatigue

Leads and tabs fatigue when the harness “wiggles” the resistor. Add strain relief and use mounting that prevents the resistor from acting like a lever.

Corrosion & terminals

Many “ballast problems” are actually terminal problems—oxidized connectors, loose crimps, or moisture ingress. Specify terminal style, sealing, and plating requirements.

Procurement note

For production continuity, define acceptable alternates up front. If a substitute changes thermal behavior (even with same ohms/watts), it can change enclosure temperature and cause downstream failures. Alternate qualification should include temperature rise in the installed state.

Ceramic/Cement Wirewound Block Close-Up

Troubleshooting Matrix (Fast, Practical)

If your system “works sometimes,” assume heat and mounting first. The resistor is often the messenger, not the villain.

Symptom	Most likely cause	What to check	Fix / selection change
Resistor discoloration / burning smell	Under-rated thermal installation	Surface temp, mounting contact, airflow, nearby insulation	Lower I or higher R; higher power package; chassis mount to metal
Works cold, fails hot	Thermal drift / connector resistance increases	Measure voltage drop at resistor + connectors over time	Improve terminals; reduce watt density; change mounting
Intermittent, vibration-related	Loose mounting / lead fatigue	Fasteners, strain relief, cracks at lead exits	Add locking; reposition; choose more robust chassis style
Current not limited as expected	Wrong assumptions about load or Vmax	Actual supply V, load I–V behavior, wiring drop	Recalculate from worst-case; consider active current regulation

Field-friendly test tip

Measure voltage across the resistor after 5 minutes and again after 30 minutes at steady load. If the voltage/current drifts, you likely have a thermal/connection issue, not a “mystery electronics” issue.

Recommended Model Codes (Searchable, Vendor-Neutral)

You asked for “recommended part numbers” that are searchable online without naming manufacturers. The model codes below are widely used naming conventions across multiple sellers and listings. Use them as starting points, then lock down the final spec by resistance, tolerance, power, and mounting.

Model code (search term)	Typical form	Typical watt class	Best-fit ballast scenarios	Selection watch-outs
SQP-5W / SQP-10W	Cement (ceramic) wirewound block	5–10W	Small ballast, bleeder, lamp trim, simple current limiting	Radiant heat; keep clearance; verify tolerance and temp rise
RX27-10W / RX27-20W	Cement wirewound block	10–20W	Medium ballast, LED trimming, bleeder, discharge	Different body sizes exist; confirm mounting and lead strength
RX24-25W / RX24-50W / RX24-100W	Chassis / panel mount wirewound	25–100W	High power ballast, industrial dumps, test loads	Installed watt depends on mounting metal and airflow
HS50-10R-J / HS50-1R0-J	Chassis mount wirewound (tabs)	~50W class	Automotive/industrial ballast, rugged replacements	Confirm mounting footprint; verify thermal derating curve
RXLG-50W / RXLG-100W	Aluminum-housed chassis mount (bolt-down)	50–100W	Ballast where you can bolt to metal (best for predictable heat sinking)	Needs a real heat path; use flat metal; control fasteners for vibration

Notes: These codes are commonly searchable online (example listings include SQP cement resistors, HS50 chassis-mount wirewounds, and RX27/RX24/RXLG families). :contentReference[oaicite:0]{index=0}

How to use this list correctly

Treat the model code as a package family, not a guarantee. Your procurement spec should still define: resistance (Ω), tolerance, watt class as installed, operating ambient, mounting method, and allowable surface temperature.

Wiring & Strain Relief (Real-World Harness Detail)

RFQ-Ready Ballast Resistor Checklist (Copy/Paste)

If you want quotes that are actually comparable, include the items below. Otherwise suppliers will guess, and your team pays later in heat and rework.

Electrical requirements

Resistance (Ω) + tolerance
Worst-case supply voltage (Vmax)
Target limit current (steady + peak)
Duty cycle / operating profile
Pulse / surge details (if inrush/pre-charge)

Thermal + mechanical

Ambient temperature range
Mounting method (free air / bolt-to-metal / chassis tabs)
Allowed surface temperature limit
Vibration / shock expectations
Clearance to plastics / wiring

Submit RFQ Browse Resistors Contact Engineering

Place this CTA after the selection logic—not as a generic footer—so readers arrive with a complete spec.

FAQ: Ballast Resistor Selection

What is a ballast resistor used for?

A ballast resistor is used to limit current by creating a controlled voltage drop. Typical uses include ignition coil current limiting, LED/lamp current trimming, and inrush limiting into capacitors. Selection depends on worst-case voltage, duty cycle, and how the resistor is mounted for heat dissipation.

How do I calculate the ballast resistor value (ohms)?

First define the target limit current and the worst-case supply voltage. Estimate the load voltage at that current, then compute the resistor voltage drop: V_R = V_max − V_load. The resistor value is R = V_R / I_limit. Always size from worst-case voltage, not “typical,” and validate with the real harness and operating conditions.

How do I choose the watt rating?

Compute dissipation with P = I² × R at worst-case steady current, then adjust for duty cycle if the load is intermittent. Choose a package and mounting method that can actually remove that heat in your ambient environment. Many “watts” ratings assume ideal mounting or airflow.

Why does the same “50W resistor” run hotter in my enclosure?

Because power rating depends on temperature rise and heat sinking. If airflow is poor or if a chassis-mount resistor isn’t bolted to metal properly, its usable dissipation can drop significantly. Validate temperature rise in the installed configuration and specify a maximum surface temperature.

What package is best for ballast resistor applications?

For higher power and predictable cooling, aluminum-housed chassis-mount resistors bolted to metal are often the best choice. For moderate power and simple assembly, cement wirewound blocks are common but require clearance for radiant heat and good strain relief for leads. Pick based on environment (vibration, ambient) and heat path, not only “watts.”

Which “model codes” are common for ballast resistors?

Common searchable model-code families include cement wirewound blocks like SQP-5W and RX27-10W, chassis/panel wirewounds like RX24-50W, and bolt-down aluminum-housed families like RXLG-50W. Treat these as package families and still specify exact resistance, tolerance, and installed thermal conditions.
