1. What is the STD45P4LLF6AG?

The STD45P4LLF6AG is a P-channel Power MOSFET manufactured by STMicroelectronics, designed using STripFET™ F6 technology. It features a trench gate structure, providing low on-resistance and high performance for various applications, particularly in automotive settings.

2. What are the key specifications of the STD45P4LL6AG?

Drain-Source Voltage (VDS): -40 V; Continuous Drain Current (ID): -50 A; Drain-Source; On-Resistance (RDS(on)): 12 to 20 mΩ (typical 15 mΩ); Gate-Source Voltage (VGS): -18 to 18 V; Gate Threshold Voltage (VGS(th)): -2.5 to -1 V; Power Dissipation: 58 W.

3. What are the applications of the STD45P4LL6AG?

The STD45P4LL6AG is primarily used in automotive applications, including power management systems, motor control, and switching applications. Its low on-resistance and high reliability also make it suitable for industrial applications and other electronic devices requiring efficient power control.

4. What package does the STD45P4LL6AG come in?

This MOSFET is available in a DPAK package (TO-252-3), which is designed for surface mounting, making it easy to integrate into various circuit designs.

5. How does the STD45P4LL6AG compare to other MOSFETs?

Compared to other MOSFETs in its class, the STD45P4LL6AG stands out due to its very low RDS(on) and high avalanche ruggedness. It is specifically designed to meet automotive standards (AEC-Q101), ensuring reliability under demanding conditions.

6. What are the thermal characteristics of the STD45P4LL6AG?

The thermal resistance from junction to case is approximately 2.14 °C/W, and from junction to ambient is about 50 °C/W. The device operates effectively within a temperature range of -55 °C to 150 °C.

7. Is the STD45P4LL6AG RoHS compliant?

Yes, the STD45P4LL6AG is RoHS compliant, meaning it adheres to restrictions on hazardous substances in electronic equipment, making it suitable for environmentally conscious designs.

STMicroelectronics STD45P4LLF6AG - High-Efficiency P-Channel MOSFET for Power Systems

What is STMicroelectronics STD45P4LLF6AG?

The STMicroelectronics STD45P4LLF6AG is a high-performance P-channel MOSFET designed for efficient power management in various applications. As part of STMicroelectronics' extensive range of MOSFETs, this model stands out for its low on-state resistance (Rds(on)), high current-handling capacity, and robust performance under extreme conditions. The STD45P4LLF6AG is ideal for systems requiring efficient power conversion, making it suitable for automotive, industrial, and consumer electronics applications.

STMicroelectronics STD45P4LLF6AG

This MOSFET is built with advanced technology to provide fast switching speeds and low power loss, ensuring high efficiency in power control circuits. Its characteristics, such as a drain-source voltage rating of -40V and a continuous drain current of -45A, make it a versatile component for high-power systems where energy efficiency and thermal management are critical. Whether used in DC-DC converters, motor control circuits, or automotive power systems, the STD45P4LLF6AG excels in providing reliable and long-lasting performance.

Key Features of STMicroelectronics STD45P4LLF6AG

Low On-State Resistance (Rds(on)): With a very low Rds(on) of 0.008Ω, this MOSFET reduces power dissipation, enhancing the overall efficiency of power conversion circuits.

High Drain-Source Voltage: Rated at -40V, it can handle a broad range of high-voltage applications, ensuring stable operation in systems that require robust voltage management.

High Continuous Drain Current: With a continuous drain current of -45A, it is suitable for high-power applications, including automotive and industrial systems.

Low Gate Threshold Voltage: The Vgs(th) of -2V to -4V makes it highly efficient for low-voltage operation, contributing to faster switching and improved energy efficiency.

Fast Switching Capabilities: The STD45P4LLF6AG offers quick response times, making it ideal for dynamic load conditions and fast switching applications.

Compact D2PAK Package: The model is housed in a D2PAK package, ensuring efficient thermal dissipation and compact integration into power systems.

STMicroelectronics STD45P4LLF6AG Specifications

The STD45P4LLF6AG is a P-channel MOSFET designed for a wide range of applications, including power management and automotive systems. Below is the detailed information in a tabular format:

Parameter	Description
Manufacturer	STMicroelectronics
Model	STD45P4LLF6AG
Technology	Power MOSFET
Transistor Type	P-Channel
Voltage Rating (Vds)	-40 V
Current Rating (Id)	-45 A
Rds(on) (Max)	6.5 mΩ @ Vgs = -10 V
Gate Threshold Voltage (Vgs)	-2 V to -4 V
Power Dissipation (Pd)	65 W
Operating Temperature Range	-55°C to +175°C
Package	PowerFLAT™ 6x5
Applications	Power switching, DC-DC converters, motor control, automotive systems, battery management
Features	Low Rds(on), optimized for low gate charge, robust design for high reliability
RoHS Compliance	Yes
Input Capacitance (Ciss)	2870 pF @ Vds = -25 V
Gate Charge (Qg)	50 nC @ Vgs = -10 V
Thermal Resistance (Rth)	Junction-to-case: 2.3°C/W
Lead-Free Status	Lead-free and complies with JEDEC standards
Mounting Type	Surface Mount

Advantages of Using STMicroelectronics STD45P4LLF6AG

The STMicroelectronics STD45P4LLF6AG is a P-channel Power MOSFET that offers several advantages, particularly suited for automotive and high-performance applications. Here are the key benefits:

1. Low On-Resistance

The STD45P4LLF6AG features a very low on-resistance (RDS(on)), typically around 12 mΩ at a gate-source voltage of 10V. This low resistance minimizes power losses during operation, enhancing overall efficiency in power management applications.

2. High Continuous Drain Current

This MOSFET can handle a continuous drain current of up to -50 A, making it suitable for demanding applications that require robust current handling capabilities.

3. Wide Operating Temperature Range

The device operates effectively within a temperature range of -55°C to 150°C, allowing it to function reliably in various environmental conditions, which is critical for automotive applications.

4. High Avalanche Ruggedness

The STD45P4LLF6AG is designed with high avalanche ruggedness, which means it can withstand voltage spikes without failure. This characteristic is essential for protecting circuits in automotive environments where transient conditions are common.

5. Low Gate Charge

With a low gate charge of approximately 65.5 nC, the STD45P4LLF6AG requires less energy to switch on and off, leading to reduced power consumption in driving circuits and improving overall system efficiency.

6. AEC-Q101 Qualification

This MOSFET is AEC-Q101 qualified, ensuring it meets stringent automotive quality standards. This qualification is crucial for components used in automotive applications, where reliability and performance are paramount.

7. Versatile Packaging Options

The STD45P4LLF6AG comes in a DPAK package, which is advantageous for surface mount applications, providing ease of integration into various circuit designs while maintaining good thermal performance.

The STMicroelectronics STD45P4LLF6AG Power MOSFET stands out due to its low on-resistance, high current capacity, wide operating temperature range, and robust design features tailored for automotive applications. These advantages make it an excellent choice for engineers looking to optimize performance and reliability in their designs.

STMicroelectronics STD45P4LLF6AG Applications

The STMicroelectronics STD45P4LLF6AG is a versatile P-channel Power MOSFET that is primarily designed for automotive applications. Here are its key applications:

1. Automotive Systems

Power Management: Utilized in power distribution and management systems, where efficient switching and minimal power loss are critical.

Motor Control: Employed in controlling motors within vehicles, such as electric window lifts and seat adjustments, due to its high current handling capabilities.

2. Switching Applications

DC-DC Converters: Suitable for use in DC-DC converter circuits, where it can efficiently switch power levels while maintaining low losses.

Load Switching: Acts as a switch for various loads in automotive and industrial applications, managing the on/off states effectively.

3. High-Performance Power Supplies

Power Supply Units (PSUs): Integrated into power supply designs that require high efficiency and reliability, especially in compact spaces.

4. Battery Management Systems

Charge/Discharge Control: Functions in battery management systems to control the charging and discharging processes of batteries, ensuring safety and efficiency.

5. Industrial Applications

Industrial Automation: Used in various industrial automation systems where robust performance under varying conditions is necessary.

6. Consumer Electronics

Smart Devices: Can be found in smart devices that require efficient power management solutions.

The STD45P4LLF6AG is particularly well-suited for automotive applications due to its AEC-Q101 qualification, low on-resistance, and high continuous drain current capabilities. Its versatility also extends to industrial and consumer electronics, making it a valuable component across multiple sectors.

STMicroelectronics STD45P4LLF6AG Equivalents

Manufacturer	Model	Channel Type	Vds (Voltage Rating)	Id (Current Rating)	Rds(on) (Max)	Package Type	Key Features
Vishay Siliconix	SI7149DP	P-Channel	-40 V	-50 A	7 mΩ @ Vgs = -10 V	PowerPAK® SO-8	Low Rds(on), enhanced thermal performance
Infineon Technologies	BSC050P03NS3 G	P-Channel	-30 V	-50 A	5 mΩ @ Vgs = -10 V	SuperSO8	Optimized for high-speed switching
ON Semiconductor	FDD5614P	P-Channel	-40 V	-60 A	6 mΩ @ Vgs = -10 V	TO-252 (DPAK)	High current capability, low gate charge
Toshiba	TPH2R10AQ	P-Channel	-40 V	-45 A	2.1 mΩ @ Vgs = -10 V	SOP Advance (5x6 mm)	Ultra-low Rds(on) for high-efficiency applications
Alpha & Omega Semiconductor	AO6402	P-Channel	-40 V	-55 A	8 mΩ @ Vgs = -10 V	DFN 5x6	High power density, suitable for DC-DC converters

The STD45P4LLF6AG from STMicroelectronics can be replaced by several alternatives, including models from Vishay, Infineon, ON Semiconductor, Toshiba, and Alpha & Omega Semiconductor. While choosing an equivalent, consider key parameters like voltage and current ratings, Rds(on), package type, and thermal characteristics to ensure compatibility with your application. Models like the Vishay SI7149DP or Toshiba TPH2R10AQ offer similar or enhanced performance in compact form factors. Always verify the specific requirements of your circuit before substituting components.

STMicroelectronics STD45P4LLF6AG Compared to Other P-channel MOSFETs

The STD45P4LLF6AG from STMicroelectronics is a P-channel MOSFET notable for its specifications and performance in various applications, particularly in automotive settings. Here’s a detailed comparison of the STD45P4LLF6AG with other P-channel MOSFETs, focusing on key parameters and characteristics.

Comparison with Other P-channel MOSFETs

Feature	STD45P4LLF6AG	IRFR7446TRPBF	DMP4015SK3Q-13
Vds (Max)	-40 V	-40 V	-30 V
Id (Continuous)	-50 A	-56 A	-30 A
Rds(on)	12 mΩ	10 mΩ	15 mΩ
Vgs(th)	-2.5 to -1 V	-2 to 0 V	-2 to 0 V
Package Type	DPAK	DPAK	TO-220
Gate Charge (Qg)	65.5 nC	50 nC	70 nC
Thermal Resistance (Rth(j-c))	2.14 °C/W	1.8 °C/W	3.0 °C/W

Performance Insights

On-Resistance: The STD45P4LLF6AG offers competitive on-resistance compared to other P-channel MOSFETs, making it suitable for applications requiring efficient power management. Its low Rds(on) contributes to reduced conduction losses, which is critical in high-current scenarios.

Current Handling: With a continuous drain current rating of -50 A, it stands well against competitors like the IRFR7446TRPBF, which can handle up to -56 A, making the latter slightly more robust for high-current applications.

Gate Charge: The gate charge of STD45P4LLF6AG is slightly higher than some competitors, which may affect switching speeds in high-frequency applications. However, its low on-resistance compensates for this in many use cases.

Thermal Performance: The thermal resistance of the STD45P4LLF6AG is reasonable but may be less favorable compared to some alternatives under continuous high-load conditions. Higher thermal resistance can lead to increased junction temperatures during operation.

Application Suitability

The STD45P4LLF6AG is particularly designed for automotive applications and meets AEC-Q101 standards, ensuring reliability in harsh environments. Its low gate drive power loss and high avalanche ruggedness make it a solid choice for automotive and industrial switching applications where efficiency and reliability are paramount.

In summary, while the STD45P4LLF6AG holds its own against other P-channel MOSFETs in terms of key specifications like on-resistance and current handling, potential users should consider specific application requirements such as thermal management and switching frequency when selecting the most appropriate device.

Working Principle of STMicroelectronics STD45P4LLF6AG

The STMicroelectronics STD45P4LLF6AG is a Power MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) designed for high-efficiency power management applications. Here’s a detailed explanation of its working principle:

STD45P4LLF6AG

Basic Structure

Gate: The control terminal that regulates the flow of current. Applying a voltage to the gate creates an electric field that allows current to flow between the drain and the source.

Source: The terminal where current enters the MOSFET.

Drain: The terminal where current exits the MOSFET.

Operation Modes

Enhancement Mode: The STD45P4LLF6AG operates in enhancement mode, meaning it is normally off when no voltage is applied to the gate. When a positive voltage is applied to the gate relative to the source, it induces a conductive channel between the source and drain, allowing current to flow.

Threshold Voltage (Vgs(th)): This is the minimum gate-source voltage (Vgs) required to turn the MOSFET on. For the STD45P4LLF6AG, this value is typically around 2 to 4V.

On-State Resistance (Rds(on)): Once turned on, the MOSFET exhibits a low resistance path between the drain and source, minimizing power loss during conduction. The STD45P4LLF6AG has a low Rds(on), which enhances its efficiency in power applications.

Key Features

High Voltage Rating: The STD45P4LLF6AG can handle high voltages (up to 45V), making it suitable for various applications including DC-DC converters and motor drives.

High Current Capability: With a maximum continuous drain current rating of 45A, it can efficiently manage significant power loads.

Fast Switching Speed: This MOSFET can switch on and off rapidly, which is essential for high-frequency applications.

Applications

The working principle of this MOSFET makes it ideal for:

Power Supply Circuits: Used in switch-mode power supplies (SMPS) for efficient voltage regulation.

Motor Control: Employed in driving motors where efficient switching is crucial.

LED Drivers: Utilized in circuits that require precise control over LED brightness.

STMicroelectronics STD45P4LLF6AG Datasheet

STMicroelectronics STD45P4LLF6AG Datasheet

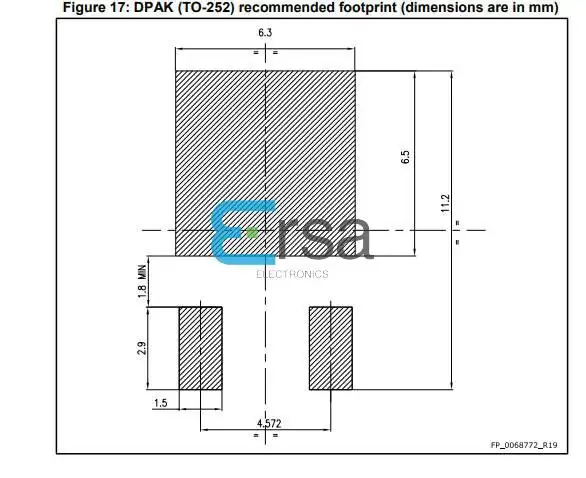

STMicroelectronics STD45P4LLF6AG Package

Conclusion of STMicroelectronics STD45P4LLF6AG

The STMicroelectronics STD45P4LLF6AG is an excellent choice for high-efficiency power systems requiring reliable performance under demanding conditions. Its low on-state resistance and high current-handling capacity make it a versatile component in automotive, industrial, and consumer electronic applications. Whether used in power converters, motor control, or automotive power systems, this MOSFET excels at providing energy-efficient solutions for modern electronic designs.
