Capacitor Thin Film Temperature Sensor Guide & Design

Q: What is a capacitor thin film temperature sensor used for?

A capacitor thin film temperature sensor is used when you want small size, repeatability, and integration-friendly temperature measurement. It is common in precision electronics, medical systems, and high-reliability designs where long-term stability matters.

This article is vendor-neutral: we mention popular model numbers but avoid manufacturer names.

Capacitor Thin Film Temperature Sensor

1) One-Screen Answer Box: What to buy & why

A capacitor thin film temperature sensor turns temperature into a small capacitance change (ΔC). To build a setup that’s stable in real life (humidity, EMI, enclosure heat, and that one engineer who touches everything), you typically need three blocks:

The sensor element: a thin-film capacitor structure (parallel plate or interdigitated) whose dielectric constant shifts with temperature.
Capacitance readout: a CDC (capacitance-to-digital converter) or oscillator/charge-timing method that can resolve tiny ΔC.
The boring reliability parts: guard rings, shielding, clean power, controlled leakage, and calibration storage.

Practical “part number” starting points (models only)

CDC / capacitive front end models: AD7745, AD7746, FDC1004, FDC2212, PCAP02
MCU choices for calibration + filtering: any controller with stable timing and non-volatile storage

If you do only one thing: treat the sensor node like an RF input. A capacitor thin film temperature sensor is honest — it will faithfully report every parasitic you forgot to budget.

2) What is a capacitor thin film temperature sensor (and what it is not)

A capacitor thin film temperature sensor is a temperature sensor whose output is a change in capacitance rather than resistance. It typically uses a thin-film dielectric (oxide, nitride, polymer, or ceramic-like film) sandwiched between electrodes.

What it is

A capacitive temperature sensor built using thin-film deposition
Often compatible with CMOS/MEMS processes (small, repeatable, integrable)
Read using a CDC or timing/oscillator method

What it is not

Not an NTC/PTC thermistor (resistance-based)
Not an RTD (metal resistance temperature detector)
Not a diode or bandgap temperature sensor
Not a big “discrete” capacitor you glue to a board and call it science

Cross-Section Concept (Thin-Film Stack)

3) How it works: from dielectric physics to digital bits

The core relationship behind a capacitor thin film temperature sensor is the capacitance equation:

Capacitance (what changes with temperature)

C = ε₀ × εᵣ × A / d
Temperature typically shifts εᵣ (dielectric constant) and sometimes d (effective thickness via thermal expansion or stress).

3.1 Why “thin film” is the plot twist that makes it work

Thin films let you control thickness and material properties extremely well, which improves repeatability and reduces unit-to-unit chaos. That’s why a capacitor thin film temperature sensor often behaves more like an IC block than a “hand-assembled sensor.”

3.2 What the electronics actually measure

The CDC doesn’t measure temperature directly — it measures capacitance (or time/frequency that depends on capacitance). Then your firmware maps capacitance to temperature using calibration and compensation. Simple concept, picky implementation.

4) Thin-film materials & structures

The dielectric is the “main character” inside a capacitor thin film temperature sensor. Common thin-film dielectric families include:

Oxides (e.g., SiO₂, Al₂O₃): stable, process-friendly
Nitrides (e.g., Si₃N₄): robust, good barrier properties
Polymer thin films: flexible substrates, wearable formats (with more humidity sensitivity)
High-k / ferroelectric-like films: higher sensitivity, but potentially more nonlinearity and aging complexity

Common electrode geometries

Parallel plate: predictable, strong capacitance per area
Interdigitated electrodes (IDE): planar, IC-friendly, good for integration

Microfabrication / Lab Scene (Process Vibe)

5) Electronics: CDC readout and signal integrity

A capacitor thin film temperature sensor output is usually a small ΔC riding on top of parasitic capacitance from traces, connectors, humidity, and the laws of physics. Your readout method decides whether you get temperature… or a haunted house.

5.1 Common readout methods

CDC (capacitance-to-digital converter): direct, stable, easiest to productize
RC timing: measure charge/discharge time; simple but sensitive to leakage
Oscillator-based: convert C to frequency; good for some architectures
Charge-balance / sigma-delta: strong noise shaping; common in precision CDCs

5.2 Popular CDC / front-end model numbers (no vendor names)

Model	Why engineers use it	Typical fit
AD7745	High-resolution CDC for small capacitance changes	Precision capacitive sensing
AD7746	CDC with strong resolution and stable measurement approach	Sensor front ends & lab-grade nodes
FDC1004	Multi-channel capacitive measurement	Multi-sensor arrays & scanning
FDC2212	Frequency-based measurement class suited to capacitive sensing	Oscillator-style capacitive architectures
PCAP02	Time/charge measurement class used for precision capacitive sensing	Capacitance measurement and timing conversion

The CDC is only half the story. The other half is layout: leakage paths, shielding, and grounding determine whether your capacitor thin film temperature sensor behaves like an instrument or a mood ring.

6) Key specifications that actually matter

Temperature coefficient of capacitance (TCC)

TCC is the slope: how much the capacitance changes per °C. Higher TCC can simplify readout, but check linearity and stability.

Linearity across the intended range

Many capacitor thin film temperature sensor structures are quite linear in a defined range, which reduces calibration complexity.

Long-term drift / aging

Thin films can be very stable, but humidity, contamination, and mechanical stress can add apparent drift through parasitics.

Parasitic sensitivity (system-level)

Your sensor might be stable, but your PCB leakage isn’t. Guarding and cleanliness are often the real performance limiters.

Capacitance Readout (CDC Front-End Focus)

7) PCB & mechanical integration: guard rings and reality

This is the part where good designs become great, and “works on the bench” becomes “works in the field.” A capacitor thin film temperature sensor is extremely sensitive to parasitics — which means your layout is part of the sensor.

7.1 Guard rings (a.k.a. “stop the leakage story arc”)

Use driven guards around high-impedance sensor nodes
Keep guard traces continuous and close to sensor routes
Prefer short traces and stable dielectric materials

7.2 Symmetry and cleanliness

Route sensor electrodes symmetrically (especially for differential capacitive measurement)
Keep flux residue and contamination off the sensor region
Consider conformal coating if humidity is a factor (test before committing)

A practical layout mantra

Keep it short, keep it symmetric, keep it guarded, keep it clean. Your capacitor thin film temperature sensor will reward you with stable numbers instead of interpretive dance.

8) Calibration & software: capacitance → temperature

The CDC gives you capacitance-related data; users want degrees. Calibration is the translator in your story.

8.1 Two-point calibration (the minimum viable truth)

Measure sensor output at a known temperature T1 (store C1)
Measure sensor output at a second known temperature T2 (store C2)
Compute slope and offset
Convert new readings using linear mapping

8.2 Multi-point calibration (when you care about nonlinearity)

For wider ranges or higher accuracy, use multiple calibration points and fit a polynomial or piecewise linear model. This is common in precision systems using a capacitor thin film temperature sensor.

8.3 Filtering (don’t average your way into lag)

Median filter for spike removal
EMA (exponential moving average) for smooth display
Keep a less-filtered stream for control loops

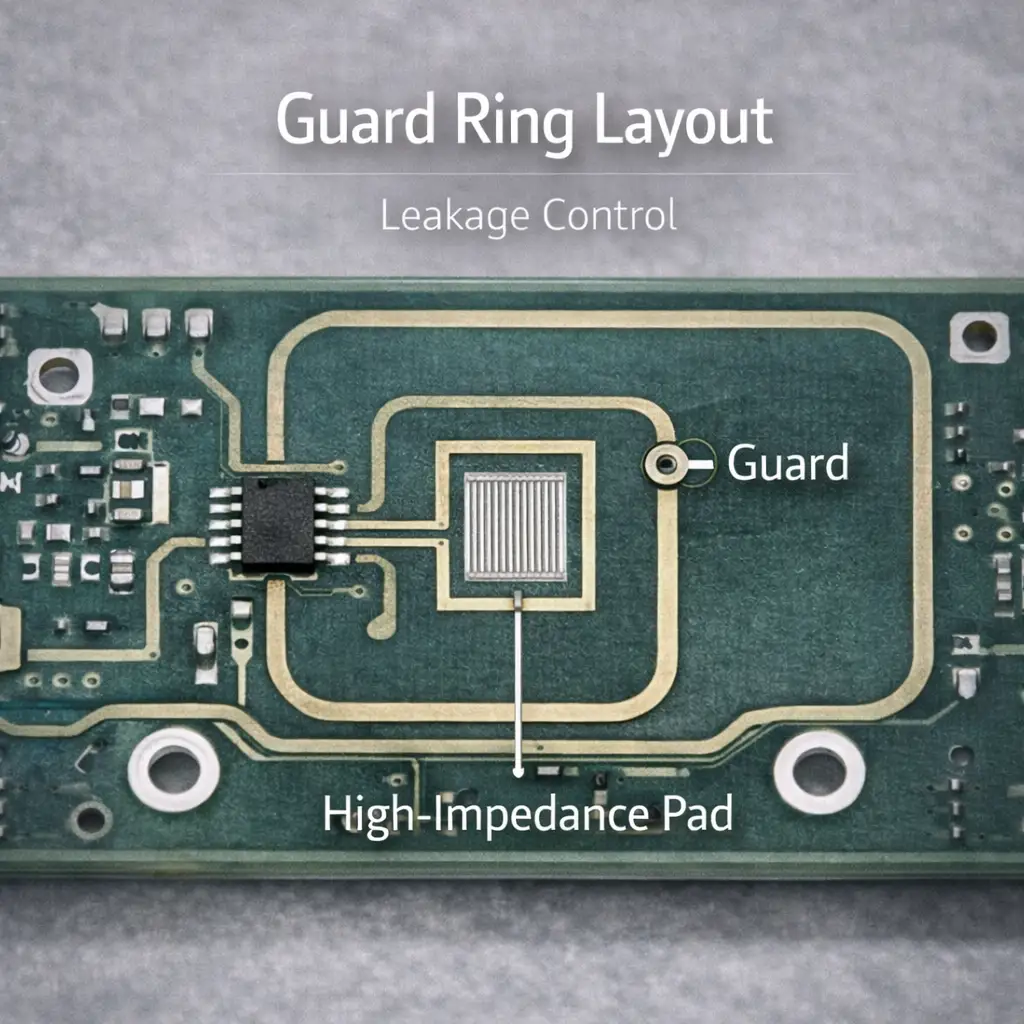

Guard Ring Layout (Top-Down PCB)

9) Noise, drift, humidity, EMI: villains & countermeasures

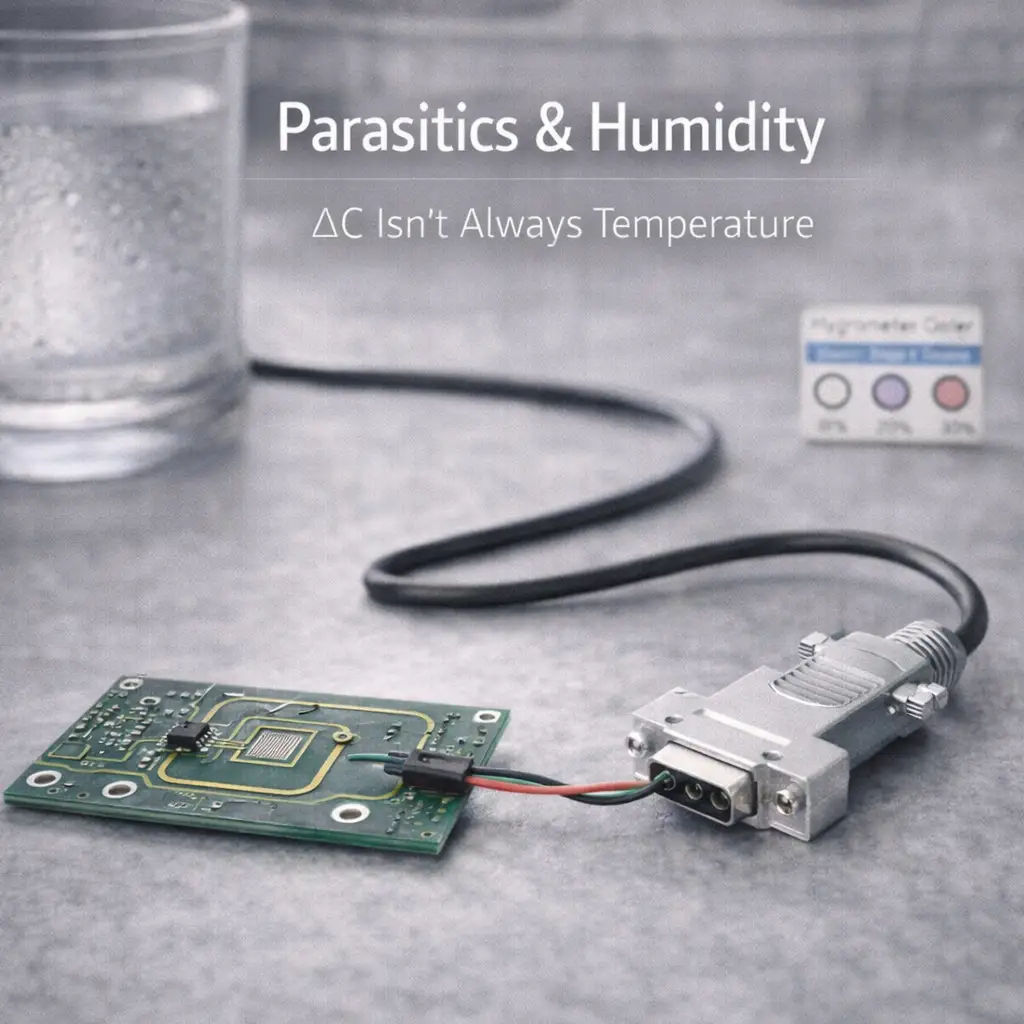

Villain: humidity & leakage

Humidity changes surface conductivity and dielectric behavior. Countermeasures: guard rings, cleanliness, conformal coating, sealed enclosure.

Villain: EMI and switching edges

Capacitive nodes are antennas. Countermeasures: shielding, routing discipline, slower edges, separation from switch nodes, solid ground strategy.

Villain: mechanical stress

Bending and stress can change geometry and parasitics. Countermeasures: mechanical decoupling, rigid mounting, avoid PCB flex hotspots.

Villain: power & reference instability

CDC performance depends on stable references and clocks. Countermeasures: clean rails, good decoupling, stable clocking, partition analog/digital.

The capacitor thin film temperature sensor is usually not the liar. The system is. Build the system like you mean it.

10) Applications: where this sensor shines

A capacitor thin film temperature sensor excels when you need small size, stability, and integration:

IC-level thermal monitoring and compensation
Medical devices where repeatability and stability matter
Aerospace and high-reliability electronics
Wearables and flexible electronics (with good humidity strategy)
Precision lab instruments and calibration nodes
Battery thermal mapping and localized heat tracking

11) Reference designs & popular model numbers (no vendor names)

Design A: Thin-film capacitive sensor + CDC (recommended)

Use case: most product designs where stability and repeatability are required.

CDC models: AD7745, AD7746, FDC1004, FDC2212, PCAP02
Firmware: calibration table, filtering, diagnostics
Layout: short traces, guards, shielding, clean sensor region

Design B: RC timing (simple but sensitive)

Use case: cost-driven designs where you control environment and can tolerate more drift risk.

Measure charge/discharge time with MCU timer capture
Strong dependence on leakage and humidity: use guarding and coating
Best for short interconnects and controlled enclosures

Reusable BOM checklist

Capacitor thin film temperature sensor element (parallel plate or IDE)
CDC or timing front-end
Guard ring + shielding strategy
Clean power regulation and decoupling
Calibration storage (MCU flash or external EEPROM)
Environmental protection (coating, sealing) if humidity is present

12) FAQ: capacitor thin film temperature sensor questions people actually ask

Q1) What is a capacitor thin film temperature sensor used for?

A capacitor thin film temperature sensor is used when you want small size, repeatability, and integration-friendly temperature measurement. It’s common in precision electronics, medical systems, and high-reliability designs where long-term stability matters.

Q2) Why choose a capacitor thin film temperature sensor instead of a thermistor?

Thermistors are easy and sensitive, but they can drift and require careful linearization. A capacitor thin film temperature sensor can offer better repeatability and IC-process compatibility, with low self-heating, especially in integrated or harsh environments.

Q3) What electronics do I need to read a capacitor thin film temperature sensor?

Most designs use a CDC (capacitance-to-digital converter) such as AD7745, AD7746, FDC1004, FDC2212, or PCAP02. You can also use RC timing or oscillator methods, but CDCs are usually easier to make stable and repeatable.

Q4) Why is my capacitive temperature reading drifting over time?

Drift is often caused by humidity, contamination, leakage paths on the PCB, or mechanical stress changing parasitic capacitance. Countermeasures include guard rings, cleaning the sensor region, conformal coating, sealing the enclosure, and stable power/clocking.

Q5) How do guard rings help a capacitor thin film temperature sensor?

Guard rings reduce leakage currents and stabilize parasitic capacitance by surrounding high-impedance sensor nodes with a driven reference potential. For many capacitor thin film temperature sensor systems, guard rings are the difference between “stable measurement” and “mystery capacitance.”

Q6) Can I measure a capacitor thin film temperature sensor with an MCU timer (no CDC)?

Yes, using RC timing or oscillator frequency measurement, but it is more sensitive to leakage, humidity, and reference instability. For product-grade stability, a CDC approach is usually the safer choice.

Q7) How do I calibrate a capacitor thin film temperature sensor?

Two-point calibration is the minimum: record output at two known temperatures and map capacitance to temperature with a linear fit. For wider ranges or better accuracy, use multi-point calibration and fit a polynomial or piecewise curve.

Q8) What are the biggest design mistakes with capacitor thin film temperature sensors?

The top mistakes are long unguarded traces, dirty flux residue near the sensor node, poor shielding, routing near switching nodes, and ignoring humidity effects. A capacitor thin film temperature sensor will faithfully measure all of those problems.

13) Wrap-up: your capacitor thin film temperature sensor system, but stable

A capacitor thin film temperature sensor is deceptively simple: temperature shifts a dielectric property, capacitance changes, electronics read it, software maps it to degrees. The hard part isn’t the formula — it’s the parasitics.
