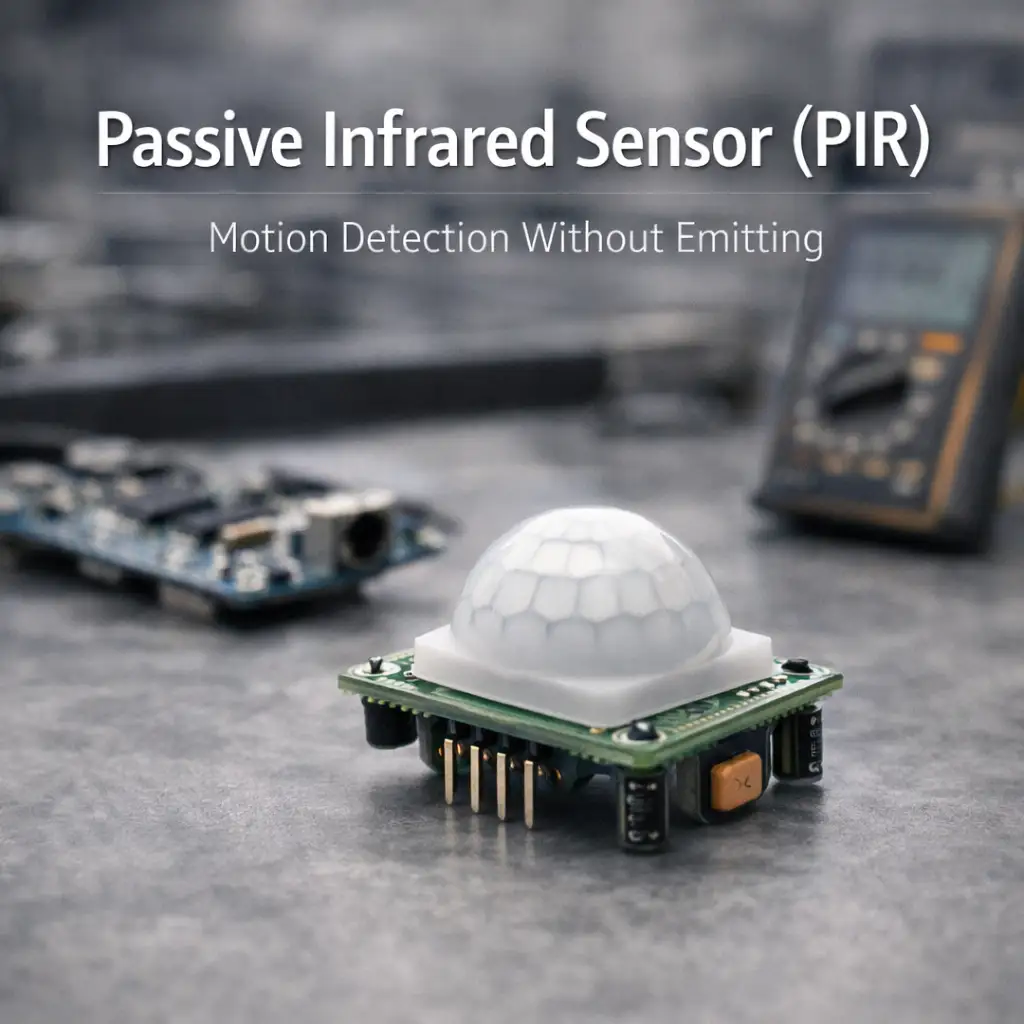

Passive Infrared Sensor (PIR)

1) One-Screen Answer Box: What to buy & why

If you want a passive infrared sensor setup that works on the first try (and still behaves after the first HVAC cycle, sunlight glance, and “why is the cat setting it off?” moment), you typically need three things:

The PIR sensor element + Fresnel lens: this is where the passive infrared sensor “sees” motion by segmenting the world into zones.
The signal conditioning block: high-impedance buffer + amplifier + threshold logic (often integrated on popular modules).
The boring-but-essential reliability pieces: clean power, decoupling, EMI control, sensible placement, and stable mechanical mounting.

Practical selection cheat sheet

Fast prototype / lighting / alarms → a passive infrared sensor module class like HC-SR501 (adjustable)
Ultra-compact → passive infrared sensor module class like HC-SR505 (tiny)
Low-power, short-range → passive infrared sensor module class like AM312
Custom product design → bare passive infrared sensor elements such as EKMB/EKMC series + your own analog front-end

TL;DR: a passive infrared sensor is simple, but it becomes truly reliable when you treat it like a real system, not a magic “motion pin.”

2) What is a passive infrared sensor (and what it is not)

A passive infrared sensor converts changes in thermal radiation into an electrical signal that you can interpret as motion. It’s “passive” because it doesn’t emit anything. It’s basically the character in a hit TV series who never speaks much, but notices everything.

What a passive infrared sensor is

A thermal motion detector optimized for humans (8–14 µm IR band)
A change detector: it responds to movement across zones more than absolute temperature
A privacy-friendly presence sensor for lights, alarms, occupancy, and low-power IoT

What a passive infrared sensor is not

Not a thermal camera (no images)
Not radar (doesn’t see through walls)
Not a perfect “human detector” under every sunlight/HVAC/pet condition

One-Screen Answer Box (What to Buy & Why)

3) How a passive infrared sensor works (physics → output)

3.1 Infrared radiation: the invisible background character

Everything above absolute zero emits infrared radiation. Humans emit strongly in the 8–14 µm band, which is why a passive infrared sensor is so good at “human motion” without caring about visible light.

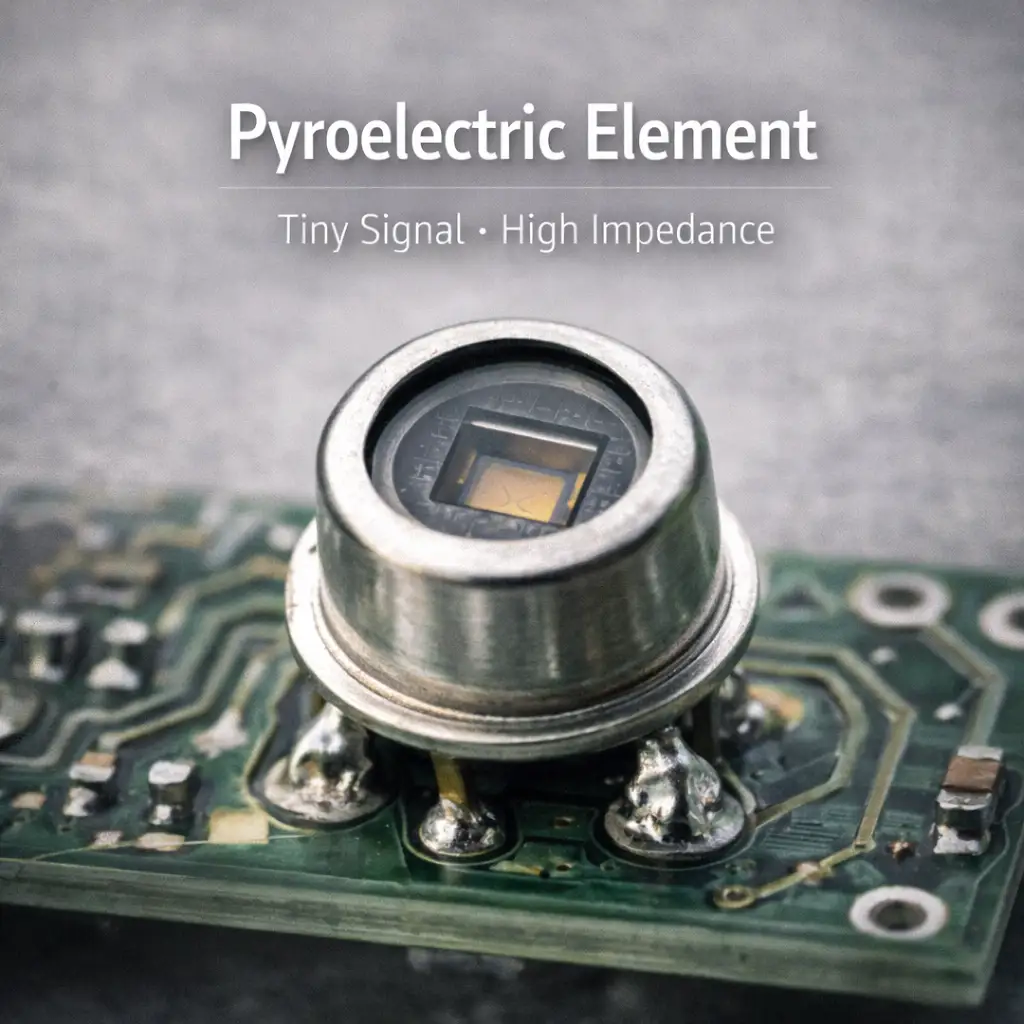

3.2 The pyroelectric element: where the magic happens

At the heart of a passive infrared sensor is a pyroelectric material that generates a tiny charge when the incoming IR changes. Key detail: a passive infrared sensor reacts to change, so a stationary person can fade into the background over time.

3.3 Dual-element trick: cancel the boring stuff

Most passive infrared sensor elements use two sensing areas wired in opposite polarity so common temperature drift cancels out. Motion across zones produces a positive/negative pulse pair — the signature waveform your module turns into a logic output.

3.4 Fresnel lens: turning space into zones

That white dome lens isn’t a fashion choice. It segments the field of view into zones and focuses IR onto alternating sensor elements. In other words: the Fresnel lens is what makes a passive infrared sensor actually useful at human-scale distances.

4) Passive infrared sensor vs other motion sensors

In the motion-detection cinematic universe, the passive infrared sensor shares the stage with radar, ultrasonic, and camera-based systems. PIR wins when you want low power, low cost, privacy-friendly detection, and “good enough” human motion sensing.

Sensor type	How it works	Pros	Cons
Passive infrared sensor (PIR)	Detects IR change (warm motion)	Low power, low cost, privacy-friendly	Not great for stationary presence; sensitive to environment
Microwave (Doppler)	Emits RF, measures motion via Doppler	Can detect through some materials	Higher power, more false positives
Ultrasonic	Emits sound waves, senses movement	Detects small motion in some cases	Sensitive to airflow/noise
Camera + AI	Vision inference	Rich information	Power hungry, privacy concerns, higher cost/complexity

“What It Is / What It Isn’t” Split Scene

5) Inside a passive infrared sensor module: the supporting cast

The raw passive infrared sensor element outputs a tiny signal (think “whispering in a stadium”). So PIR modules add a signal chain that does the heavy lifting.

Typical PIR signal chain

Pyroelectric passive infrared sensor element
High-impedance buffer (often JFET input stage)
AC-coupled amplification (gain + band-limiting)
Comparator / window detect
Digital output (sometimes open collector)

Popular module models you’ll see in the wild include HC-SR501, HC-SR505, AM312, and bare elements like EMKB/EKMC series. Each “class” of passive infrared sensor hardware is a different trade between size, adjustability, range, and power.

6) Key specifications that actually matter

PIR datasheets can feel like fantasy lore appendices. Here’s what changes your real-life outcomes.

Detection range

Typical passive infrared sensor modules span ~3–12 m depending on lens and gain. Range is as much optics and placement as it is electronics.

Field of View (FOV)

Usually 90°–120° or more. Fresnel lens pattern defines zones and strongly affects detection quality.

Trigger mode

Retriggerable stays active while motion continues; non-retriggerable pulses once. Pick based on whether your system wants “events” or “presence-ish.”

Supply & current

Many passive infrared sensor modules accept 3–12 V. Standby currents can be tiny (often tens to hundreds of µA), which is why PIR is battery-friendly.

Inside PIR: Pyroelectric Element Macro

7) Designing with a passive infrared sensor (real circuits)

7.1 Power: your passive infrared sensor’s mood ring

A passive infrared sensor hates noisy rails. If you share power with motors, DC-DC converters, or chatty radios without filtering, your PIR will trigger like it’s auditioning for a thriller series.

Use an LDO for the PIR rail (or heavily filter switching rails)
Place decoupling near the module (0.1 µF + a bulk cap)
Separate noisy digital/actuator grounds from the PIR return where possible

7.2 MCU interfacing: GPIO + interrupts

Most passive infrared sensor modules output a simple logic signal. Connect it to a GPIO interrupt and let the MCU sleep until motion happens. That’s the classic low-power pattern.

A practical low-power flow

MCU in deep sleep
Passive infrared sensor stays awake
PIR output triggers MCU wake interrupt
MCU logs event / turns on light / sends packet
MCU returns to sleep

7.3 Layout & wiring: treat the PIR input like it’s sensitive

Even if you buy a module, cable routing matters. Keep PIR signal lines away from switching nodes, relay coils, and high-current loops. Use strain relief. Mechanical vibration can look like motion events in some setups.

8) Tuning & calibration: sensitivity without drama

A passive infrared sensor is intentionally sensitive to change. Tuning is the art of letting humans trigger it while everything else doesn’t.

8.1 Sensitivity

Too high: false triggers from sunlight, HVAC, reflections, pets
Too low: missed detection at range or off-axis movement

8.2 Time delay

Delay controls how long the output stays active. Long delays make lights feel stable; short delays make event systems feel responsive.

8.3 Placement: your biggest “calibration knob”

Mount away from vents, heaters, direct sun, and reflective hot surfaces. A passive infrared sensor is basically a thermal change detector, so thermal chaos equals logic chaos.

Fresnel Lens Close-Up (Zones Explained)

9) Noise & false triggers: villains and counterspells

Villain: sunlight & hot reflections

Shield from direct sun, avoid aiming at windows, reduce sensitivity, and consider lens zoning changes.

Villain: HVAC airflow

Move away from vents. Airflow creates rapid thermal gradients that can trigger a passive infrared sensor.

Villain: electrical noise

Use clean rails, good decoupling, keep cables short, route away from switching nodes, add RC filtering if needed.

Villain: pets

Use appropriate lens/zone patterns, mount height, and sensitivity tuning. Some builds need “pet-immune” optics.

10) Applications: where the passive infrared sensor shines

A passive infrared sensor appears in more products than cameo characters in a blockbuster franchise. Common uses include:

Motion-activated lighting
Alarm systems and intrusion detection
Smart thermostats and occupancy-based control
Automatic doors and hands-free triggers
Battery-powered IoT presence detection
Energy-saving systems (restrooms, corridors, warehouses)

If your system needs to answer “is someone moving here?” with minimal power, a passive infrared sensor is often the best first step.

Field of View (FOV) Visualization (Realistic Scene)

11) Troubleshooting a passive infrared sensor system: fast diagnosis matrix

Symptom	Likely cause	First fix
Constant triggering	Sunlight/HVAC/too much gain/noisy supply	Reduce sensitivity, relocate, clean power, add decoupling
No detection	Wrong orientation/too low gain/blocked lens	Check lens direction, increase sensitivity, verify output level
Triggers near motors/relays	EMI coupling or rail dip	Separate wiring, add snubbers, improve filtering and grounding
Works on bench, fails in enclosure	Thermal gradients, internal reflections, airflow patterns	Reposition, add shielding, reduce sensitivity, redesign vents/optics

Field checklist (the “it only fails in the real world” edition)

Sunlight angles at different times of day
HVAC cycles and air movement
Nearby heaters, hot pipes, or reflective surfaces
Long cables near switching supplies or relays
Pets, fans, curtains, plants (yes, really)

12) Reference designs & popular models (no vendor names)

Design A: Classic PIR module + MCU GPIO

Use case: smart lighting, alarms, occupancy events, fast prototypes that become products.

Passive infrared sensor module: HC-SR501 / HC-SR505 / AM312
MCU: any low-power controller with interrupt-capable GPIO
Essentials: LDO rail (or filtered supply), local decoupling, sensible placement

Design B: Bare PIR element + custom analog front-end

Use case: custom industrial/consumer products where you control optics, tuning, power, and EMI robustness.

Passive infrared sensor element: EKMB/EKMC series class
Optics: choose Fresnel lens zoning for your detection pattern
Analog front end: high-impedance input, band-limited gain, threshold logic, stable timing
Robustness: filtering, ESD protection at connectors, enclosure thermal design

Reusable BOM checklist (generic)

Passive infrared sensor (module or element) + Fresnel lens
Clean power: LDO or filtered rail + decoupling
Signal integrity: routing rules and cable discipline
Firmware: interrupt handling + debounce/time gating
Mechanical: placement away from thermal chaos and airflow

13) FAQ: passive infrared sensor questions people actually ask

Q1) Why does my passive infrared sensor trigger randomly?

Random triggers usually come from thermal changes (sunlight, HVAC airflow, heaters) or power/EMI noise. Reduce sensitivity, relocate away from vents/windows, improve decoupling, and keep wiring away from switching nodes and relays.

Q2) Can a passive infrared sensor detect a stationary person?

Not reliably. A passive infrared sensor responds to changes in IR, so it’s strongest for motion across zones. For true stationary presence, combine PIR with another method (e.g., radar, pressure, or periodic micro-motion sensing).

Q3) What’s the difference between a PIR sensor and a microwave motion sensor?

A passive infrared sensor detects thermal motion (IR changes). Microwave sensors emit RF energy and detect motion via Doppler. Microwave can see motion through some materials but uses more power and can trigger on non-human motion more easily.

Q4) Why does my passive infrared sensor fail outdoors?

Outdoors is chaos: sun, wind, fast ambient temperature swings, and moving hot/cold backgrounds. Use shielding, weather-rated enclosures, optics designed for outdoor zoning, and tune sensitivity conservatively. In some cases, PIR outdoors is best paired with another sensor.

Q5) Which passive infrared sensor module models are most common?

You’ll commonly see PIR module models like HC-SR501, HC-SR505, and AM312, plus bare PIR elements like EKMB/EKMC series for custom designs. Choose based on size, adjustability, range, and power.

Q6) How do I connect a passive infrared sensor to a microcontroller?

Most passive infrared sensor modules provide a digital output. Connect it to a GPIO input (preferably interrupt-capable), add stable power + decoupling, and handle events with time-gating in firmware to avoid chatter.

Q7) Does a passive infrared sensor work through glass?

Often poorly. Many types of glass attenuate IR in the band a passive infrared sensor uses. If your PIR sits behind glass, sensitivity and detection range can drop significantly.

Q8) How do I reduce false triggers without missing real motion?

Use a layered approach: adjust sensitivity, improve placement, stabilize the power rail, add firmware time-gating (ignore triggers within X ms), and choose a Fresnel lens zoning pattern that matches the space (hallway vs room vs doorway).

14) Wrap-up: your passive infrared sensor system, but stable

A passive infrared sensor is deceptively simple: it watches thermal changes and outputs motion events. Building a great PIR product is where the story gets interesting — optics, power, placement, and firmware decide whether your sensor behaves like a hero or a liability.

PIR is a system: optics + element + electronics + placement + firmware.
Most “PIR problems” are environment problems: HVAC, sunlight, reflections, pets, and thermal gradients.
Use proven models (HC-SR501 / HC-SR505 / AM312 / EKMB/EKMC class) and focus your effort on reliability and tuning.
